5 Function blocks

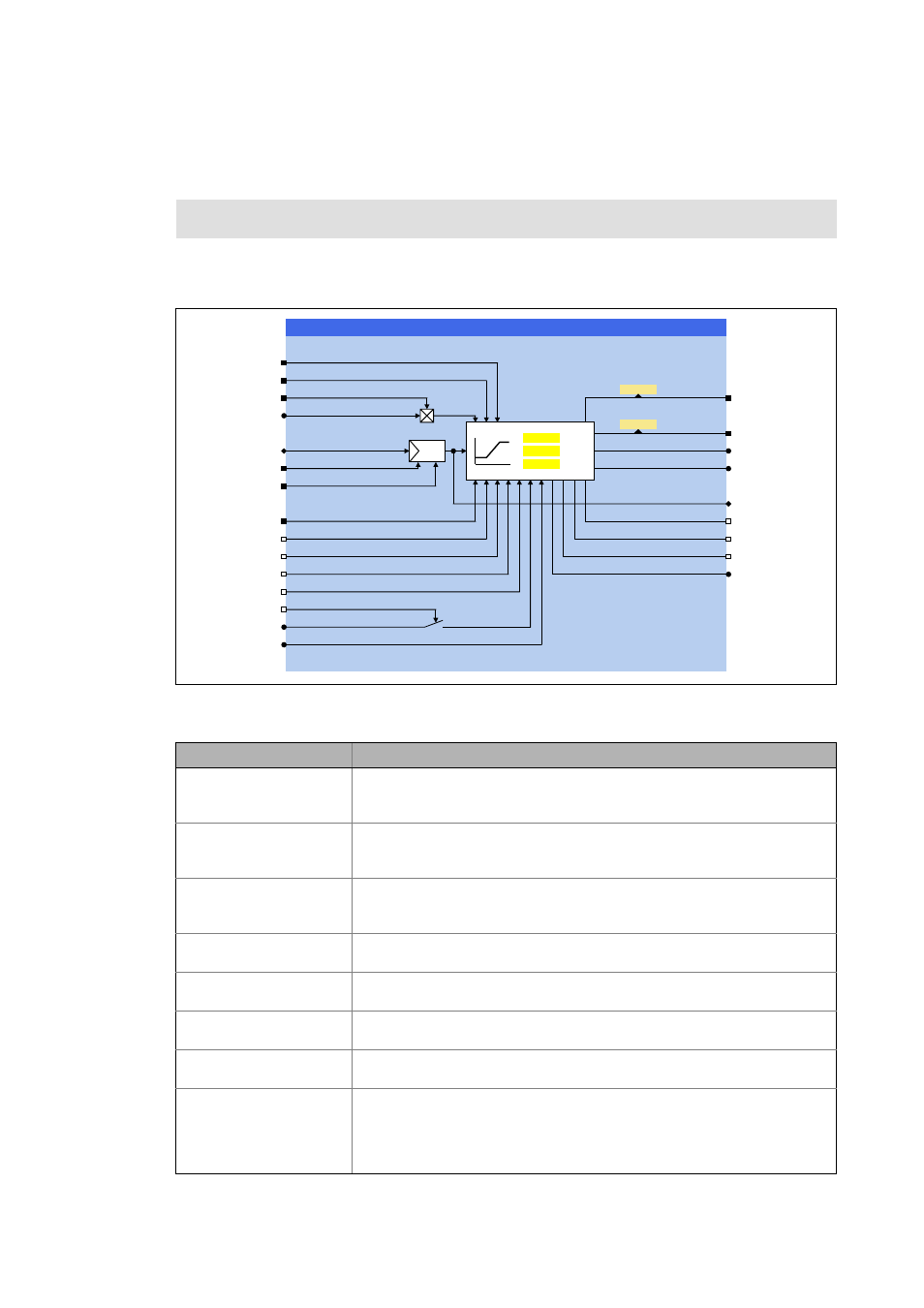

5.205 L_WndCalcDiameter - diameter calculation
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.205 L_WndCalcDiameter - diameter calculation
This FB serves to calculate the reel diameter from the line speed and the reel speed.
• The output signal dwDiameter has a resolution of 1 μm and can display a maximum of 10 m.
Inputs
Function library: LenzeWinder
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dwMaxDiameter
DWORD
Maximum diameter in [μm]
• 1000 μm ≡ 1 mm; 1000000 μm ≡ 1 m
• Internal limitation to 10 m
dwMinDiameter
DWORD
Minimum diameter in [μm]
• 1000 μm ≡ 1 mm; 1000000 μm ≡ 1 m
• Internal limitation to 10 m
dwReferenceLineSpeed
DWORD
Maximum material speed in [cm/min]
• 2500 cm/min ≡ 25.00 m/min
• Internal limitation to 2000 m/min
dnLineSpeed_n
DINT
Material speed setpoint in [%]
• 100 % ≡ maximum material speed (dwReferenceLineSpeed)
dnActualMotorSpeed_s
DINT
Current motor speed in [rpm]
• 15000 rpm ≡ 2 26 ≡ 67108864
dnGearNumerator
DINT
Gearbox factor (numerator)
dnGearDenominator
DINT
Gearbox factor (denominator)
dwCalculationDistance
DWORD
Reel shaft distance (number of revolutions) after which a recalculation of the diame-
ter is carried out.
• 1000 ≡ one revolution (with three decimal positions)
• Internal limitation to 1000000, i. e. the diameter calculation can be maximally
averaged by 1000 revolutions.
GQ'0LQBQ
GQ/LQH6SHHGBQ
E/RDG6HW'LDPHWHU
GQ6HW'LDPHWHUBQ
E+ROG'LDPHWHU
GQ$FWXDO0RWRU6SHHGBV
E'LDPHWHU0LQ/LPLW
E'LDPHWHU0D[/LPLW
GZ0D['LDPHWHU
GZ5HIHUHQFH/LQH6SHHG
GQ*HDU'HQRPLQDWRU
GQ*HDU1XPHUDWRU
GQ$FWXDO5HHO6SHHGBV
E8QZLQG$FWLYH
E8QLGLUHFW
E:HE%UHDN
GQ'LDPHWHUBQ
GZ'LDPHWHU
GQ5H]LS'LDPHWHUBQ
GQ6WDWH
GZ&DOFXODWLRQ'LVWDQFH
GQ'LDPHWHU5HWDLQBQ
GZ0LQ'LDPHWHU
L
/B:QG&DOF'LDPHWHU
&
&
&
GQ'LDPHWHU0LQBQ
&
&
E)RUFH&DOFXODWLRQ
