5.114 L_PosSequencer - sequence control
450
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.114.4 Example: Sequence table

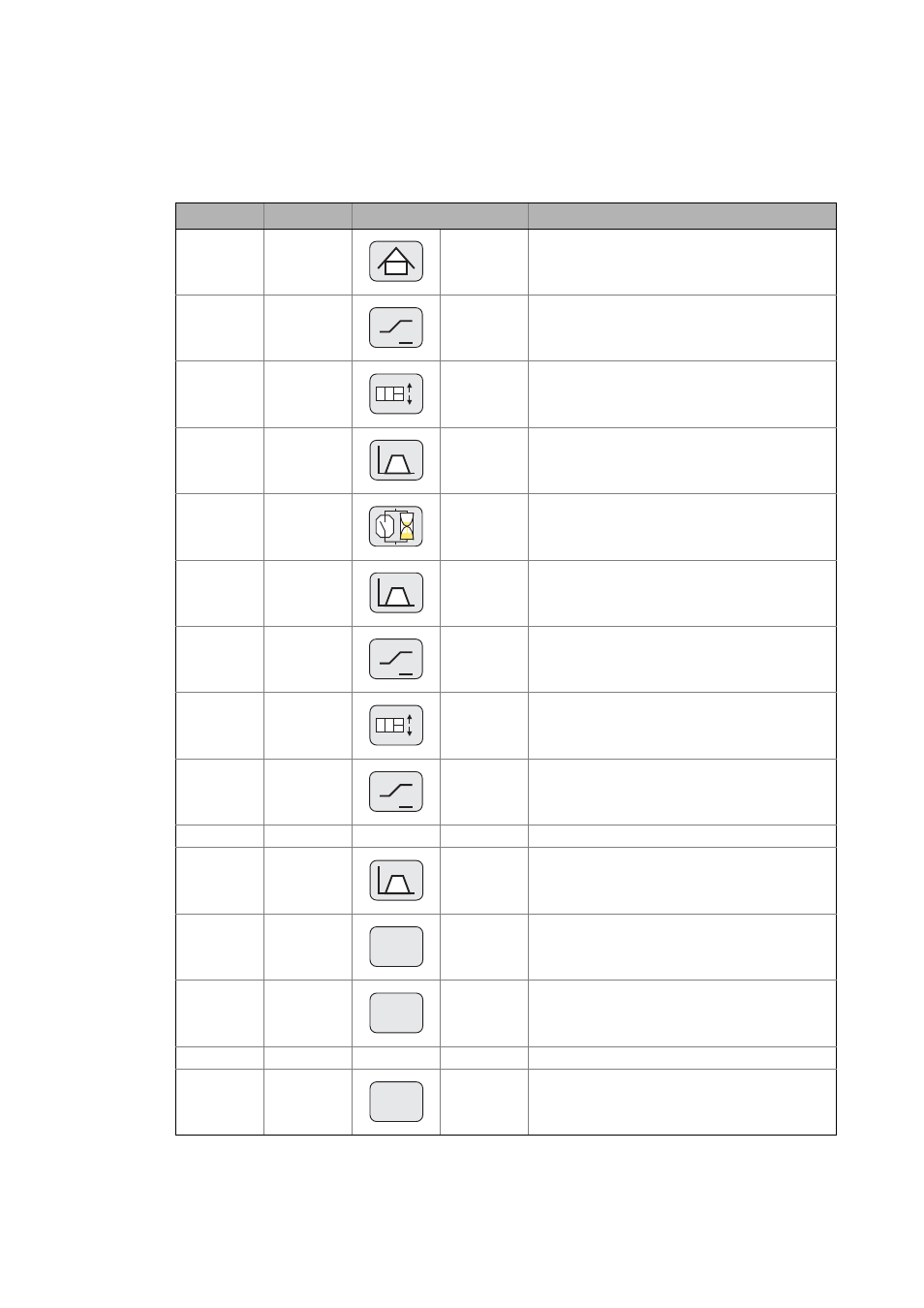

Parameter Entry ≡ Action type/action no. Meaning
C04500/1 5000 - Execute homing
C04500/2 3001 1 Process action 1 of type "Branching" (3)
C04500/3 9005 5 Process action 5 of type "Counting" (9)
C04500/4 1001 1 Process action 1 of type "Positioning" (1)
C04500/5 7003 3 Process action 3 of type "Waiting" (7)
C04500/6 1002 2 Process action 2 of type "Positioning" (1)
C04500/7 3002 2 Process action 2 of type "Branching" (3)
C04500/8 9005 5 Process action 5 of type "Counting" (9)
C04500/9 3004 4 Process action 4 of type "Branching" (3)
C04500/... yyxxx yy xxx Process action xxx of type yy
C04500/24 1012 12 Process action 12 of type "Positioning" (1)
C04500/25 0 - Program end
C04500/26 0 - Program end
C04500/... ... ... ... ...
C04500/100 0 - Program end
0
1
1
3
4
2
0
1
1
3
4
2
0
1
End
End
End
