5 Function blocks

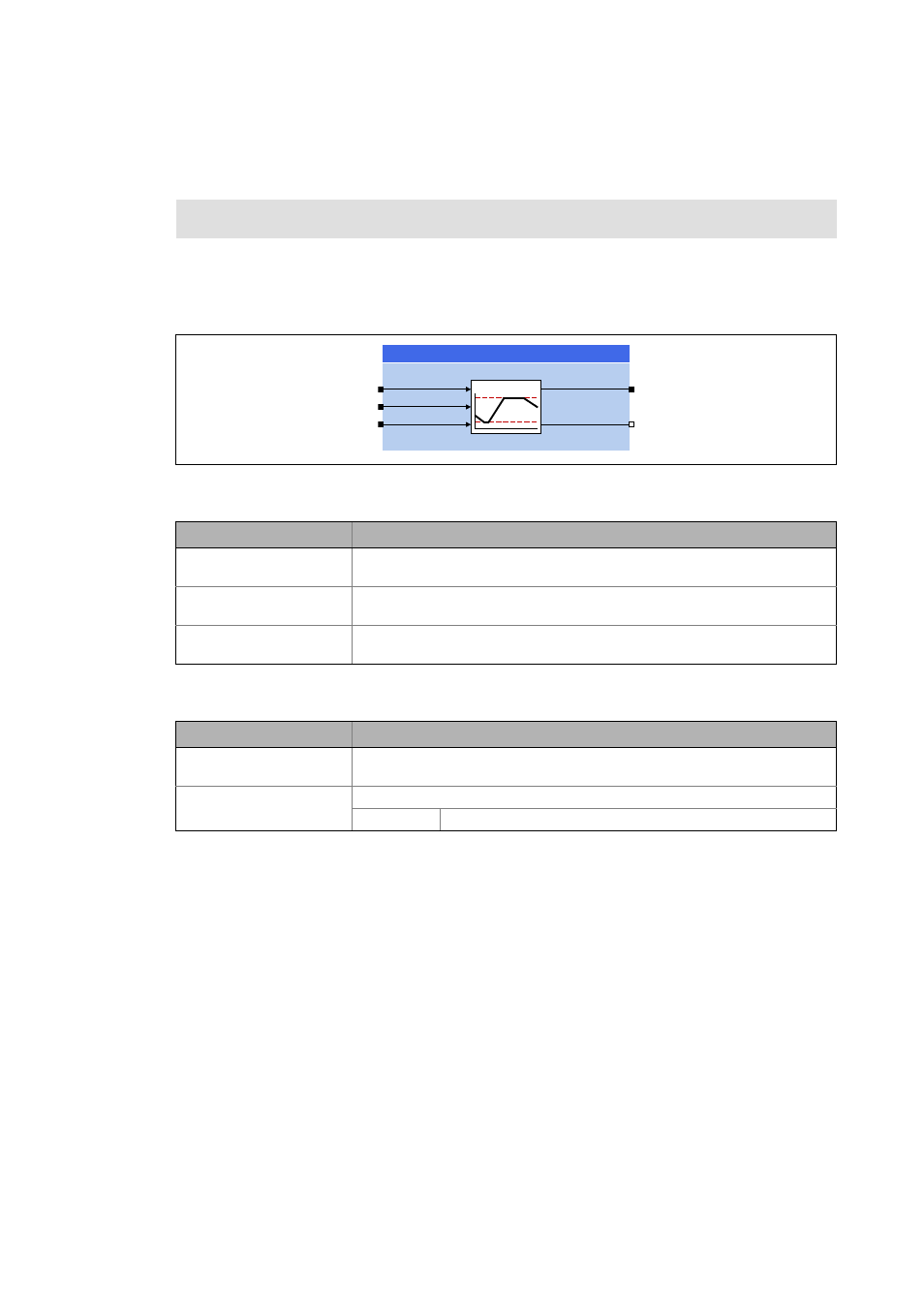

5.175 L_TbLimit - limitation (for "DINT" data type)
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.175 L_TbLimit - limitation (for "DINT" data type)
This FB limits a signal of "DINT" data type to an adjustable value range.
• The upper and lower limits of the value range are set via the inputs dnMaxLimit and dnMinLimit.
• The bLimitActive output displays if a limitation is active.
Inputs
Outputs

Tip!
The lower limit must always be set smaller than the upper limit, otherwise the value "0" is
output at dnOut.
Function library: LenzeToolbox
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dnIn
DINT
Input signal
dnMaxLimit
DINT
Upper limitation
dnMinLimit
DINT
Lower limitation
Identifier/data type Value/meaning
dnOut
DINT
Output signal
bLimitActive
BOOL
Output signal within the limitation
TRUE The output signal dnOut is limited.
GQ2XW
GQ0LQ/LPLW
GQ,Q
/B7E/LPLW
GQ0D[/LPLW
0D[/LPLW
0LQ/LPLW E/LPLW$FWLYH
