Page 158
5
Function blocks

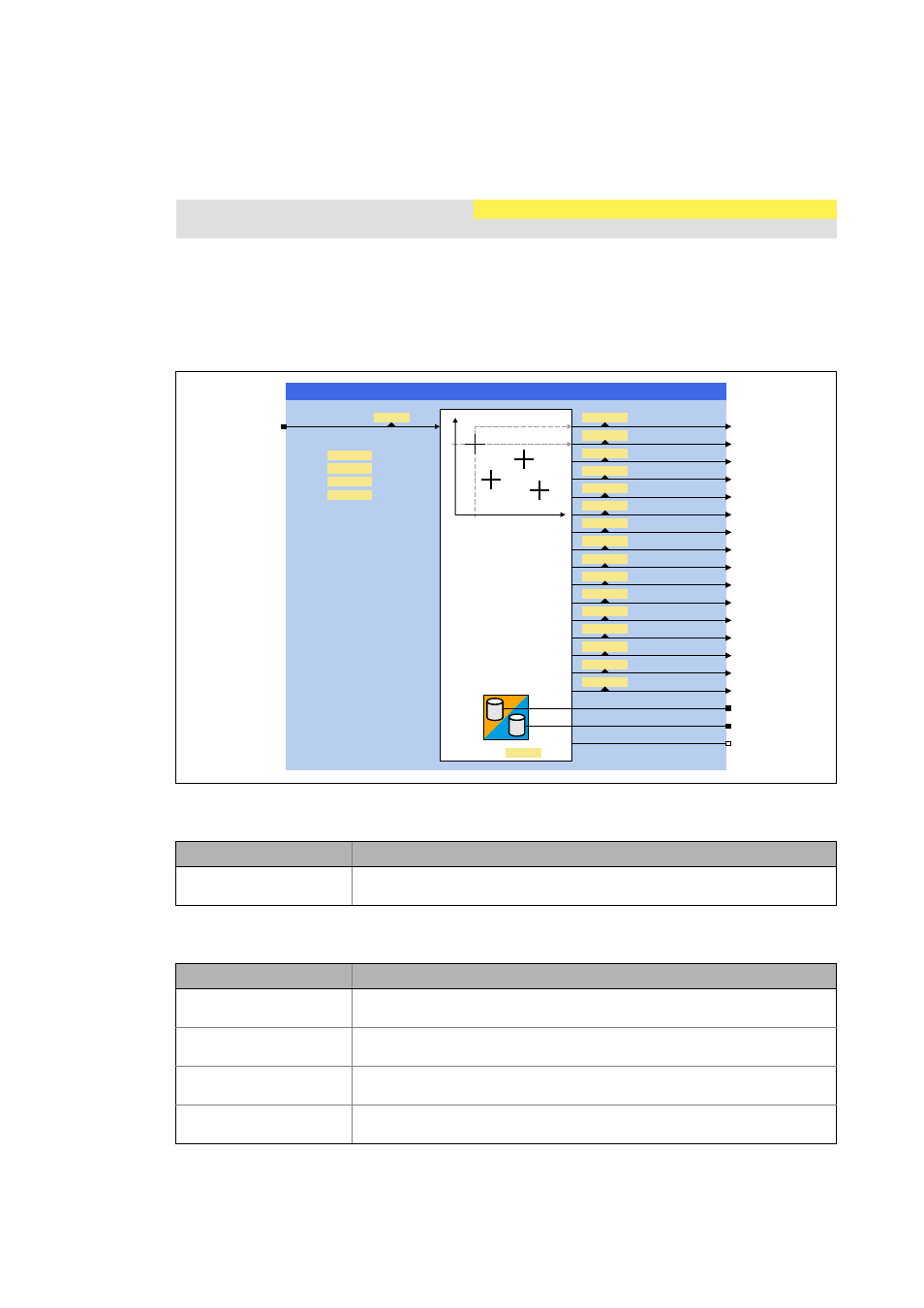

5.5
L_CamPosMarker - reading out position marks from cam data
158
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.5
L_CamPosMarker - reading out position marks from cam data
From the cam data under the current product number (specified via the LS_CamInterface SB), this
FB reads out the track with position markers selected via the input dnTrackNumber and provides the
corresponding x and y positions for processing within the function block interconnection.
• A position data track can contain up to four position markers.
•
As of Engineer version 2.9
up to eight position markers per position data track are supported.
Inputs
Outputs
Function library:
LenzeCam
FB permissible for firmware as of V3.0 only!
Runtime software licence:
Motion Control HighLevel
Motion Control TopLevel
Identifier/data type
Information/possible settings
dnTrackNumber
DINT
Selection of the position marker track
Identifier/data type
Value/meaning
dnXPosMarker0_p
DINT
Position marker 0: x position in [increments]
• C05536/1 indicates the position in the real unit of the machine.
dnYPosMarker0_p
DINT
Position marker 0: y position in [increments]
• C05537/1 indicates the position in the real unit of the machine.
dnXPosMarker1_p
DINT
Position marker 1: x position in [increments]
• C05536/2 indicates the position in the real unit of the machine.
dnYPosMarker1_p
DINT
Position marker 1: y position in [increments]
• C05537/2 indicates the position in the real unit of the machine.
GQ;3RV0DUNHUBS
GQ<3RV0DUNHUBS
GQ;3RV0DUNHUBS
GQ<3RV0DUNHUBS
GQ;3RV0DUNHUBS
GQ<3RV0DUNHUBS
GQ;3RV0DUNHUBS
GQ<3RV0DUNHUBS
/B&DP3RV0DUNHU
&
&
&
&
&
&
&
&
& ;D[LVQDPH
& ;D[LVXQLW
E(UURU
;$[LV'DWD
<$[LV'DWD
&DPD[LVGDWD
;
<
& 6WDWH
GQ7UDFN1XPEHU
&
[
\
3
& & 3 3 3 GQ;3RV0DUNHUBS GQ<3RV0DUNHUBS GQ;3RV0DUNHUBS GQ<3RV0DUNHUBS GQ;3RV0DUNHUBS GQ<3RV0DUNHUBS GQ;3RV0DUNHUBS GQ<3RV0DUNHUBS & & & & & & & &
