5 Function blocks

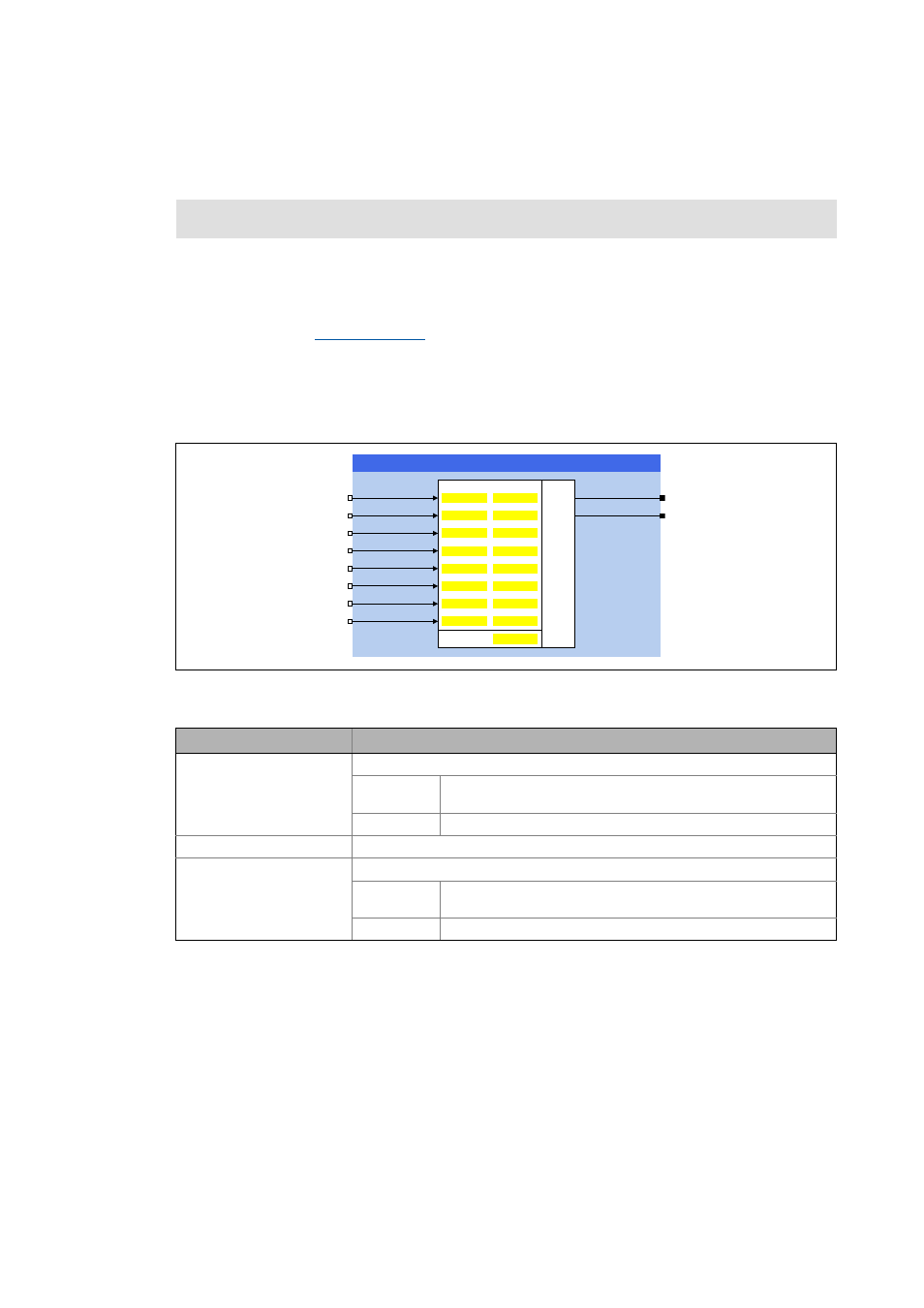

5.64 L_DevApplErr - error tripping
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.64 L_DevApplErr - error tripping
This FB is used for error handling in the application.
• Via the 8 boolean inputs up to 8 different application error messages with parameterisable mo-
dule ID, error ID and error response can be released by the application.
• In contrast to FB L_DevApplErrFix the module ID; error ID, and the error response of this FB can
be set via parameters and not via inputs.
• If more than 8 application error messages are required, the FB can be instanced.
• If several inputs are set to TRUE at the same time, the input with the lowest number will activate
the error message.
Inputs
Function library: LenzeDevice9400
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
bError1
BOOL
Input for error message 1 (highest priority)
FALSETRUE Error condition 1 is met and the parameterised application error
message is output by the operating system.
FALSE Error condition 1 is no longer met.
... ...
bError8
BOOL
Input for error message 8 (lowest priority)
FALSETRUE Error condition 8 is met and the parameterised application error
message is output by the operating system.
FALSE Error condition 8 is no longer met.
GQ6WDWH
GQ/DVW(UURU1R
/B'HY$SSO(UU
E(UURU
E(UURU
E(UURU
E(UURU
E(UURU
E(UURU
E(UURU
E(UURU
(UURU,' 5HDFWLRQ,'
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
& 0RGXOH,'
(UURUKDQGOHU
