L_TbIntegrate - integration with limitation

592

Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

5.174.1

Adapting the time reference

The dnIn input signal has the unit [1/s] as time reference.
An input signal can easily be adapted to the expected unit [1/s] by multiplying it by a corresponding

scaling factor:

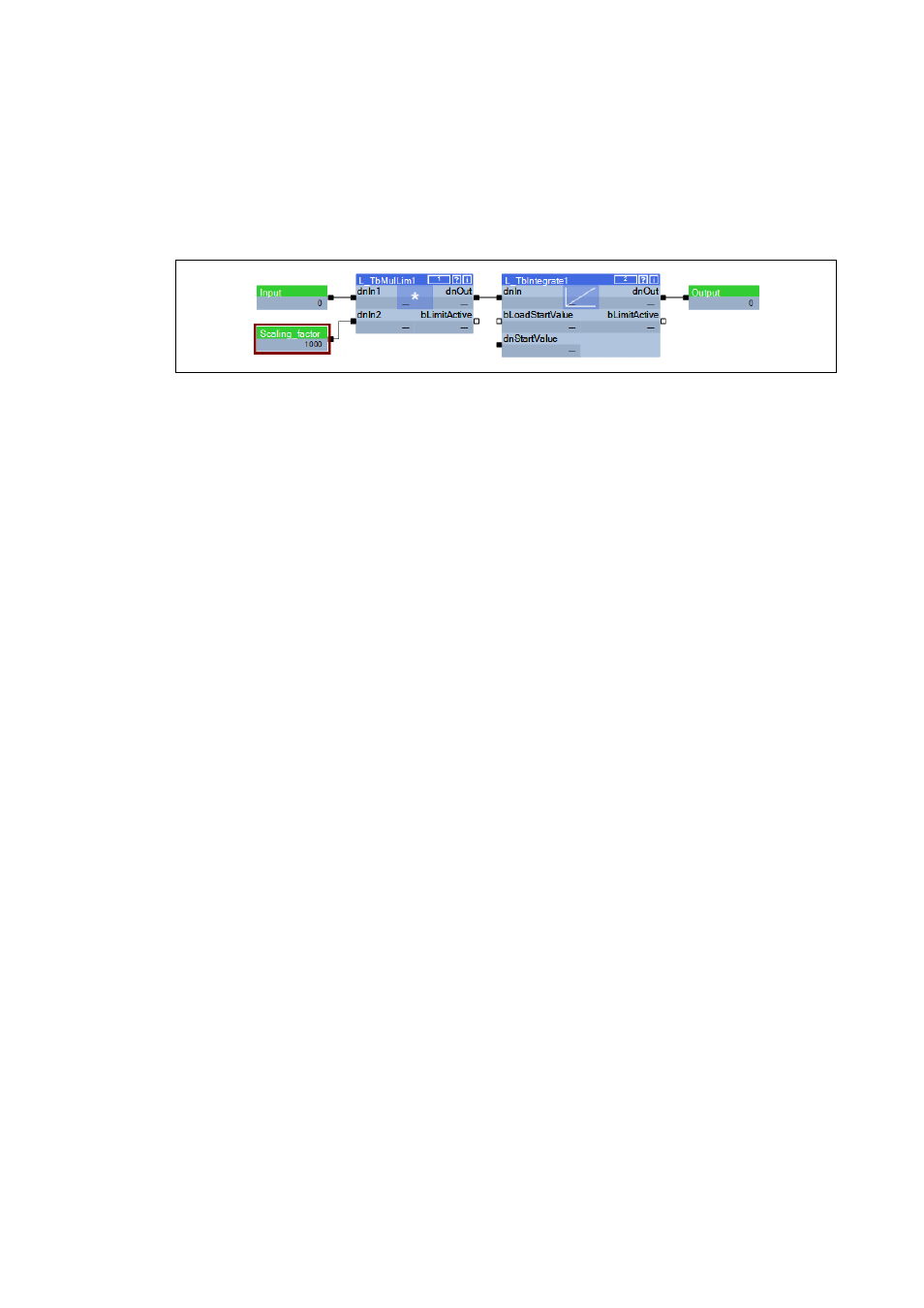

[5-145] Model connection for adapting the time reference

Example: Time reference of the Input input signal = [1/ms]  scaling factor = 1000
