5.2.2 Data flow
The cams are entered in the »Cam Designer«. The transmission of the cam data to the controller(s)
– together with the corresponding parameter set – is effected via the »Engineer« by executing the
command Transfer parameter set to the device. Afterwards the parameter set and the cam data
have to be saved in the memory module with mains failure protection (e. g. with the device com-
mand C00002 = "11: Save starting parameters").

Tip!
The cams can also be entered directly via the parameters of the basic drive function "Cam
data management" (LS_CamInterface SB) if cam data have already been downloaded to the
controller.
Selection of the cam data to be used within the application
Within the application the selection of the cam data to be used is then carried out via the product
number and the track number which have been defined for the axis in the »Cam Manager«:
• The selection of the product number  and therefore the selection of the product to be manuf-
actured for the application is effected globally via the input CAM_dnProductNumber of
the LS_CamInterface SB and has to be carried out synchronously for all cam drives in the inter-
connection.
• The selection of the track number  of the cam data track, however, is effected individually via
the input dnTrackNumber of the corresponding entity of the L_CamContactor FB.

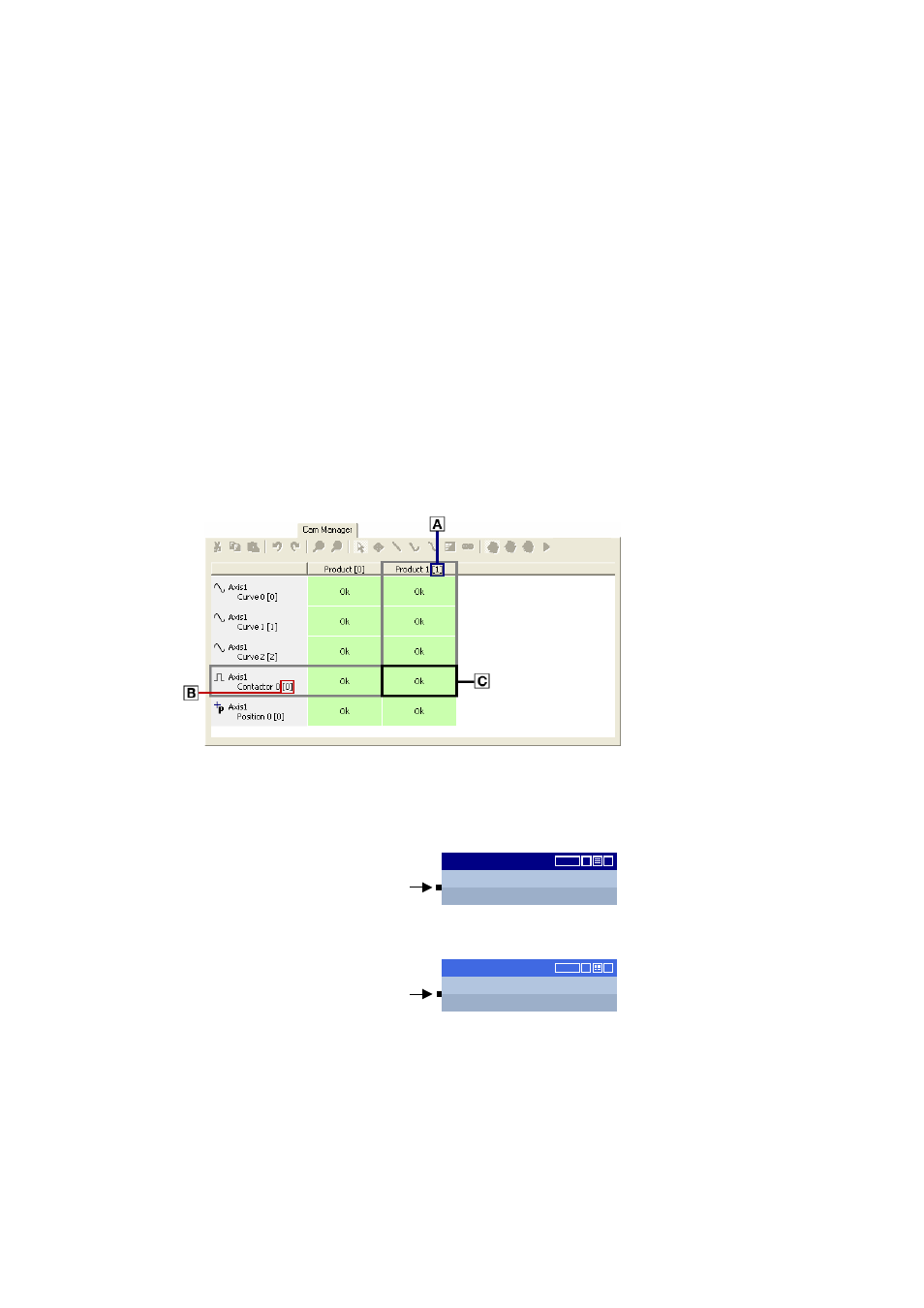

 Product number
 Track number
 Cam data
/6B&DP,QWHUIDFH
&$0BGQ3URGXFW1XPEHU
E6WDUW
" L
/B&DP&RQWDFWRU
GQ7UDFN1XPEHU
E6WDUW
" L
