5 Function blocks
5.26 L_DcByteToBits - bit demultiplexer
212
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

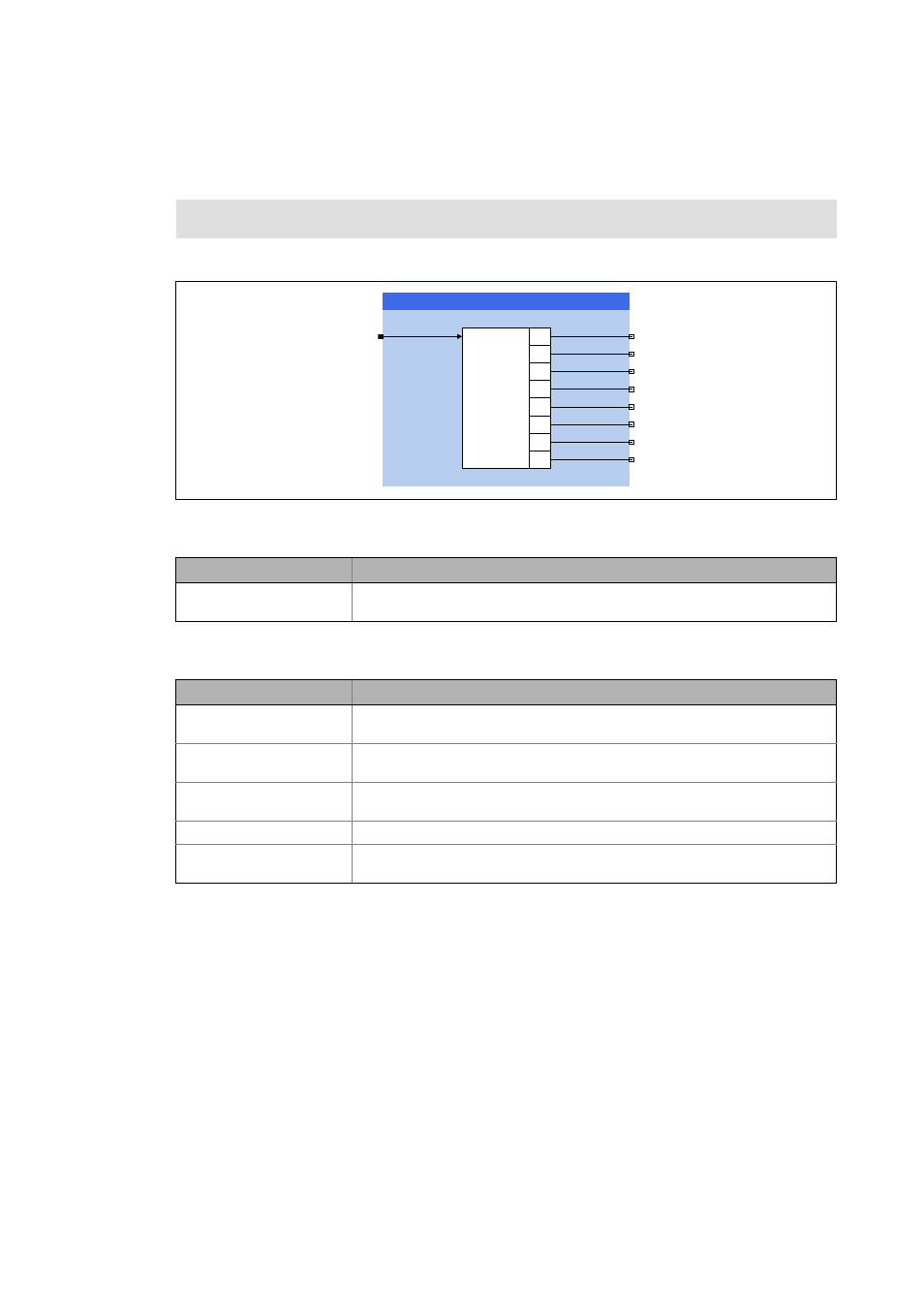

5.26 L_DcByteToBits - bit demultiplexer
This FB outputs the 8 corresponding bit values for an input value of type "BYTE".
Inputs
Outputs
Function library: LenzeDataConversion
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
byInput
BYTE
Value to be converted
Identifier/data type Value/meaning
bBit0
BOOL
Bit 0 output of byInput (valency: 20)
bBit1
BOOL
Bit 1 output of byInput (valency: 2 1 )
bBit2
BOOL
Bit 2 output of byInput (valency: 2 2 ))
... ...
bBit7
BOOL
Bit 7 output of byInput (valency: 27)
/B'F%\WH7R%LWV
E\,QSXW E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
%<7(
