3 Working with the FB editor
3.2 User interface
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Controller with empty application
If no technology function has been selected from the catalogue when the controller has been ente-
red into the Project View, the controller is automatically assigned to an "empty application".

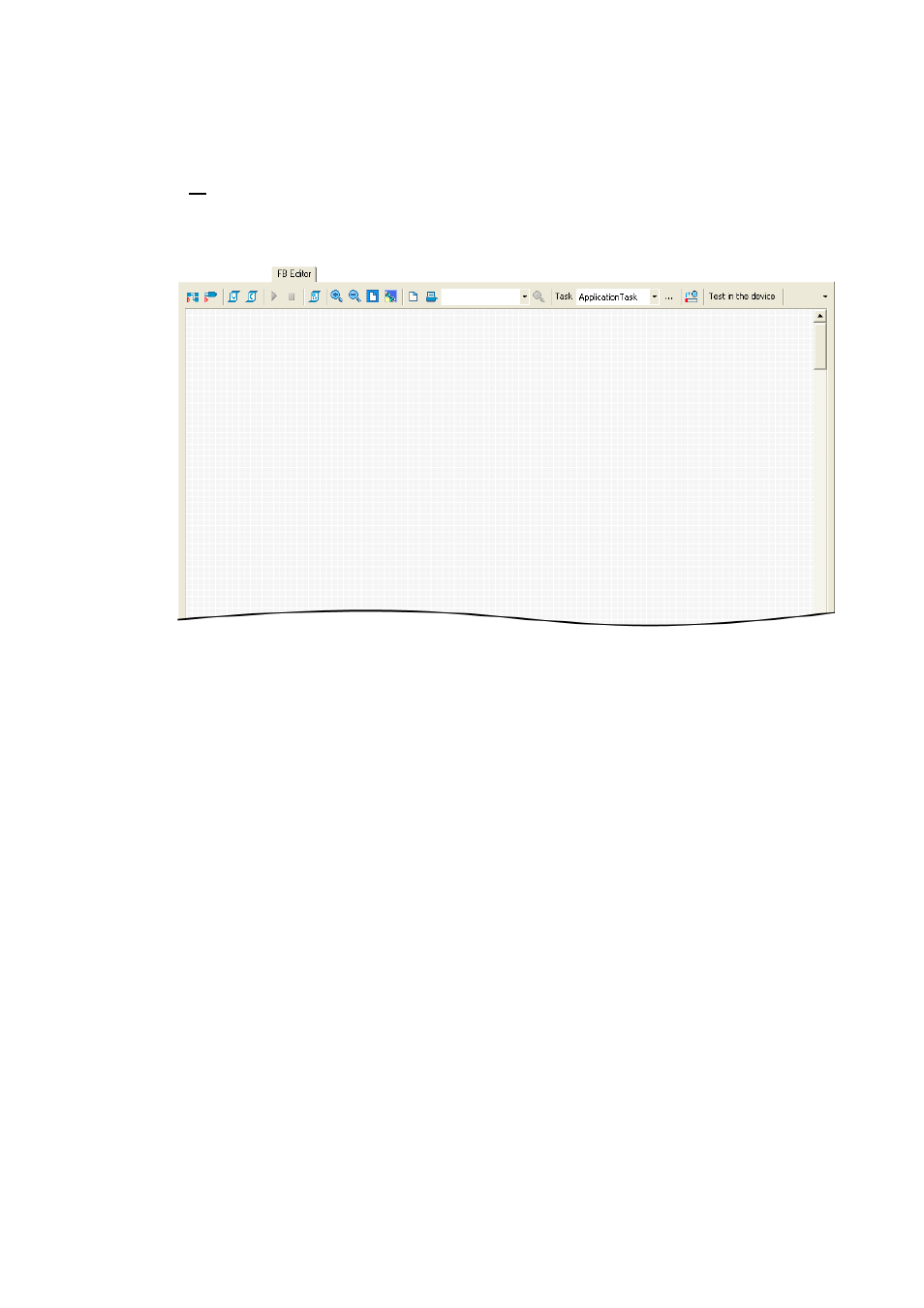

In this case, the FB Editor contains an empty and already enabled drawing area where you can recre-
ate the required interconnection from scratch:

Tip!
You can replace the empty application any time by another technology application from
the catalogue.
1. Select the controller in the Project View.
2. Select the command InsertApplication.
