5 Function blocks

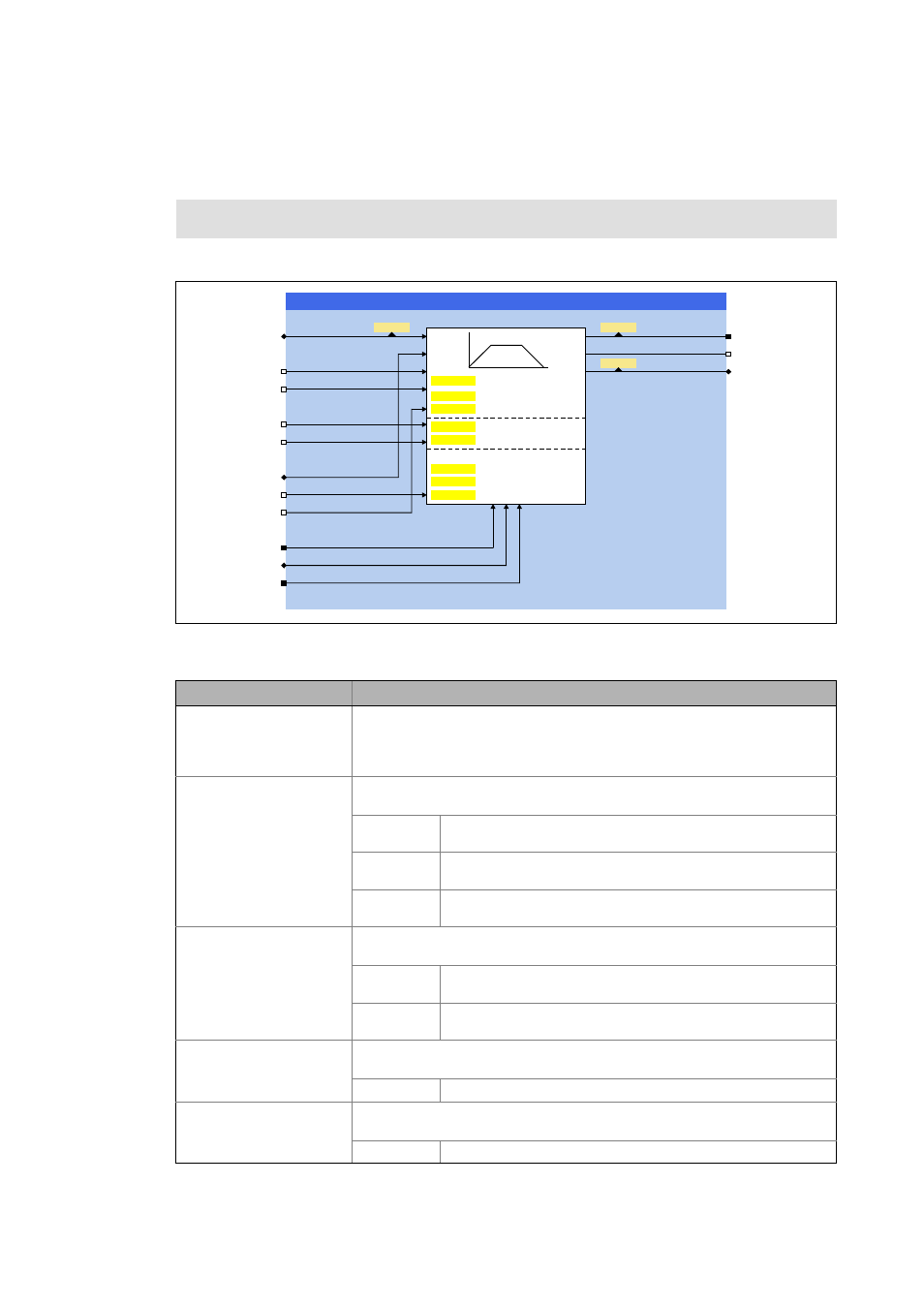

5.100 L_LdVirtualMasterV - virtual master for electronic gearboxes
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.100 L_LdVirtualMasterV - virtual master for electronic gearboxes
This FB provides the "Virtual master" function for the "Electronic gearbox" application.
Inputs
Function library: LenzeLineDrive
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dnExtMaster_s
DINT
Selection of an external master speed, e.g. from an encoder.
• At this input, the FB expects a speed in [rpm]. The machine parameters at the in-
put AxisData are used as speed reference.
• C05118 indicates the external master speed in the real unit of the machine.
bEnable
BOOL
Activate master function
• This input has the highest priority.
FALSE The input dnExtMaster_s is connected through 1:1 to output
dnSpeedOut_s. No ramps are active.
TRUE Master shaft dnSpeedOut_s is braked to standstill via the ramp func-
tion or follows the function selected.
TRUEFALSE Master shaft dnSpeedOut_s travels via the ramp for continuous ope-
ration with master speed dnExtMaster_s.
bContinuous
BOOL
Control - continuous operation/production process
• Only possible for the "continuous operation" mode set in C05100.
TRUE Continuous operation is started, master shaft dnSpeedOut_s travels
with setpoint speed.
TRUEFALSE Continuous operation is stopped, master shaft dnSpeedOut_s is bra-
ked to standstill via ramp for continuous operation.
bManualJogCw
BOOL
Inching - CW rotation
• Only possible for the "inching" mode set in C05100.
TRUE Inching (manual jog) in positive direction.
bManualJogCcw
BOOL
Inching - CCW rotation
• Only possible for the "inching" mode set in C05100.
TRUE Inching (manual jog) in negative direction.
GQ6WDWH
E%XV\
GQ6SHHG2XWBV
/B/G9LUWXDO0DVWHU9
E&RQWLQXRXV
E0DQXDO-RJ&Z
E0DQXDO-RJ&FZ
GQ+DQGZKHHOBV
E6WRS,QVWDQW
E(QDEOHQG6SHHG6HW
GQ([W0DVWHUBV
E(QDEOH
0DVWHUVSHHG
&
& 0DVWHUVSHHG
& 2SHUDWLQJPRGH
&
5DPS
1HJDWLYHLQFKLQJ6SHHG
&
& 3RVLWLYHLQFKLQJ6SHHG
,QFKLQJ &
&RQWLQXRXVRSHUDWLRQ &
6WRS &
6SHHG
W
&
&
$[LV'DWD
GQ6SHHG6HWBV
GZ2SHUDWLQJ0RGH
