5 Function blocks

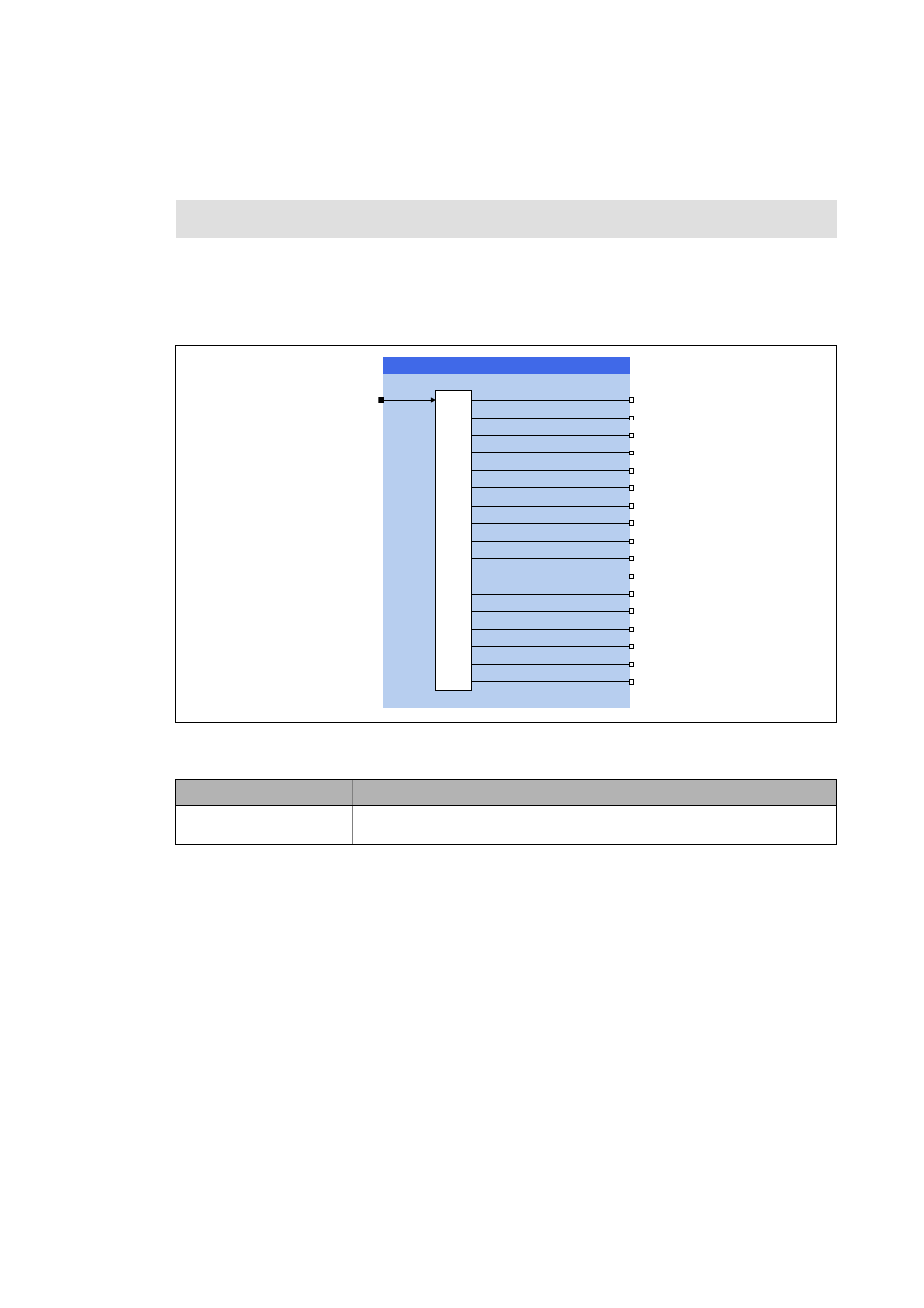

5.70 L_DevManualJogStateDecoder - status signals of the basic function "ManualJog"
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.70 L_DevManualJogStateDecoder - status signals of the basic function "ManualJog"
This FB decodes the status output signal dnState of the SB LS_ManualJog into individual boolean
status signals for further use in the FB interconnection.
• The functionality corresponds to a converter "DINTBOOL", but the boolean outputs of this FB
have the same names according to their meaning.
Inputs
Function library: LenzeDevice9400
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dnState
DINT
Input for the bit-coded status signal of the basic function "ManualJog".
• Connect this input with the output of the same name of the SB LS_ManualJog.
/B'HY0DQXDO-RJ6WDWH'HFRGHU
GQ6WDWH E$FWLYH
E'RQH
E$FF'HF
E&FZ
E(UURU$FWLYH
E(UU-RJ1HJ5HOHDVH
E(UU-RJ1HJ-RJ3RV
E(UU-RJ3RV5HOHDVH
E-RJ6SHHG
E-RJ6SHHG
E/LP'LU3RV
E/LP'LU1HJ
E$ERUW
E6WRSSLQJ$FWLYH
/6B0DQXDO-RJVWDWH
E(UU3*
E0LQ2YHUULGH
E(UU1R6WRS3RV
