Lenze E94A - Manual (Page 517)

Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
517
5 Function blocks
5.136 L_SdSetAxisData - machine parameters
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.136.4 Example
The machine parameters of a master value encoder are to be displayed in the application for the
purpose of master value processing.

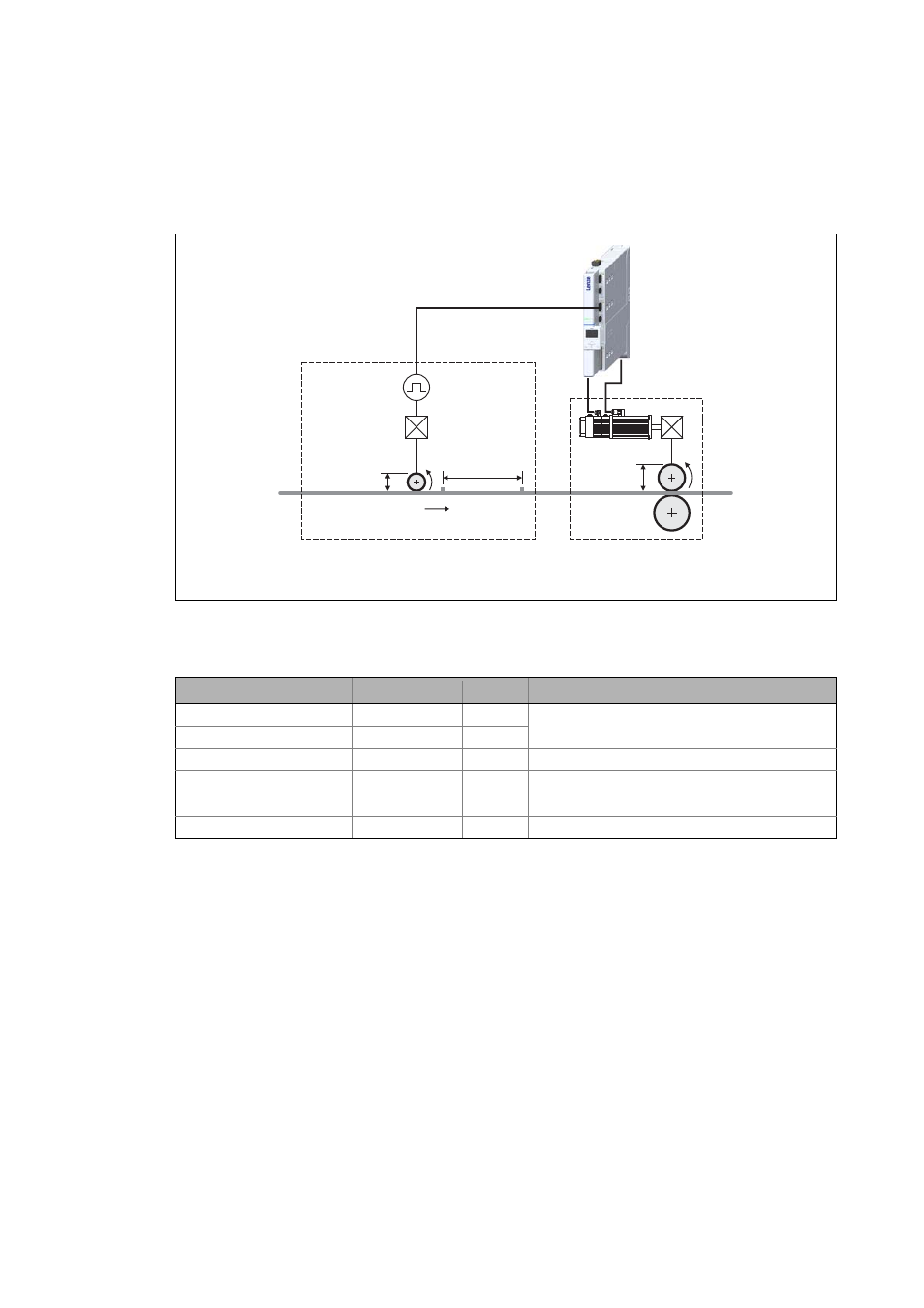

[5-109] Schematic diagram of real master (master value encoder)
Settings

Tip!
The machine parameters for the drive/motor are set via the drive interface
(SB LS_DriveInterface).
 Machine parameters of the master value encoder
 Machine parameters of the drive/motor
d d
1 2
i
1
i
2
= 150 mm
= 3.333
l
1
= 600 mm
v
max
= 1000 mm/s
 Œ
Machine parameters Setting Input Information
Gearbox ratio - numerator C04240 10 Enter gearbox ratio i
1
= 3.333 for the master value
encoder as a quotient (numerator and denominator).
Gearbox ratio - denominator C04241 3
Feed constant C04242 471.2389 Fc = d
1
* π = 150 mm * π = 471.2389 mm
Path unit C04243 3 Unit = [mm]
Cycle C04248 600 l
1
= 600 mm
Reference speed C04251 1000 v
max
= 1000 mm/s
