3 Working with the FB editor
3.4 Creating/reconfiguring the interconnection
64
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

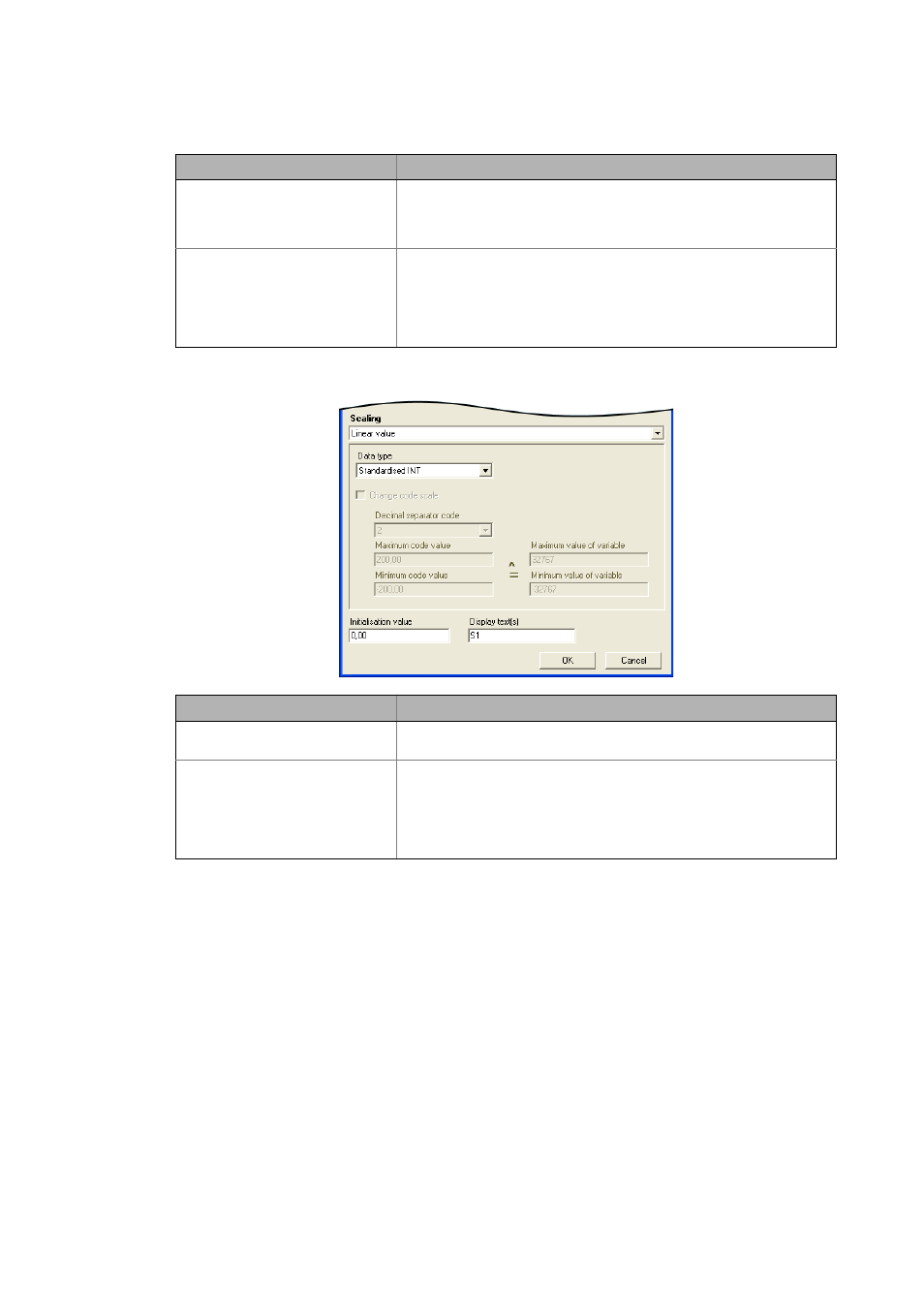

User code with "Linear value" scaling
Initialisation value Value the user code is initialised with.
• If subcodes have been defined, the initialisation values are configured in
the Initialisation values dialog box instead, which you open via the
Subcodes... button.
Display text(s) Any display text for the user code
• The display text is displayed in the FB Editor in the header of the user co-
de, in the »Engineer« parameter list, and in the keypad for the user code.
• If subcodes have been defined, the display texts are configured in the
Initialisation values dialog box instead, which you open via the
Subcodes... button.
Input field Information
Data type Data type
• The available data types are prenamed according to their designation.
Change code scaling Set a checkmark in this control field if you want to change the preset scaling
of the user code.
• Then you can change the preset scaling and the number of decimal posi-
tions via the activated input fields.
• The preset scaling can only be changed for the "Other BYTE/ WORD/
DWORD/INT/DINT" data types.
Input field Information
