5.11 L_CamSyncIn - synchronous/oversynchronous clutch-in
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.11.1 Application example: "Flying saw"
When a flying saw is used, the tool moves in synchronism with the moving material during the ma-
chining process. For this purpose, the tool must first be moved on a slide in parallel to the material.
To create the feed of the tool during the machining process, a second drive moves it with constant
speed at 90° to the material. At the end of the machining process, the drive must be repositioned to
its initial position.
A third drive from the tool drive group moves the tool, e.g., by means of the basic function "Positio-
ning" (LS_Positioner system block).

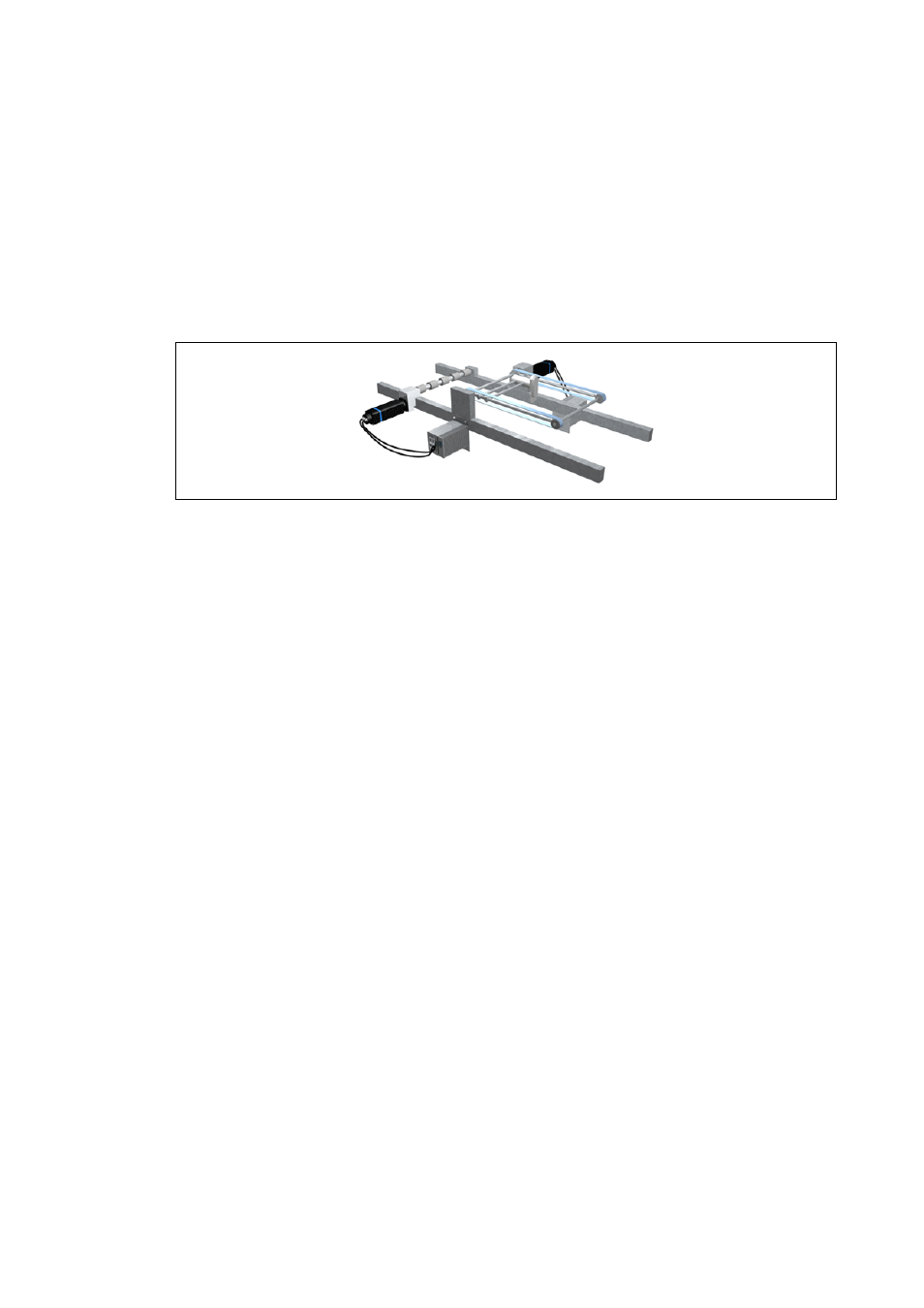

[5-24] Example "flying saw"
