5 Function blocks
5.22 L_DcBitsToWord - bit multiplexer
208
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

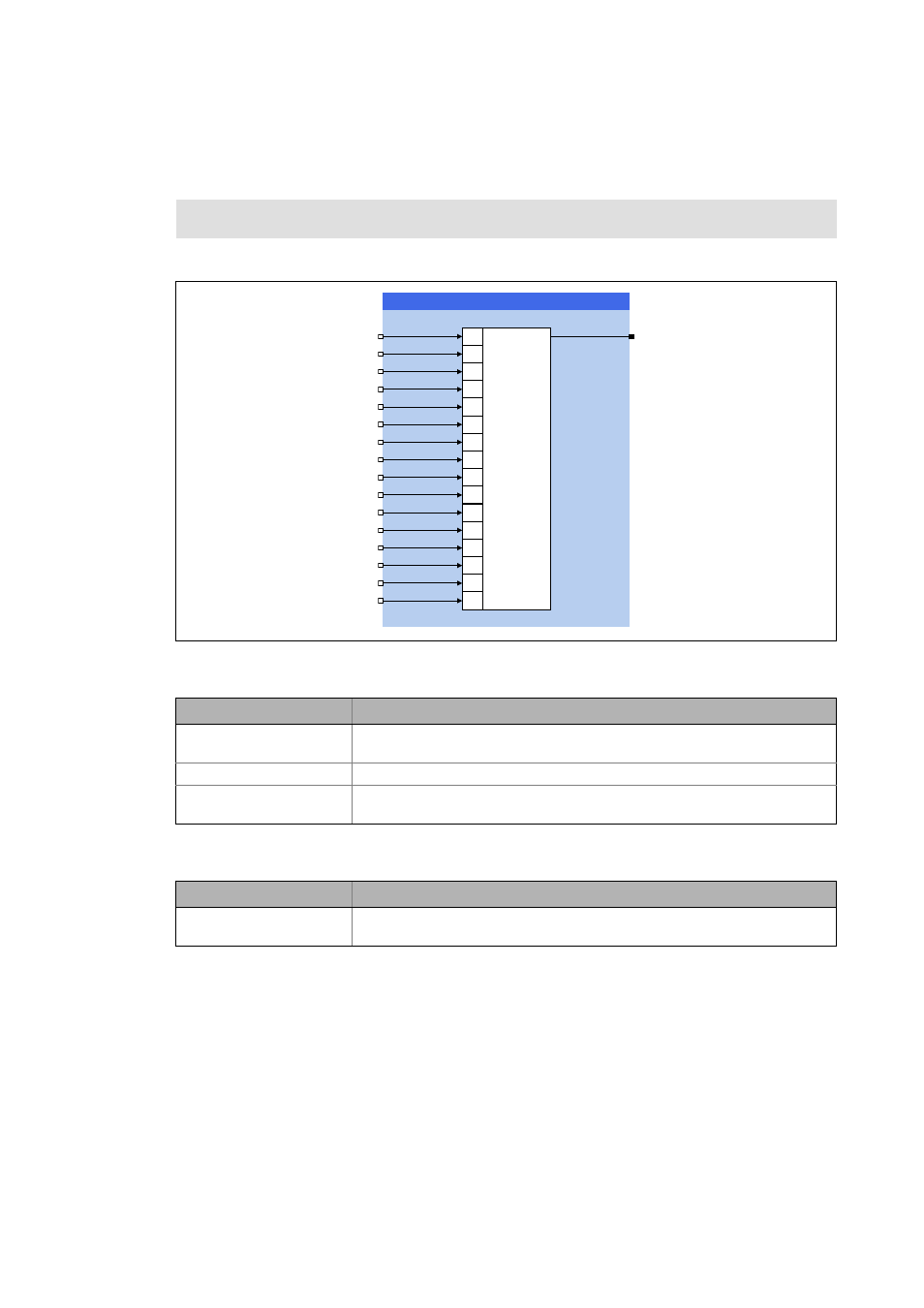

5.22 L_DcBitsToWord - bit multiplexer
This FB converts 16 single bit values into a value of "WORD" type.
Inputs
Outputs
Function library: LenzeDataConversion
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
bBit0
BOOL
Input for bit value with valency 2 0
... ...
bBit15
BOOL
Input for bit value with valency 2 15
Identifier/data type Value/meaning
wOutput
WORD
Value of "word" type according to the transmitted bit values.
/B'F%LWV7R:RUG
E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
E%LW
Z2XWSXW
:25'
