5 Function blocks

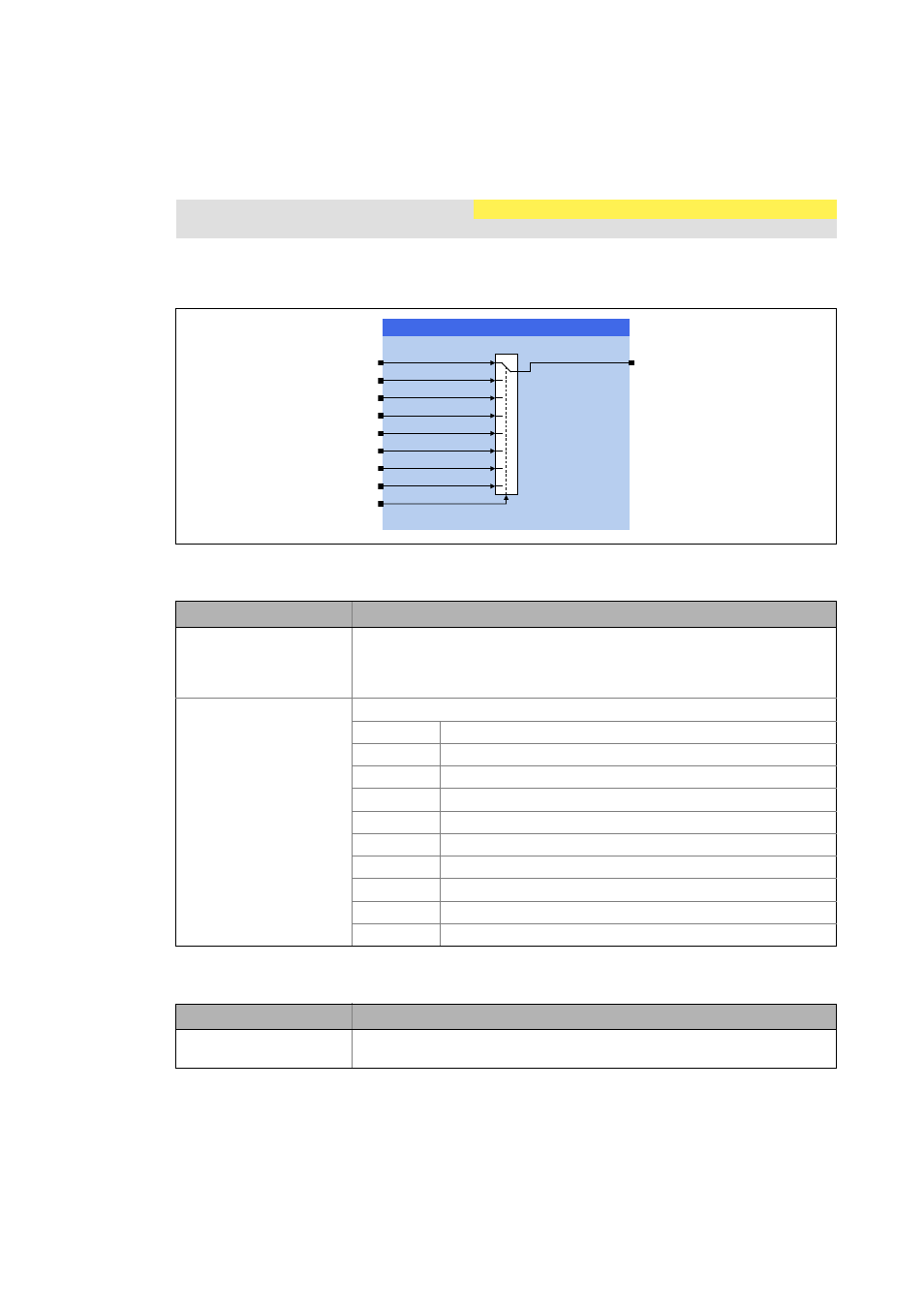

5.154 L_Tb8SelectWord - 1-out-of-8 selector (for data type "WORD")
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.154 L_Tb8SelectWord - 1-out-of-8 selector (for data type "WORD")
This FB connects one of eight input signals of "WORD" type through to the output.
• The input is selected via the input dwSelect.
Inputs
Outputs
Function library: LenzeToolbox FB is available as of library V02.05.xx.xx!
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
wIn1
...
wIn8
WORD
Input signal 1 ... 8
dwSelect
DWORD
Selection of the input signal for the output to wOut
0 0
1 wIn1
2 wIn2
3 wIn3
4 wIn4
5 wIn5
6 wIn6
7 wIn7
8 wIn8
> 8 0
Identifier/data type Value/meaning
wOut
WORD
Output signal
Z2XW
Z,Q
Z,Q
Z,Q
Z,Q
Z,Q
Z,Q
Z,Q
GZ6HOHFW
Z,Q
/B7E6HOHFW:RUG
