Page 486
5
Function blocks
5.129

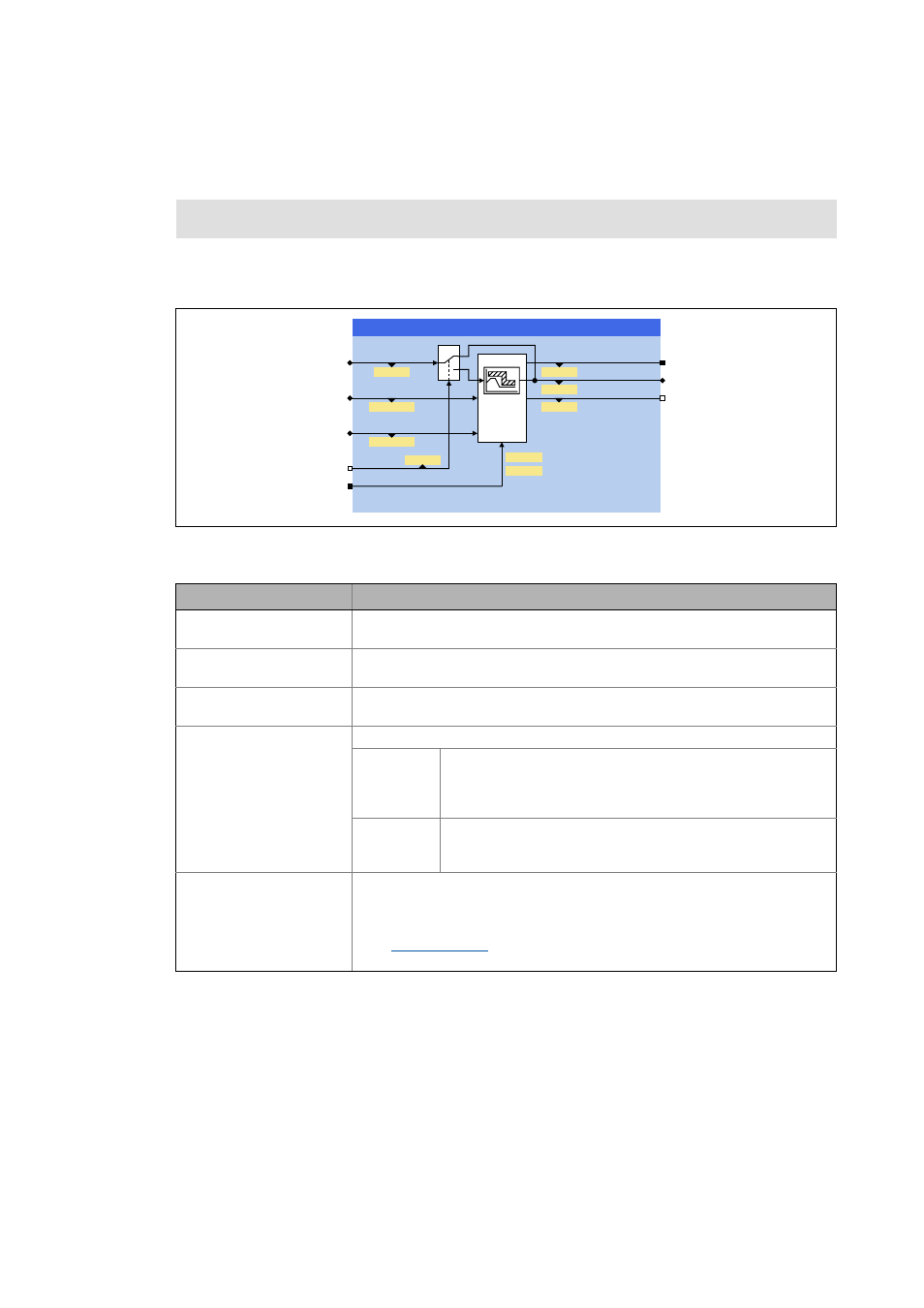

L_SdLimitSpeed - speed limitation
486
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.129
L_SdLimitSpeed - speed limitation
This FB is used to lead a speed setpoint to defined limit ranges.
• The overflow buffer has a sample rate of 8 revolutions/ms.
Inputs
Function library:
LenzeServoDrive
Runtime software licence:
Motion Control HighLevel
Motion Control TopLevel
Identifier/data type
Information/possible settings
dnSpeedIn_s
DINT
Speed input signal in [rpm]
• 15000 rpm ≡ 2
26
≡ 67108864
dnUpperLimit_s
DINT
Upper speed limit in [rpm]
• 15000 rpm ≡ 2
26
≡ 67108864
dnLowerLimit_s
DINT
Lower speed limit in [rpm]
• 15000 rpm ≡ 2
26
≡ 67108864
bEnable
BOOL
Activate speed limitation
FALSE Speed limitation is deactivated.
• The input signal dnSpeedIn_s is output unchanged to the output
dnSpeedOut_s.
• The overflow buffer is cleared.
TRUE Speed limitation is activated.
• The input signal dnSpeedIn_s is output to the output
dnSpeedOut_s considering the defined speed ranges.
AxisData
Machine parameters
• For accepting the machine parameters of the drive/motor, connect this input
with the output DI_AxisData of the SB LS_DriveInterface.
• The machine parameters of a master drive can be displayed with the
FB
. In this case, the FB output AxisData must be connected to
this input.
E/LPLW
GQ6WDWH
GQ6SHHG2XWBV
/B6G/LPLW6SHHG
GQ8SSHU/LPLWBV
GQ/RZHU/LPLWBV
$[LV'DWD
GQ6SHHG,QBV
&75/
E(QDEOH
&
&
&
&
&
&
&
& 6SHHGXQLW
& 5HIHUHQFHVSHHG
