5 Function blocks

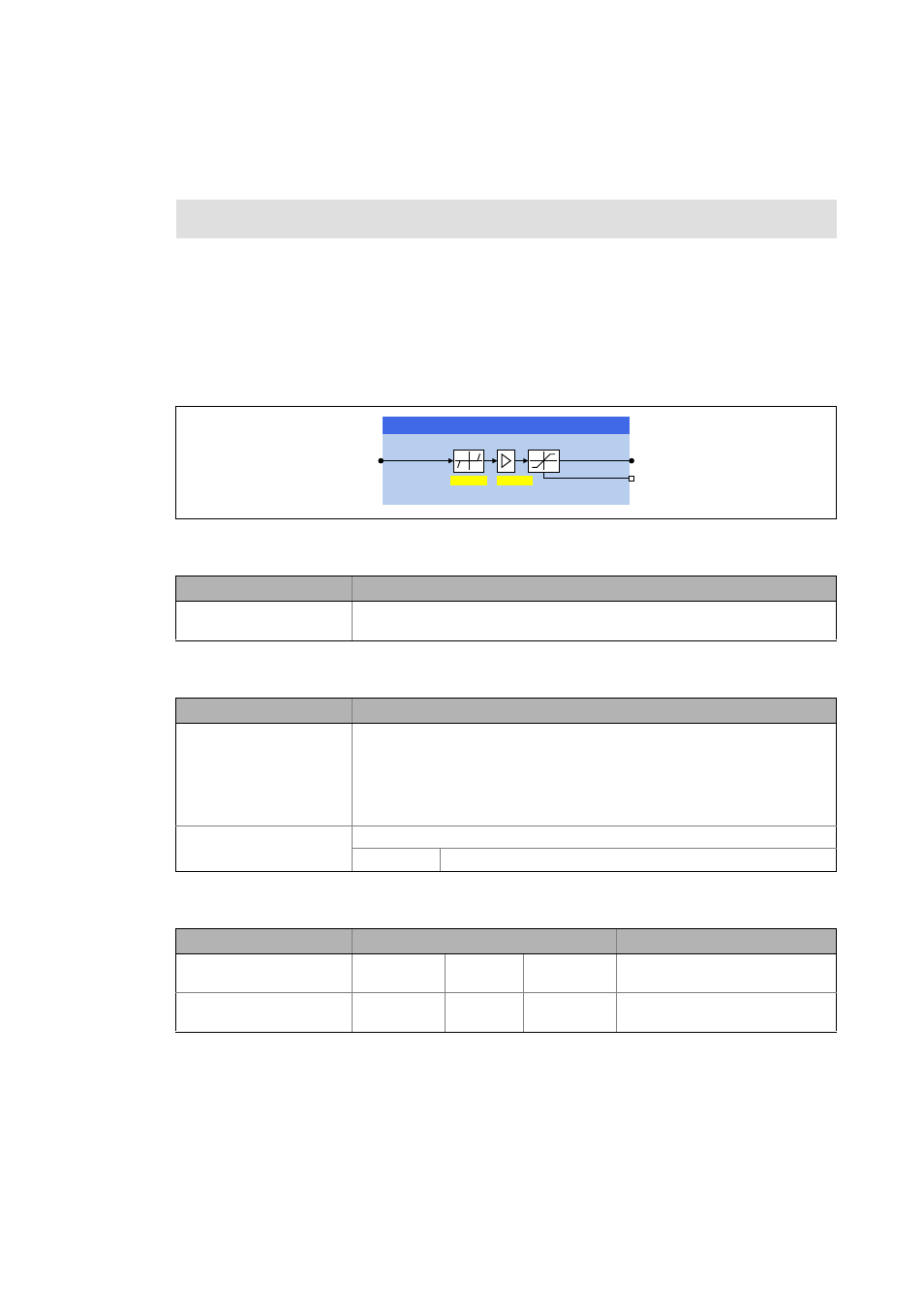

5.166 L_TbDeadband_n - scaled dead band with gain
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.166 L_TbDeadband_n - scaled dead band with gain
This FB produces a symmetrical dead band around zero.
• The attenuation of the input signal caused by the dead band can be compensated by a parame-
terisable gain.
• The value output to dnOut is internally limited to ±200 %.
• The bLimitActive output displays if a limitation is active.
• The function corresponds by approximation to the "DB" function of the 9300 servo inverter.
Inputs
Outputs
Parameter
Function library: LenzeToolbox
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dnIn_n
DINT
Input signal
Identifier/data type Value/meaning
dnOut_n
DINT
Output signal
• If |dnIn_n| ≤ C04060 the output is set to zero.
• If |dnIn_n| > C04060 the difference multiplied by the parameterised gain is out-
put as output signal.
• The sign results from the sign of dnIn_n and the sign of the selected gain.
• Internally limited to ±200 %
bLimitActive
BOOL
Output signal within the limitation
TRUE The output signal dnOut_n is limited.
Parameter Possible settings Information
C04060 0.00 % 100.00 Dead band
• Initialisation: 1.00 %
C04061 -214748.3647 214748.3647 Gain
• Initialisation: 1.0000
GQ2XWBQ
E/LPLW$FWLYH
GQ,QBQ
/B7E'HDGEDQGBQ
&
*DLQ
&
'HDGEDQG
