3.2 User interface

How to access the FB editor:
1. Go to Project View and select the 9400 controller.
2. Go to Workspace and select the FB Editor tab.

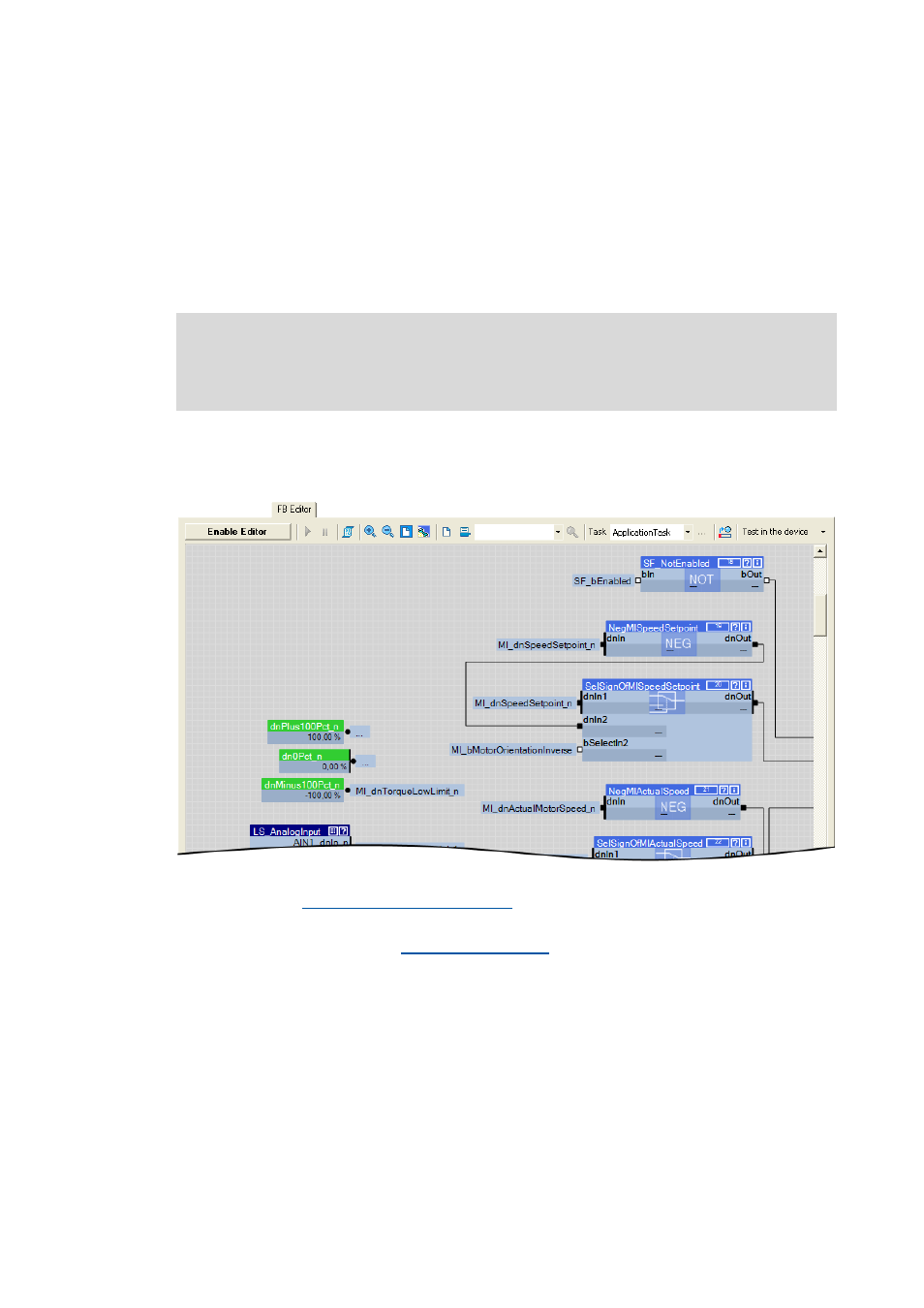

Controller with selected technology application
If you have selected a technology application for the controller from the catalogue, the FB Editor dis-
plays the interconnection of the technology application defined by Lenze:
• First the FB Editor is in the "Viewer" mode, in which the displayed objects/connections cannot
be changed.  Using the FB-Editor as "Viewer" ( 48)
• To be able to reconfigure the defined interconnection and to add further functions, the FB Editor
must be enabled explicitly.  Enabling the FB Editor ( 51)

Note!
The first representation on the FB Editor tab depends on whether you have selected a
technology application for the controller from the catalogue or not.
