L_SdMotorPot - motor potentiometer

490

Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

5.130.1

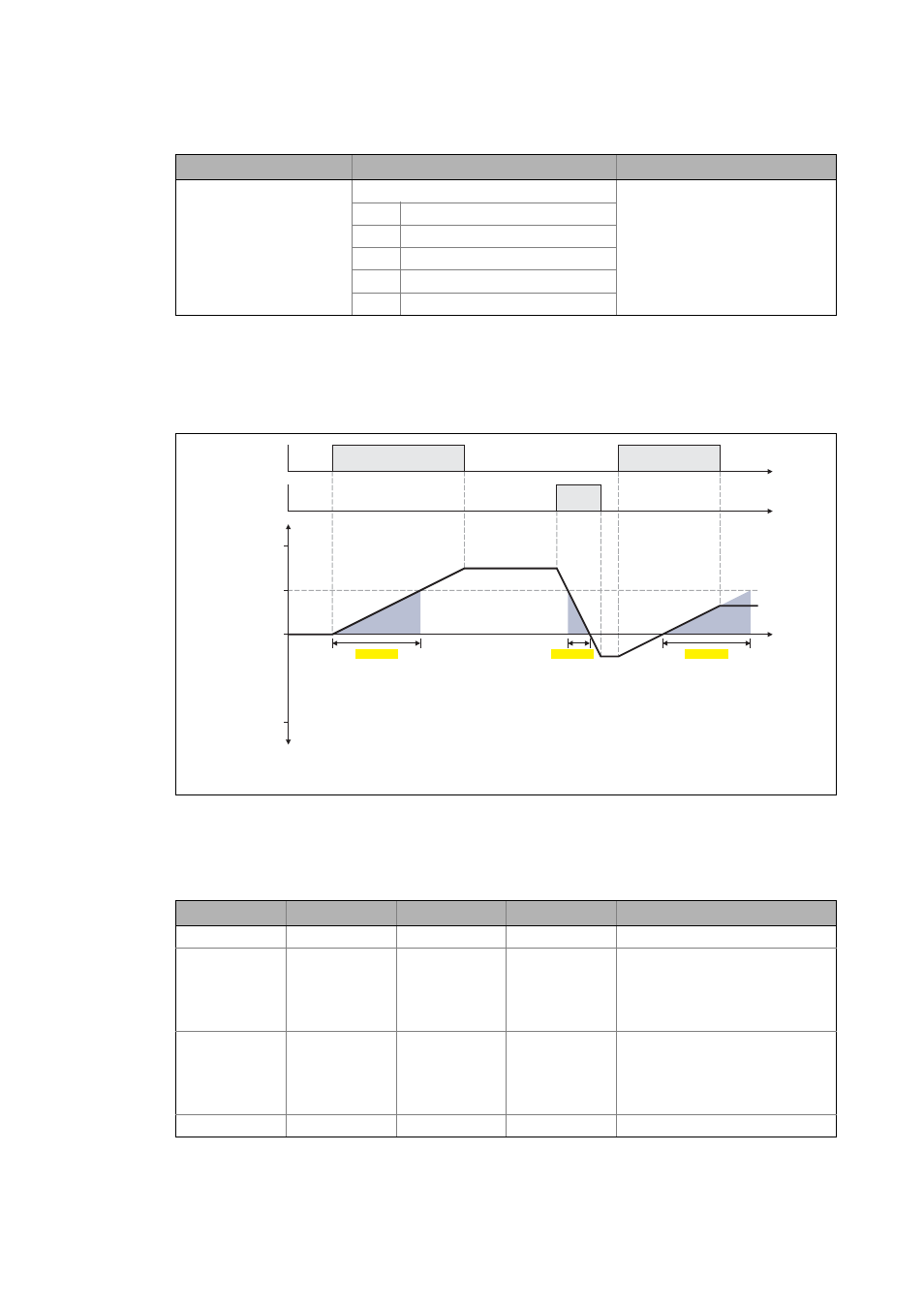

Acceleration and deceleration time

The acceleration and deceleration time can be parameterised independently of each other in

C04361/1 and C04361/2 and relate to a change in the output value dnOut_n by 100 %:

[5-100] Definition of the acceleration and deceleration time

5.130.2

Control signals

C04369

Bit coded:

Status

• Bits that are not itemised are re-

served for future extensions.

bits5 Starting value loaded is limited
bits6 Upper limit value reached
bits7 Lower limit value reached

bits19 Lower limit value > upper limit value
bits31 General error

Parameter

Possible settings

Information

C04361/1: acceleration time

C04361/2: deceleration time

dnOut_n

t

bDown

t

bUp

t

+200 %

0 %

C04361/1

-200 %

+100 %

C04361/2

Œ



C04361/1

Œ

bUp

bDown

bDisable

bLoadStartValue Function

FALSE

FALSE

FALSE

FALSE

dnOut_n remains unchanged.

TRUE

FALSE

FALSE

FALSE

Increase output value

With the acceleration time set in

C04361/1, dnOut_n is increased until

the upper limit value has been rea-

ched (C04360/1).

FALSE

TRUE

FALSE

FALSE

Decrease output value

With the deceleration time set in

C04361/2, dnOut_n is decreased un-

til the lower limit value has been rea-

ched (C04360/2).

TRUE

TRUE

FALSE

FALSE

dnOut_n remains unchanged.
