L_TbCurveAny - Characteristic function
574
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.164.3

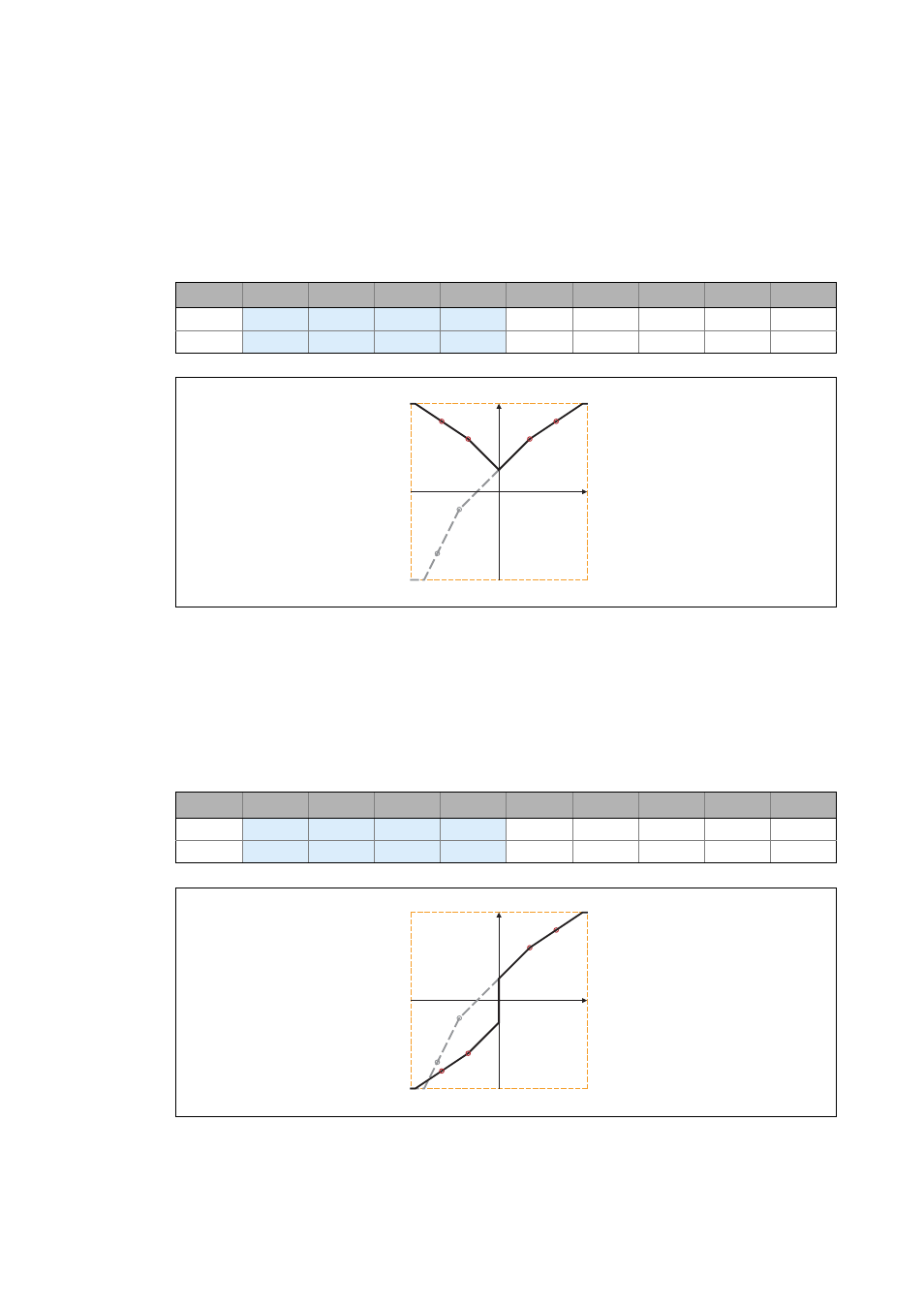

Characteristic mode 1: Symmetrically to y axis
If "Symmetrically to y axis" is selected in C04045, the resulting characteristic is mirrored along the y
axis in the I. and IV. quadrant.
Example
[5-135] Example: Characteristic in characteristic mode 1 (symmetrically to y axis)
5.164.4
Characteristic mode 2: Symmetrically to zero point
If "Symmetrically to zero point" is selected in C04045, the resulting characteristic is mirrored along
the zero point in the I. and IV. quadrant.
Example
[5-136] Example: Characteristic in characteristic mode 2 (symmetrically to zero point)
