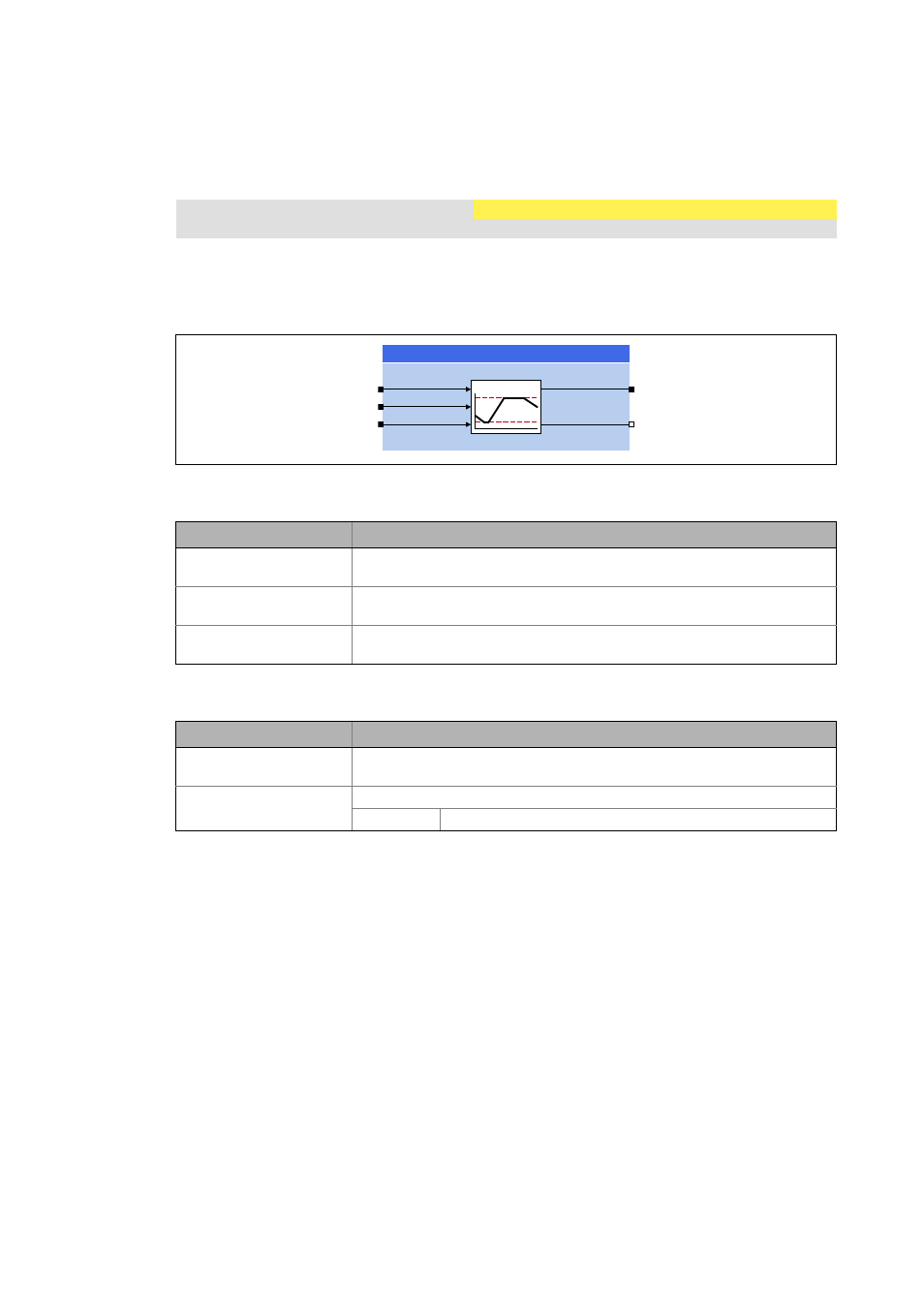

5.177 L_TbLimitInt - limitation (for "INT" data type)
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.177 L_TbLimitInt - limitation (for "INT" data type)
This FB limits a signal of "INT" data type to an adjustable value range.
• The upper and lower limits of the value range are set via the inputs nMaxLimit and nMinLimit.
• The bLimitActive output displays if a limitation is active.
Inputs
Outputs

Tip!
The lower limit must always be set smaller than the upper limit, otherwise the value "0" is
output at nOut.
Function library: LenzeToolbox FB is available as of library V02.05.xx.xx!
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
nIn
INT
Input signal
nMaxLimit
INT
Upper limitation
nMinLimit
INT
Lower limitation
Identifier/data type Value/meaning
nOut
INT
Output signal
bLimitActive
BOOL
Output signal within the limitation
TRUE The nOut output signal is limited.
