Page 149
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
149
5
Function blocks
5.3

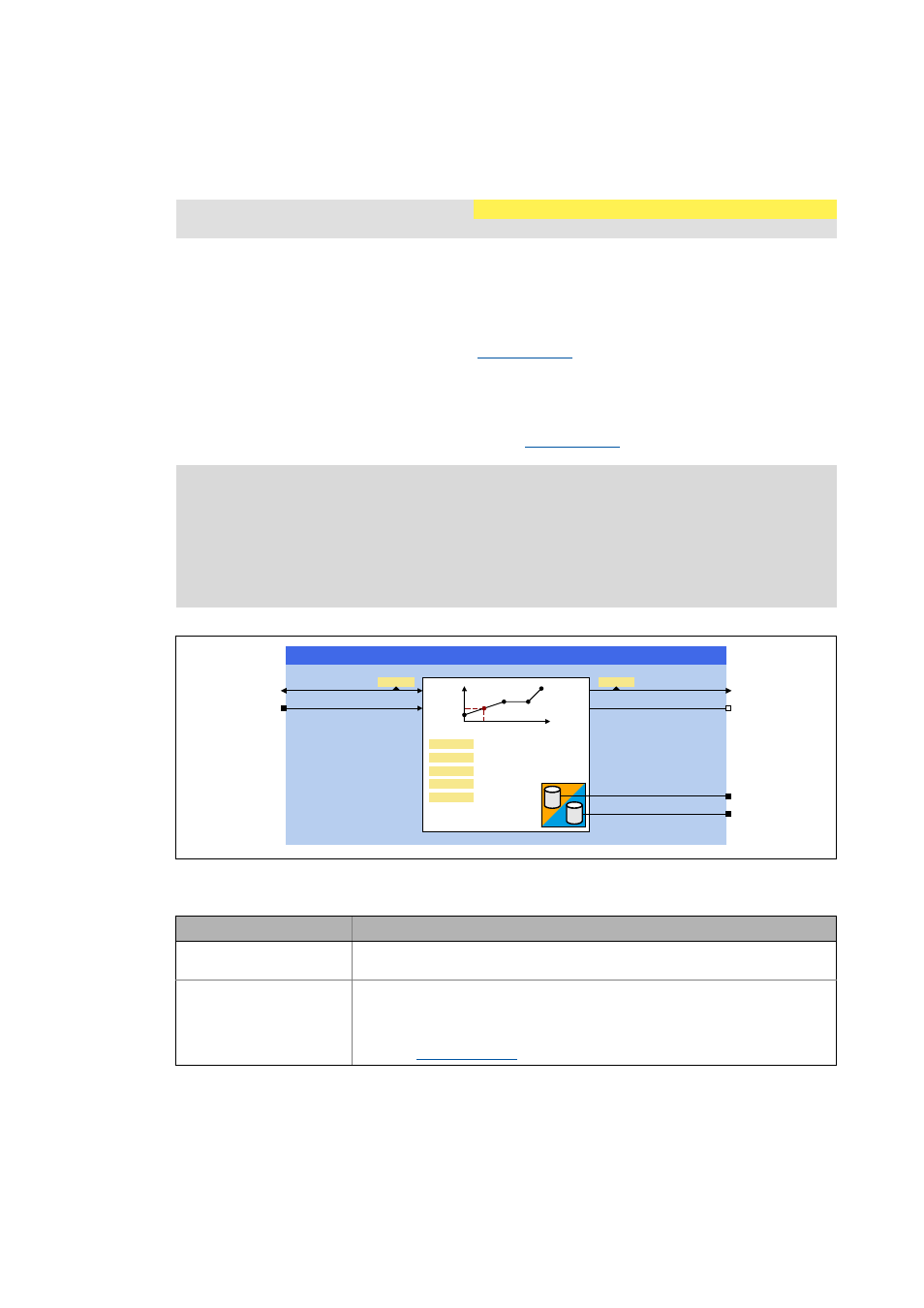

L_CamCurve - curve interpolation for characteristics
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.3
L_CamCurve - curve interpolation for characteristics
From the cam data under the current product number (specified by the LS_CamInterface SB), this FB
reads the table of values of the curve track selected via the input dnTrackNumber and outputs the
corresponding y value for the x value specified.
• Between two points of the table of values a linear interpolation takes place.
• This FB presents a reduced variant of the
FB:
• The FB does not process modulo measuring systems, but reverts solely to the interpolation
point table stored.
• The FB does not have a synchronised track change algorithm.
• For a curve interpolation of a motion profile the
FB is to be used instead.
Inputs
Function library:
LenzeCam
FB permissible for firmware as of V3.0 only!
Runtime software licence:
Motion Control HighLevel
Motion Control TopLevel
Stop!
Ensure that the x measuring system of the curve track matches the input signal, as
otherwise serious malfunctions within the application may occur!
The y measuring system has to be defined as characteristic, otherwise an error is gene-
rated.
Identifier/data type
Information/possible settings
dnXInput
DINT
Input value (x axis)
• C05546 indicates the input value in the real unit of the machine.
dnTrackNumber
DINT
Selection of the curve track
• The acceptance is effected immediately.
• A switch-over of the track number (not product number) synchronised with the
zero crossing can be implemented with an additional function block interconnec-
tion.
GQ<2XWSXW
/B&DP&XUYH
GQ7UDFN1XPEHU
GQ;,QSXW
&
&
E(UURU
& ;D[LVXQLW & 6WDWH ;$[LV'DWD <$[LV'DWD &DPD[LVGDWD ; < ; <
& ;D[LVQDPH
&
