5 Function blocks

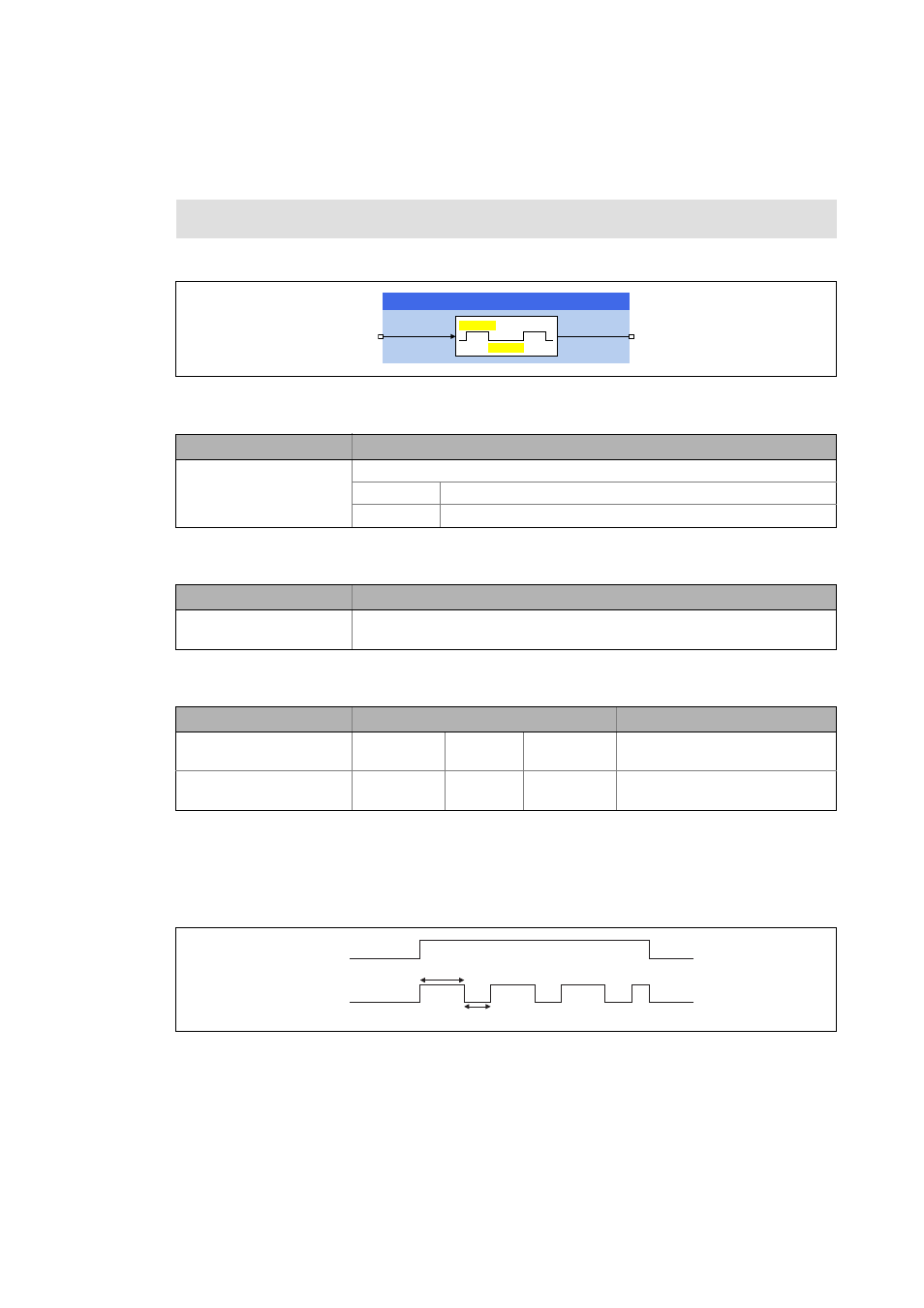

5.192 L_TbOscillator - rectangular signal generator
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.192 L_TbOscillator - rectangular signal generator
This FB can be used to generate a Boolean square wave signal with a variable high/low time.
Inputs
Outputs
Parameter
5.192.1 Function
If the FB is activated by setting bEnable to TRUE, the set square wave signal is output to bOut, star-
ting with the HIGH state:
• If bEnable is reset to FALSE, the output bOut is also immediately reset to FALSE.
Function library: LenzeToolbox
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
bEnable
BOOL
Activating the signal generator
FALSE Signal generator deactivated, bOut = FALSE.
TRUE Signal generator activated.
Identifier/data type Value/meaning
bOut
BOOL
Boolean square wave signal
Parameter Possible settings Information
C04020 0.000 s 60.000 ON time
• Initialisation: 0.001 s
C04021 0.000 s 60.000 OFF time
• Initialisation: 0.001 s
/B7E2VFLOODWRU
E(QDEOH E2XW &
&
bEnable
bOut
C04020
C04021
