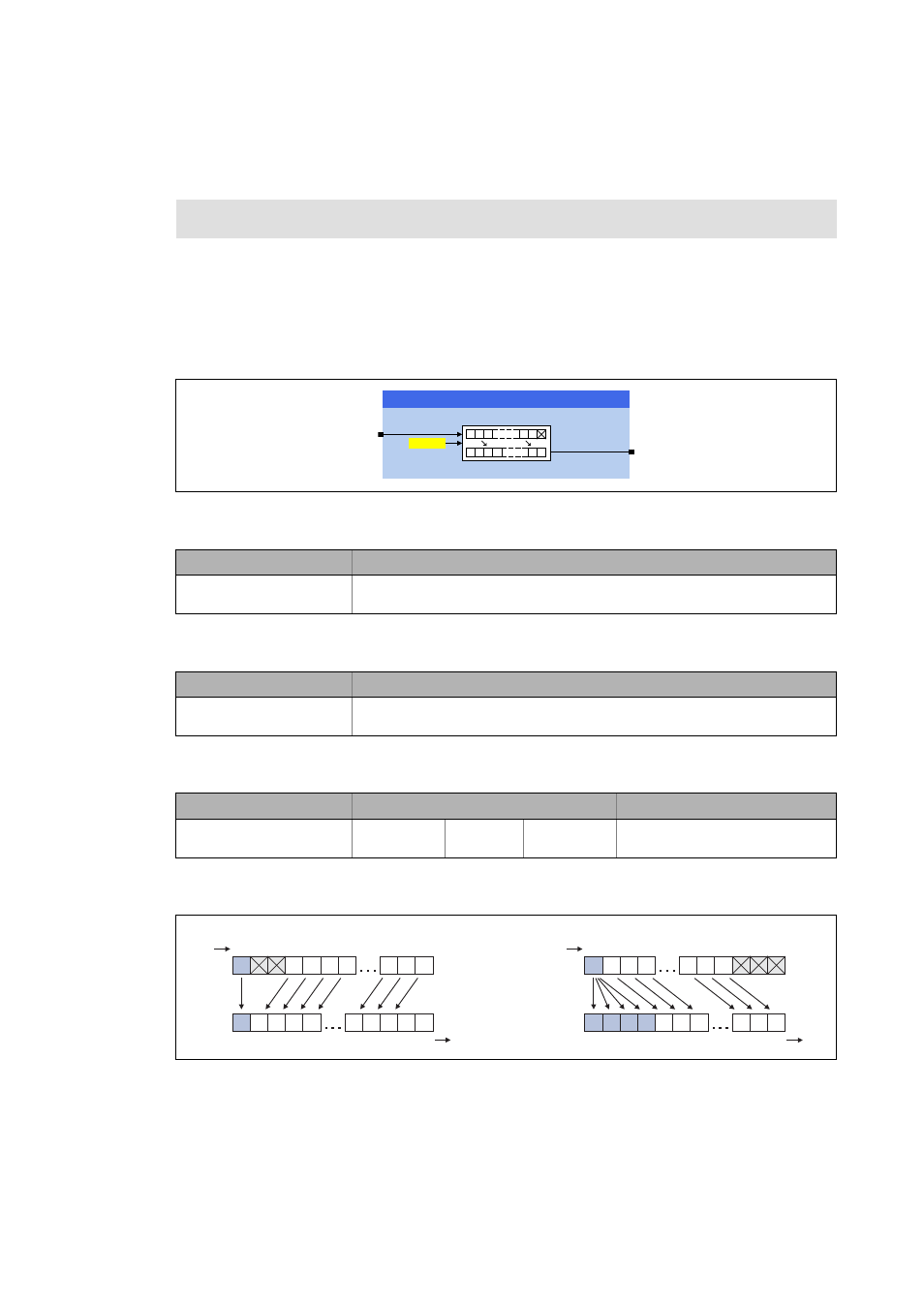

5.15 L_DcBitShift - shift operation
This FB carries out a bit shift operation with a "DINT" value.
• The shift factor, i.e. the number of bits by which the input value is shifted to the left or right, is
defined by a parameter.
• The result of the shift operation is output at the output dnOut.
• The sign remains.
Inputs
Outputs
Parameter
Example
Function library: LenzeDataConversion
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dnIn
DINT
Input signal
Identifier/data type Value/meaning
dnOut
DINT
Output signal according to the parameterised bit shift operation
Parameter Possible settings Information
C04190 -31 31 Shift factor
• Initialisation: 0
/B'F%LW6KLIW
GQ,Q
GQ2XW %LW %LW &
6KLIWIDFWRU
Bit 0 Bit 31
Bit 0
dnOut
Bit 31
dnIn
0 0
Bit 0 Bit 31
Bit 0
dnOut
Bit 31
dnIn
Shift factor = +2 Shift factor = -3
