5 Function blocks
5.161 L_TbCompare_n - scaled comparison
560
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.161.2 Function 2: dnIn1_n > dnIn2_n
Selection: C04080 = "1"
• This function serves, for instance, to implement the comparison "actual speed is higher than a
limit value" (n
act
> n
x
) for one direction of rotation.

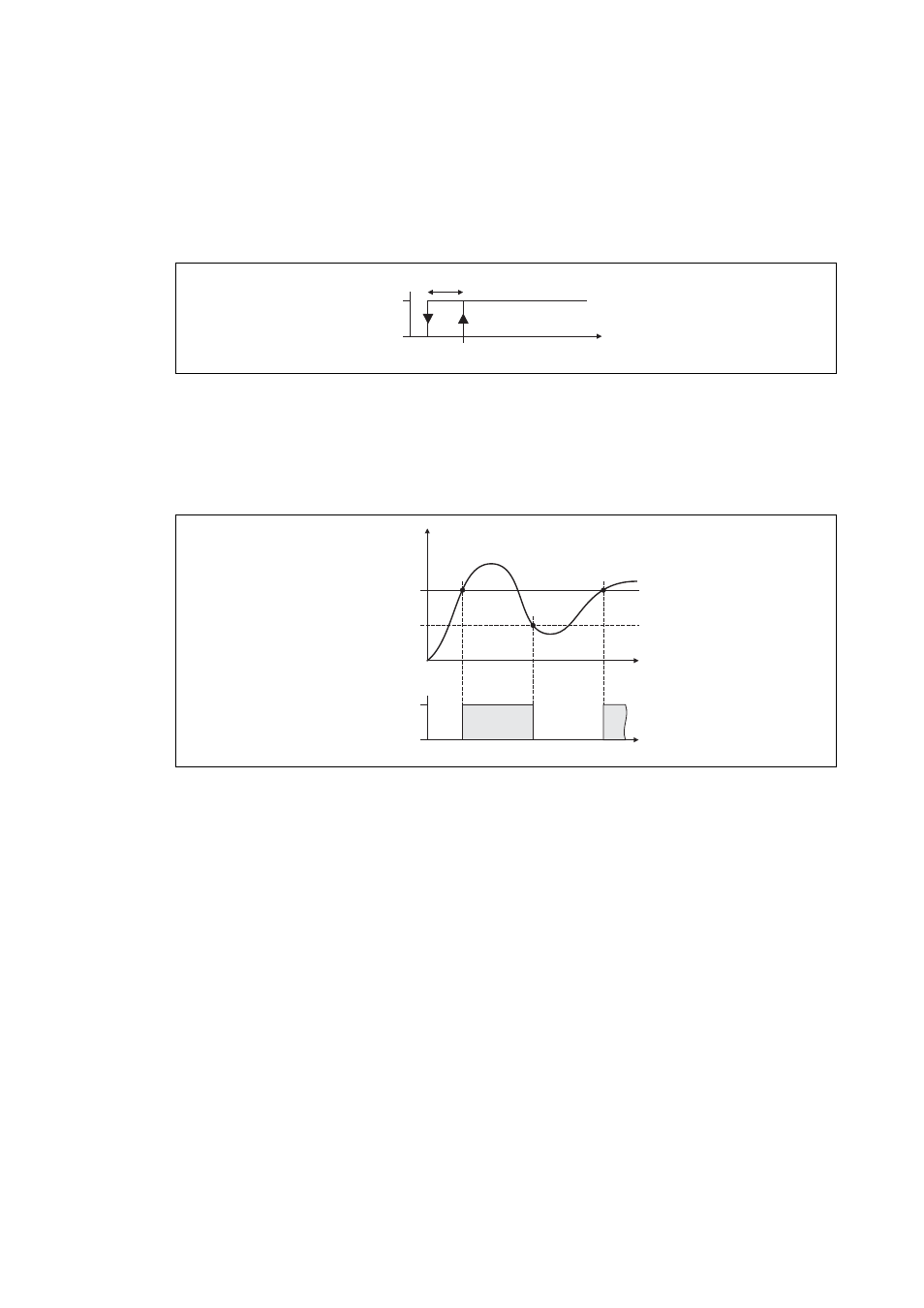

[5-121] Function 2: Switching performance
Functional sequence
1. If the value at dnIn1_n exceeds the value at dnIn2_n, bOut changes from FALSE to TRUE.
2. Only if the signal at dnIn1_n falls below the value at dnIn2_n - C04082 again, bOut changes
from TRUE to FALSE.
[5-122] Function 2: Example
TRUE
FALSE
bOut
C04082
dnIn2_n
dnIn1_n
dnIn1_n
dnIn2_n
C04082
TRUE
FALSE
bOut
t
t
