Page 43

Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05

Working with the FB editor

3.2

User interface

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _



Tip!
You can also enter any search text in the input field.

• If you click the

icon, the cutout is moved to the object which contains this search text.

• Another click on the

icon leads to a new search. Thus, you can navigate successively

to all objects which contain the entered search text.

• The search text does not consider case sensitivity.

3.2.4

Task selection

A task describes the runtime characteristics, such as the cycle time and the priority of one or several

programs running within the controller. Together with the program, the task makes a runtime sys-

tem.

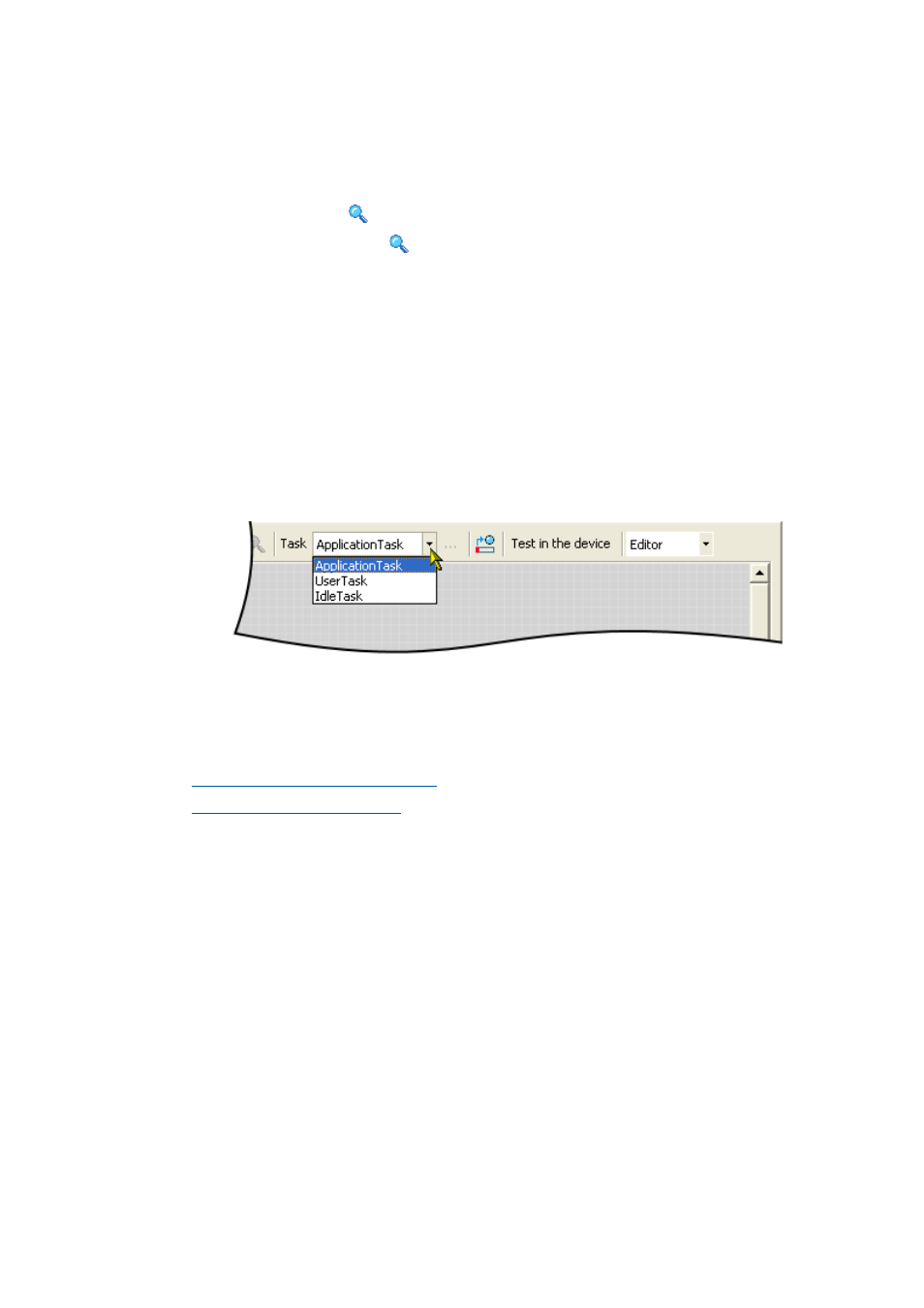

• The task to be displayed in the drawing area or edited in the activated FB Editor can be selected

via the list field (same name):

• By clicking the ... button right beside the list field, you open a dialog field where you can see the

properties (interval, type, watchdog, sensitivity) of the selected task. The task properties can

also be changed, if required, in the activated FB Editor.

Related topics:


