5.209 L_WndStopCtrl - stop controller
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

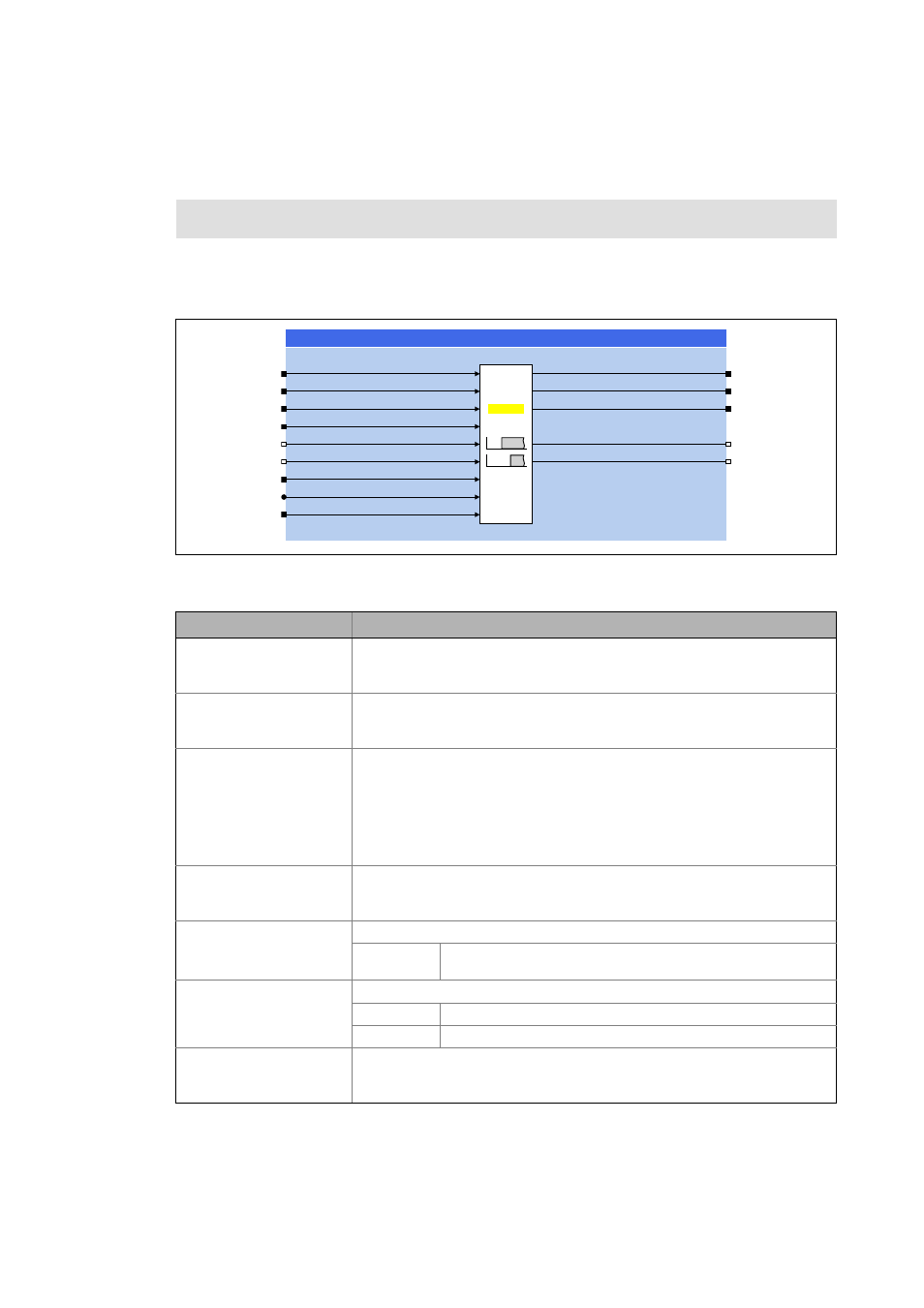

5.209 L_WndStopCtrl - stop controller
This FB serves to monitor the residual length to the reference diameter, on the basis of the current
diameter and the material thickness. Output signals for an accurately timed braking and a limit stop
are provided.
Inputs
Function library: LenzeWinder
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dwDiameter
DWORD
Current reel diameter in [μm]
• 1000 μm ≡ 1 mm; 1000000 μm ≡ 1 m
• Internal limitation to 10 m
dwThickness
DWORD
Current material thickness in [μm]
• 1000 μm ≡ 1 mm
• Internal limitation to 30 mm
dwNominalTif
DWORD
Rated deceleration time for braking process in [ms]
• Is triggered if the pre-switch-off length has been reached (output
bStartDec = TRUE).
• The reference value can be selected in C04880 (Lenze setting: material speed set-
point).
• 1000 ms ≡ 1 s
• Internal limitation to 10000 s.
dwResidualLength
DWORD
Remaining residual length after the stop in [mm]
• 1000 mm ≡ 1 m; 1000000 mm ≡ 1 km
• Internal limitation to 1000 km
bReset
BOOL
Reset stop controller
TRUE The stop controller and the digital output signals bStartDec and
bRefReached are reset.
bRewind
BOOL
Selection of unwinding/rewinding operation
FALSE Unwinding operation
TRUE Rewinding operation
dwReferenceLineSpeed
DWORD
Maximum material speed in [cm/min]
• 2500 cm/min ≡ 25.00 m/min
• Internal limitation to 2000 m/min
GQ/LQH6SHHGBQ
GZ5HIHUHQFH/LQH6SHHG
GZ7KLFNQHVV
GZ'LDPHWHU
GZ5HI'LDPHWHU
E5HVHW
GZ/HQJWK7R5HI
E5HI5HDFKHG
GZ7LPH7R5HI
GZ6WRS/HQJWK
E6WDUW'HF
GZ5HVLGXDO/HQJWK
GZ1RPLQDO7LI
/B:QG6WRS&WUO
&75/
E5HZLQG
&
