3 Working with the FB editor
3.2 User interface
44
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.2.5 Editor view/overview

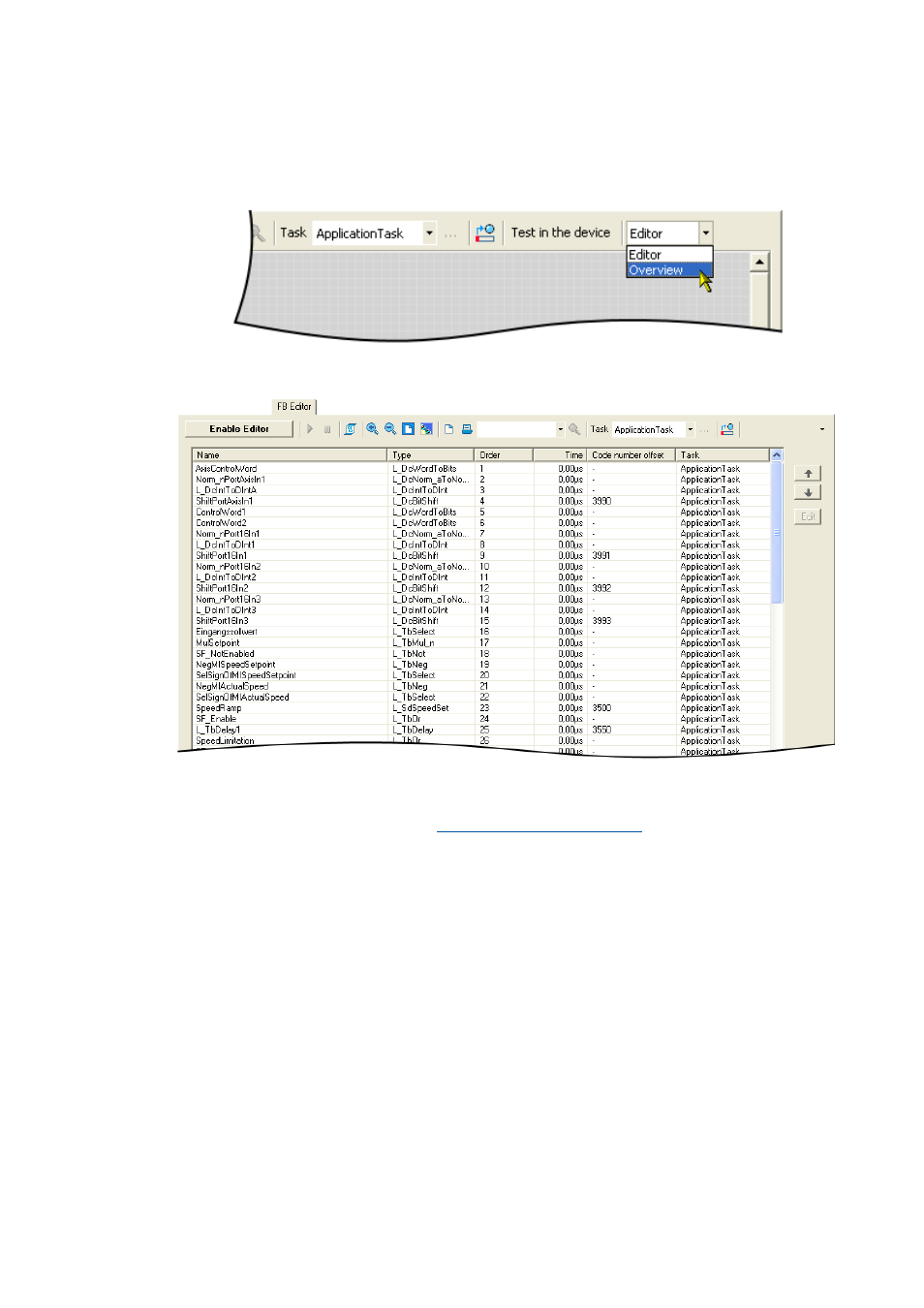

Use the rightmost list field to change from the Editor to the overview and vice versa:
The overview displays all function blocks, system blocks, and port blocks of the interconnection in
the order of their processing:
• As of the controller firmware V5.0 the average runtime is displayed for each function block.
• When the FB Editor is activated, the processing order of the function blocks can be changed via
the arrow keys on the right side.  Changing the processing order ( 81)
