3 Working with the FB editor
3.4 Creating/reconfiguring the interconnection
78
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.4.5.2 Creating a connection using port identifiers

How to create a connection with port identifiers:

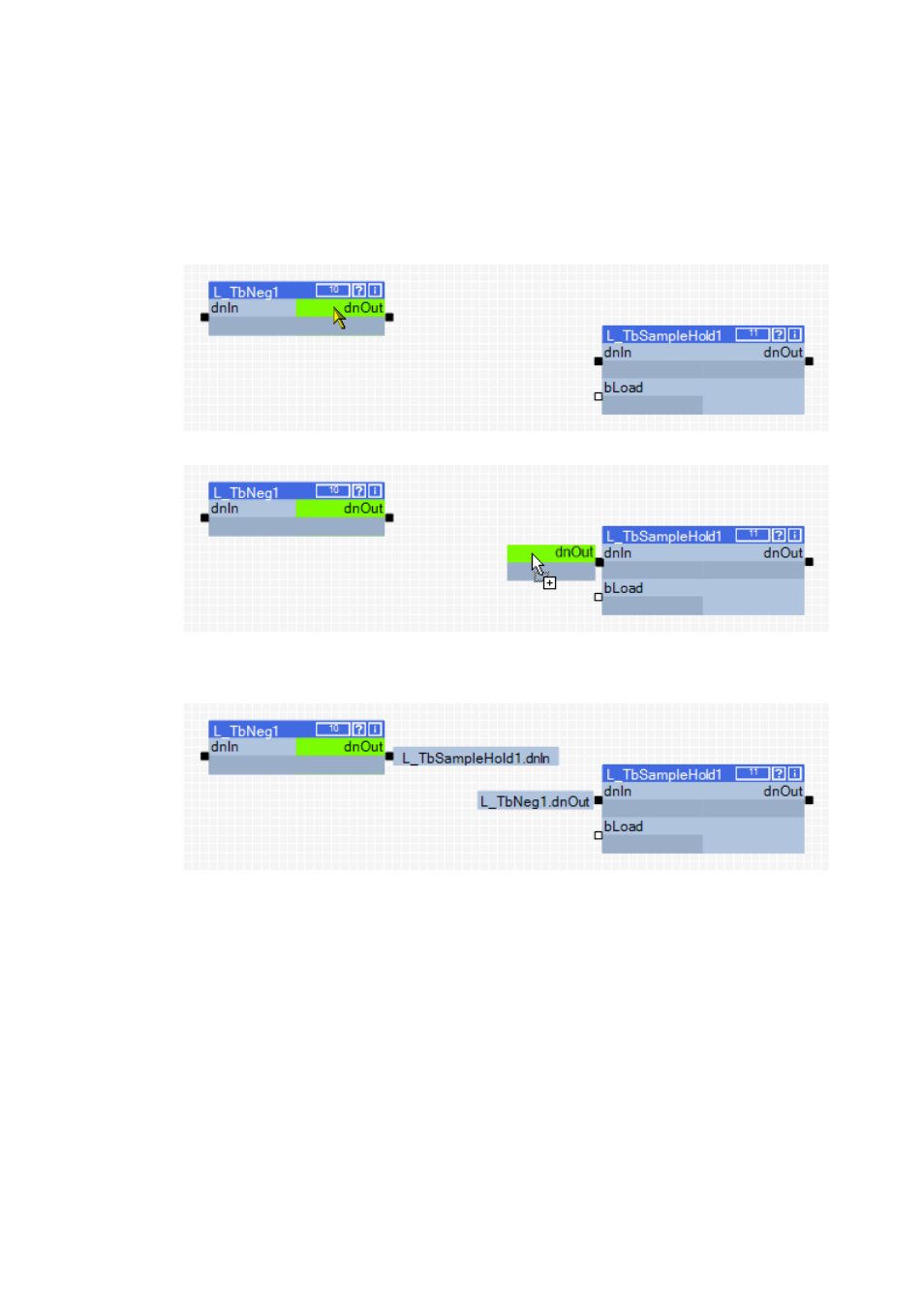

1. Click the port identifier.
• The selected port is highlighted in light green:
2. Drag the port segment to the required port while keeping the left mouse button pressed:
After releasing the mouse button, the connection via port identifiers (flags) is created. The
corresponding port identifier consists of the instance name and the name of the input/out-
put:

Tip!
The command Show as line in the context menu of a flag serves to change the representa-
tion of the connection at any time.
