5 Function blocks
5.159 L_TbAnd - AND with 2 inputs
552
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

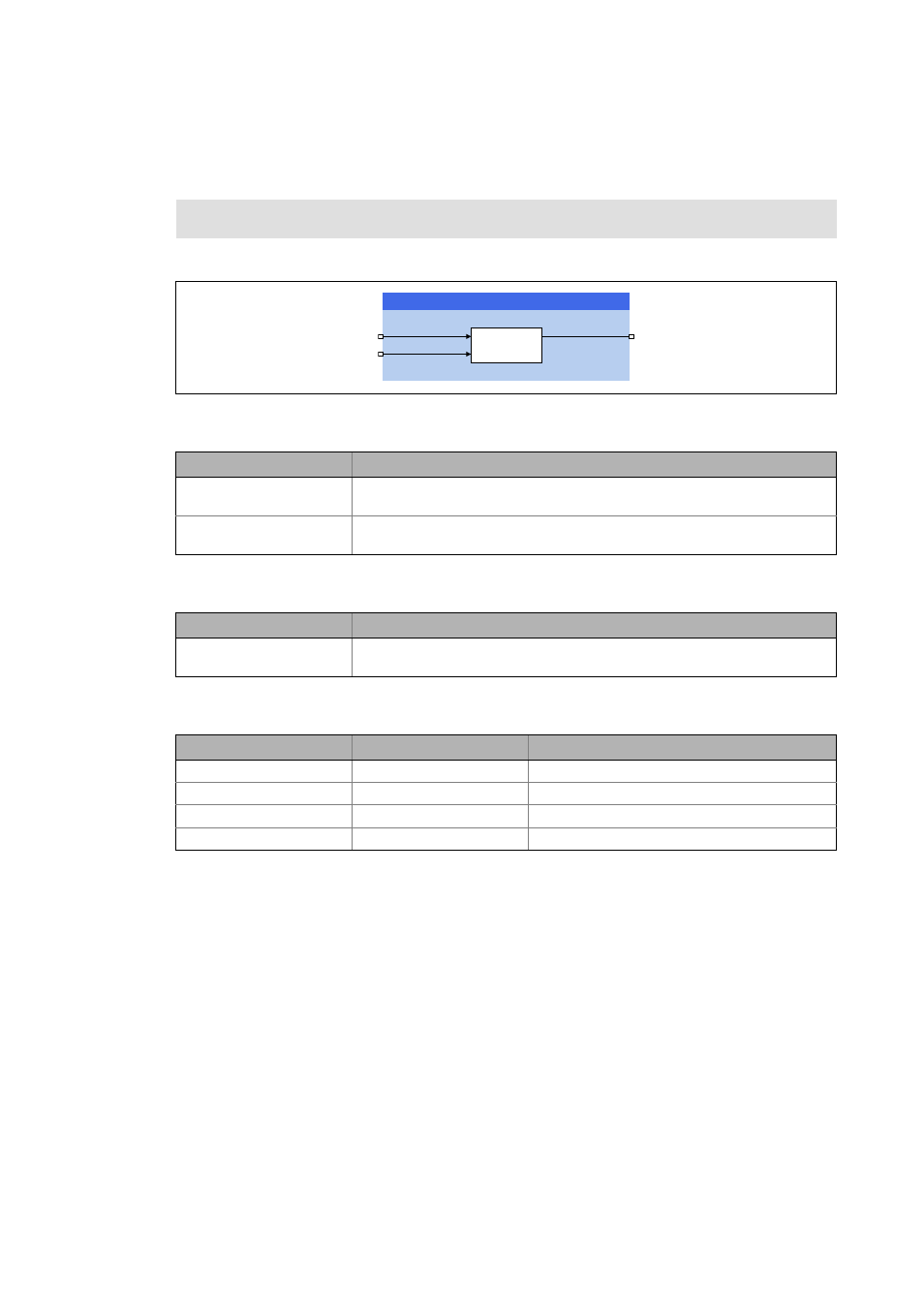

5.159 L_TbAnd - AND with 2 inputs
This FB carries out a logic AND operation of binary signals.
Inputs
Outputs
Function
Function library: LenzeToolbox
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
bIn1
BOOL
Input 1
bIn2
BOOL
Input 2
Identifier/data type Value/meaning
bOut
BOOL
Result of the AND operation
bIn2 bIn1 bOut
FALSE FALSE FALSE
FALSE TRUE FALSE
TRUE FALSE FALSE
TRUE TRUE TRUE
E2XW
E,Q
E,Q
/B7E$QG
