5 Function blocks
5.66 L_DevBrakeStateDecoder - status signals of the basic function "Brake control"
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.66 L_DevBrakeStateDecoder - status signals of the basic function "Brake control"
This FB decodes the status output signal dnState of the SB LS_Brake into individual boolean status
signals for further use in the FB interconnection.
• The functionality corresponds to a converter "DINTBOOL", but the boolean outputs of this FB
have the same names according to their meaning.
Inputs
Function library: LenzeDevice9400
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dnState
DINT
Input for the bit-coded status signal of the basic function "Brake control".
• Connect this input with the output of the same name of the SB LS_Brake.

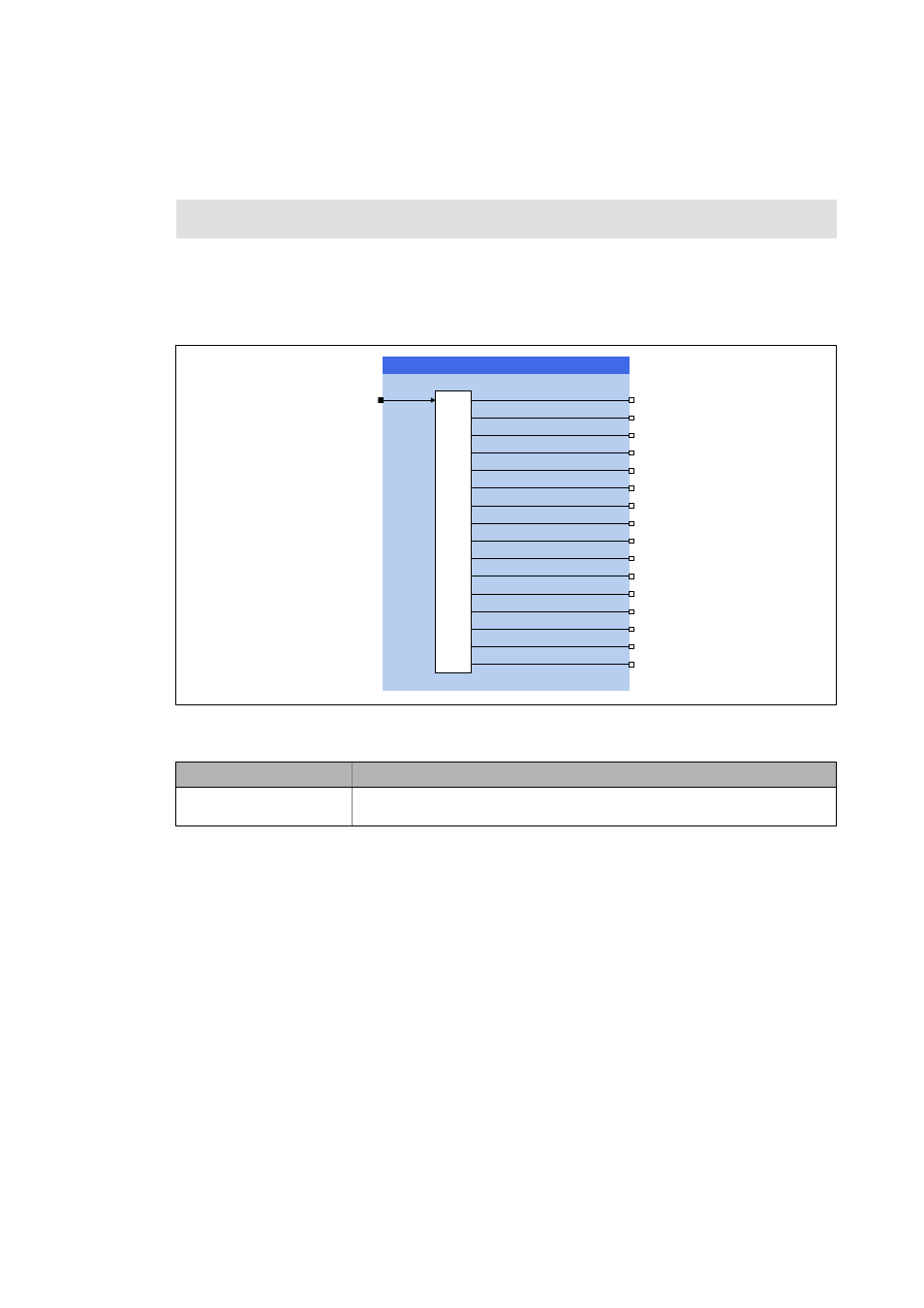

/B'HY%UDNH6WDWH'HFRGHU
GQ6WDWH E$FWLYH
E0RGXO8VHG
E%UDNH5HOHDVHG
E(UURU$FWLYH
E*ULQG,Q
E7RUTXH7HVW
E'LUHFW0RGH
E$XWR0RGH
E(UU([W)HHGEDFN
E(UU3RV'ULIW
E(UU0RGXO
E7LPH$FWLYDWH
E*ULQG,Q'RQH
E7RUTXH7HVW'RQH
/6B%UDNHVWDWH
E(UURU7RUTXH&WUO
E6SHHG%HORZ0LQ6SHHG
