5
Function blocks
5.132
L_SdProcessController - PID controller with limitation
496
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.132
L_SdProcessController - PID controller with limitation

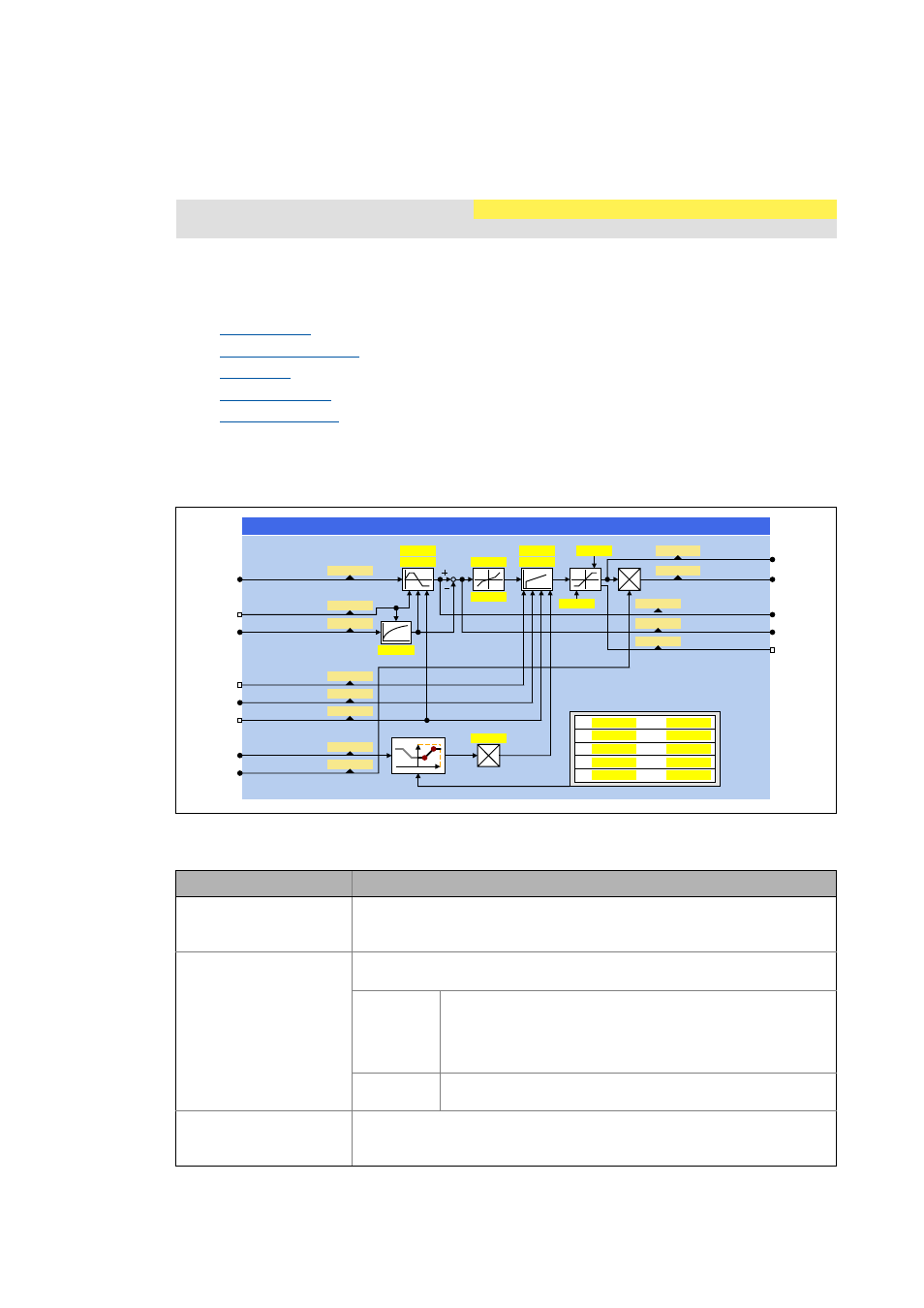

This function block provides a comprehensive PID controller with setpoint and actual value proces-
sing as well as characteristic function.
• The function block basically consists of an interconnection of the following function blocks:
•
•
•
•
•
• The value output to the output dnOut_n is internally limited to the limit range parameterised
in C04381 and C04382 (default setting ±200 %).
• The bLimitActive output displays if a limitation is active.
Inputs
Function library:
LenzeServoDrive
FB is available as of library V02.05.xx.xx!
Runtime software licence:
Motion Control HighLevel
Motion Control TopLevel
Identifier/data type
Information/possible settings
dnSetValue_n
DINT
Scaled process setpoint
• Scaling: 100 % ≡ 2
30
≡ 1073741824
• Display parameter: C04388/1
bLoadActValue
BOOL
Initialise ramp function generator and PT1 filter
• Display parameter: C04389/1
FALSE The ramp function generator runs with the acceleration/decelerati-
on time set in C04375 from the actual value loaded via dnActValue_n
to the setpoint applied to dnSetValue_n.
• In the Lenze setting, the acceleration/deceleration time (C04375)
is set to zero.
TRUE The dnActValue_n actual value is loaded into the ramp function ge-
nerator and PT1 filter. The current system deviation is zero.
dnActValue_n
DINT
Scaled actual process value for the ramp function generator and PT1 filter
• Scaling: 100 % ≡ 2
30
≡ 1073741824
• Display parameter: C04388/2
GQ6HW9DOXHBQ
/B6G3URFHVV&RQWUROOHU
\[
\[
\[
\[
\[
&
&
&
&
&
&
&
&
&
[
[
[
[
&
[
&
)LOWHUWLPHFRQVWDQW
&
5DPSWLPH
&
E/RDG$FW9DOXH
&
GQ$FW9DOXHBQ
&
&
5HGXFHGJDLQ
&
5DQJH
GQ2XW5HGBQ
E/LPLW$FWLYH
&
&
&
7G
& 7Q
E/RDG,QW9DOXH
&
GQ,QW9DOXHBQ
&
E5HVHW
&
GQ*DLQ$GDSWBQ
&
&
&
&
GQ2XWBQ
GQ$FW6HW9DOXHBQ
GQ'HYLDWLRQBQ
& *DLQ
&
&
GQ,QIOXHQFHBQ
&
&XUYHFKDUDFWHULVWLFIRUP
&
