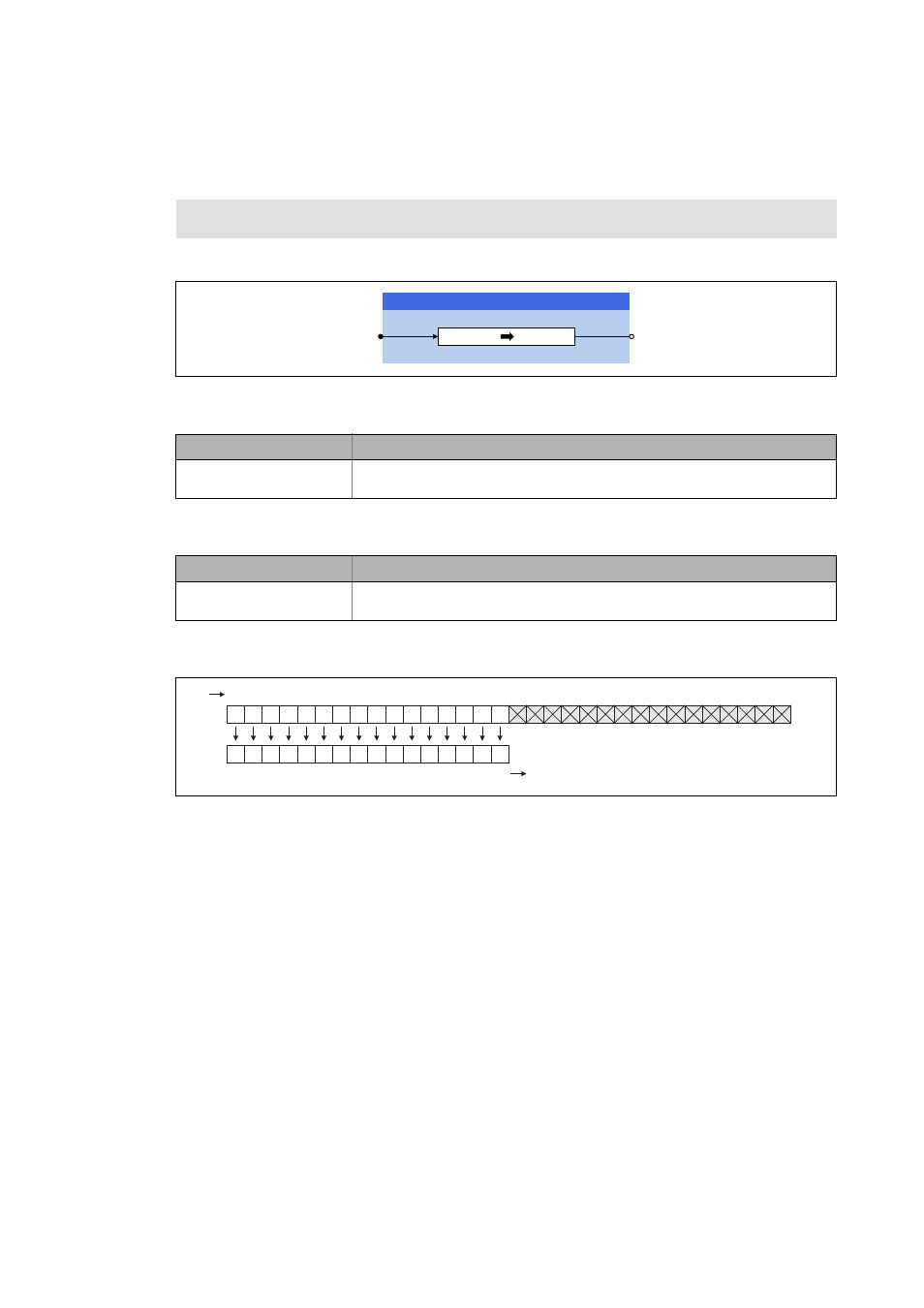

5.45 L_DcNorm_nToNorm_a - signal converter
This FB converts a scaled 32-bit signal into a scaled 16-bit signal.
Inputs
Outputs
Function
Function library: LenzeDataConversion
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dnIn_n
DINT
Input signal
• 100 % ≡ 2 30 ≡ 1073741824
Identifier/data type Value/meaning
nOut_a
INT
Output signal
• 100 % ≡ 214 ≡ 16384
Q2XWBD GQ,QBQ
/B'F1RUPBQ7R1RUPBD
>@ %LW >@ %LW
Bit 0 Bit 31
Bit 0
nOut_a
dnIn_n
Bit 15
±
±
