3 Working with the FB editor
3.4 Creating/reconfiguring the interconnection
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.4.2.4 Creating/inserting a variable

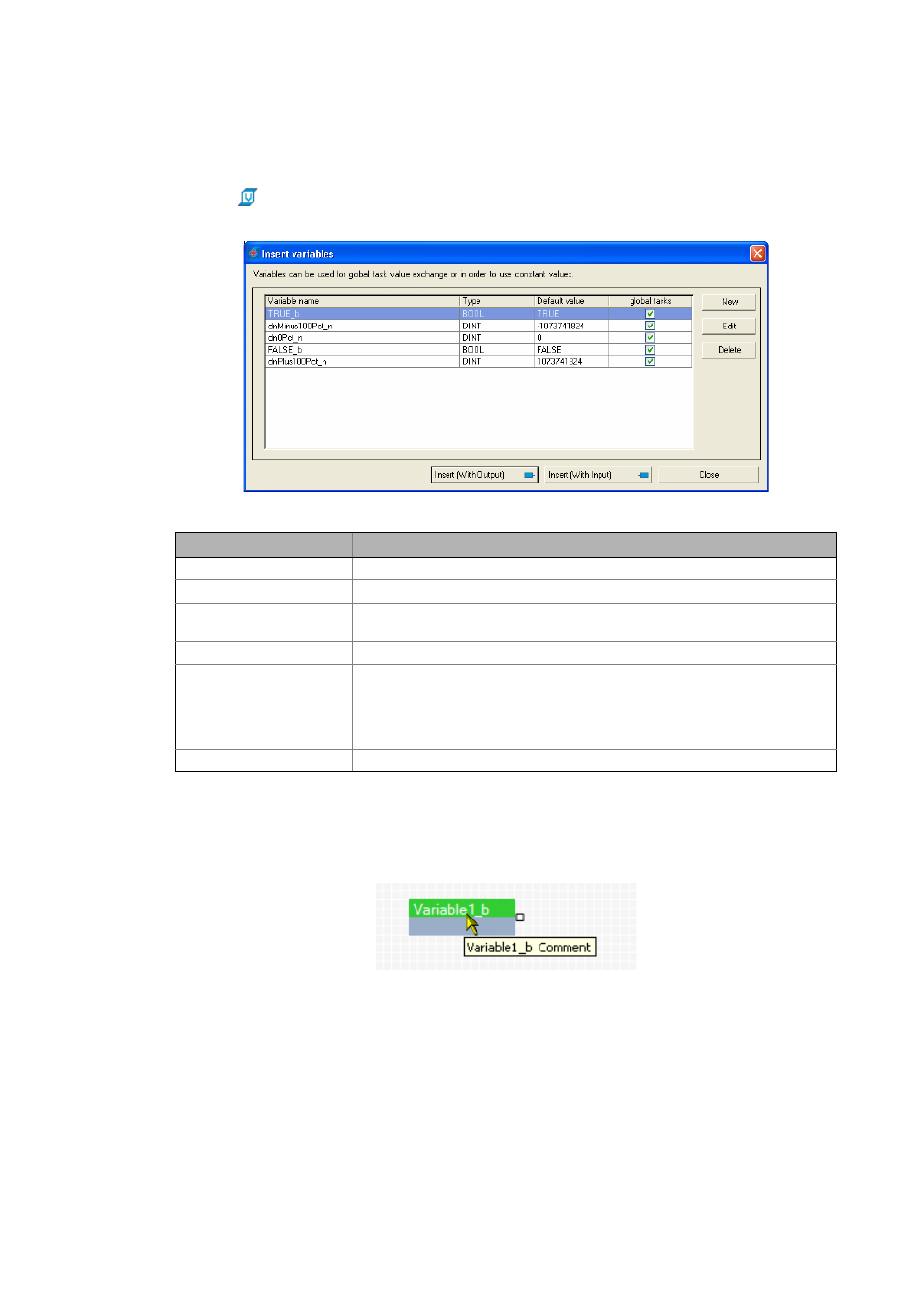

Click the icon in the FB Editor toolbar to open the Insert variables dialog box.
• The list field contains all variables created for the application:
• The buttons serve to execute the following functions:

Tip!
As of the »Engineer« V2.10 a comment can be inserted for variables when being declared.
The comment is then shown as "tooltip" in the drawing area if you keep the mouse pointer
for a short time on the variable block:
Button Function
New Create new variable.
Edit Edit selected variable.
Delete Delete selected variable.
• You can only delete a variable if it is not used anymore in the interconnection.
Insert (with output) Insert selected variable with output into the interconnection and close dialog box.
Insert (with input) Insert selected variable with input into the interconnection and close dialog box.
• For a value assignment (write access), a variable can be inserted exactly once into
the interconnection.
• If the selected variable is already included in the interconnection with input, this
button is deactivated.
Close Close dialog box without inserting a variable into the interconnection.
