5 Function blocks
5.104 L_PosGetProfile - profile data tables
388
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

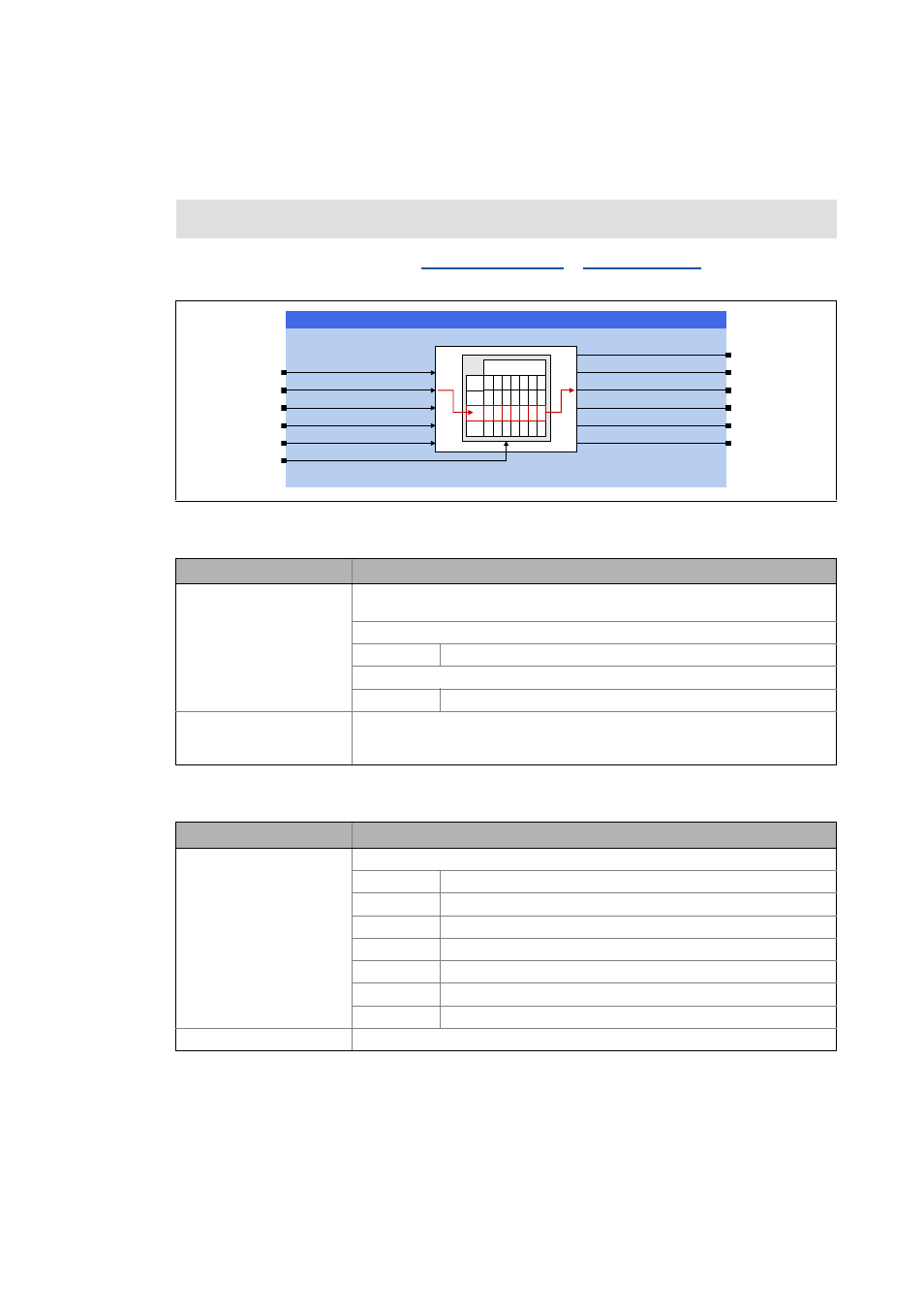

5.104 L_PosGetProfile - profile data tables
Together with an FB instance of type L_PosPositionerTable or L_PosProfileTable this FB provides five
profile data sets that can be selected.
Inputs
Outputs
Function library: LenzePositioning
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dwProfileNumber1...5
DWORD
Number of the profile whose profile data is to be output at ProfileData1 ...
ProfileData5.
In connection with an FB instance of type L_PosPositionerTable:
1 ... 75 Profiles 1 ... 75
In connection with an FB instance of type L_PosProfileTable:
1 ... 4 Profile 1 ... 4
FBData Interface for the transmission of the FB instance data.
• Connect this input with the output of the same name of the FB instance of type
L_PosPositionerTable or L_PosProfileTable.
Identifier/data type Value/meaning
dnState
DINT
Status (bit coded)
Bit15 Error is active (collective message).
bit16 dwProfileNumber1 is not within the valid range.
bits17 dwProfileNumber2 is not within the valid range.
bits18 dwProfileNumber3 is not within the valid range.
Bit 19 dwProfileNumber4 is not within the valid range.
bits20 dwProfileNumber5 is not within the valid range.
bits27 Error: Invalid FB instance data.
ProfileData1...5 Profile data of the profile selected via dwProfileNumber1...5.
/B3RV*HW3URILOH
GZ3URILOH1XPEHU
GZ3URILOH1XPEHU
)%'DWD
GZ3URILOH1XPEHU
GZ3URILOH1XPEHU
3URILOH'DWD
3URILOH'DWD
GQ6WDWH
GZ3URILOH1XPEHU
352),/(
3URILOH'DWD
3URILOH'DWD
3URILOH'DWD
