5 Function blocks
5.18 L_DcBitShiftInt - shift operation
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

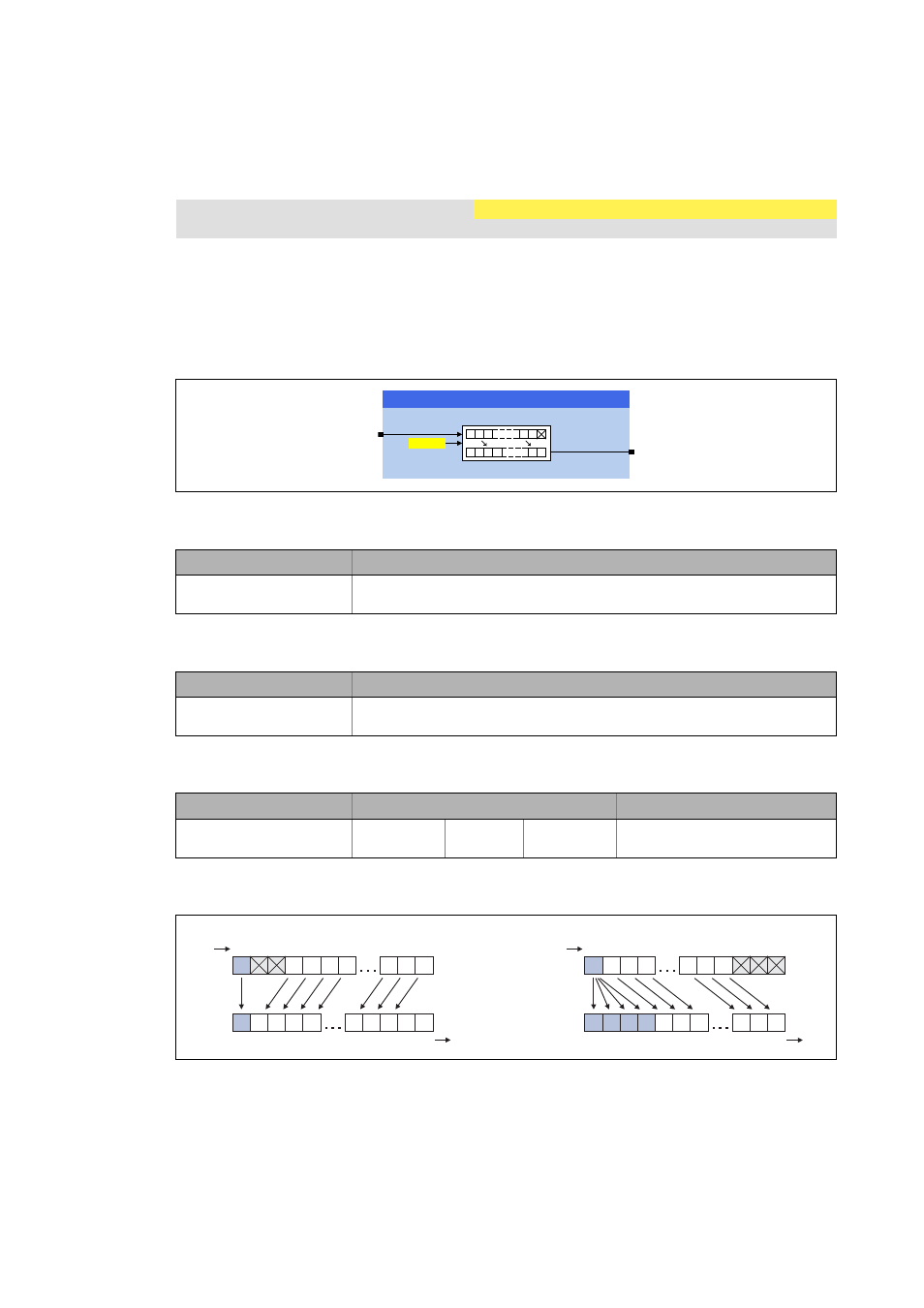

5.18 L_DcBitShiftInt - shift operation
This FB carries out a bit shift operation with a "INT" value.
• The shift factor, i.e. the number of bits by which the input value is shifted to the left or right, is
defined by a parameter.
• The result of the shift operation is output at the output nOut.
• The sign remains.
Inputs
Outputs
Parameter
Example
Function library: LenzeDataConversion FB is available as of library V02.02!
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
nIn
INT
Input signal
Identifier/data type Value/meaning
nOut
INT
Output signal according to the parameterised bit shift operation
Parameter Possible settings Information
C04193 -15 15 Shift factor
• Initialisation: 0
/B'F%LW6KLIW,QW
Q,Q
Q2XW %LW %LW &
6KLIWIDFWRU
Bit 0 Bit 15
Bit 0
nOut
Bit 15
nIn
0 0
Bit 0 Bit 15
Bit 0
nOut
Bit 15
nIn
Shift factor = +2 Shift factor = -3
