5 Function blocks
5.71 L_DevParReadFix - read parameter
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

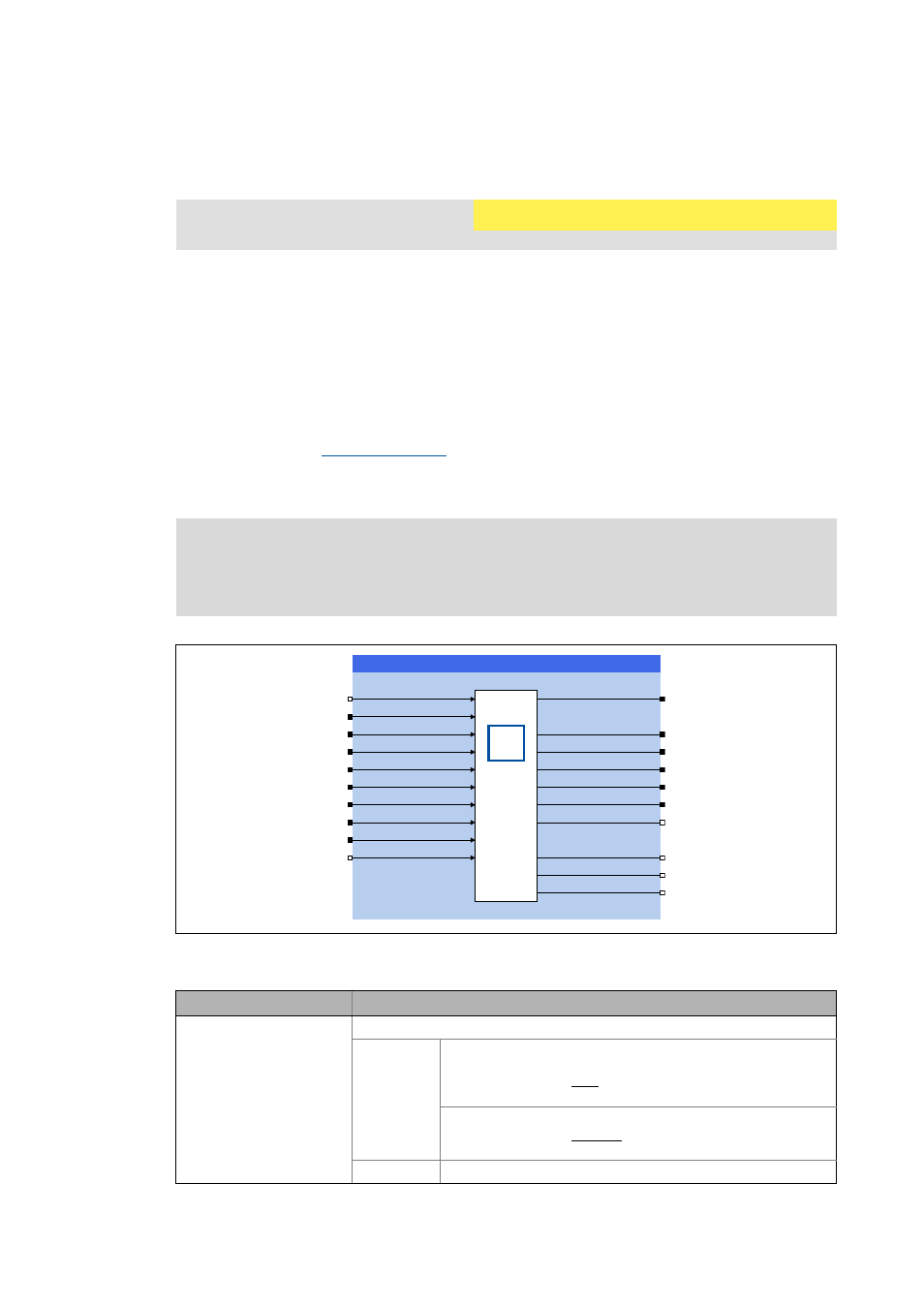

5.71 L_DevParReadFix - read parameter
This FB reads a parameter and provides the read value to the application via the outputs dnData ...
bData.
• All internal parameters (codes) of the controller can be read.
•
From controller software version V08 and library V02.05.xx.xx , parameters of another node con-
nected to the system bus (CAN) can also be read if a suitable SDO server channel has been para-
meterised at the remote node for this purpose.
• The parameters of the remote node can be addressed by entering either the code or the CA-
Nopen index.
• In contrast to the L_DevReadParDInt FB, the parameter of this FB to be read is addressed via FB
inputs and not via parameters.
• The FB supports both one-time and cyclic reading in an adjustable time interval.
Inputs
Function library: LenzeDevice9400 FB is available as of library V02.00.xx.xx!
FB may only be used for firmware as of V1.50!
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel

Note!
The following applies to the 9400 ServoPLC: The FB must not be called with the same in-
stance in several tasks.
Identifier/data type Information/possible settings
bExecute
BOOL
Activates a read request.
FALSETRUE If the cycle time (dwCycleTime) = "0 ms" or the dwCycleTime input is
not assigned:
Read parameter value once which has been addressed via the inputs
dwCode, dwSubcode, dwComChannel and dwTargetAddress.
If cycle time (dwCycleTime) > "0 ms":
Read parameter value cyclically which has been addressed via the in-
puts dwCode, dwSubcode, dwComChannel and dwTargetAddress.
TRUEFALSE Deactivate cyclic reading again.
/B'HY3DU5HDG)L[
GQ6WDWH
E%XV\
E'RQH
E(UURU
GQ'DWD
E([HFXWH
&
5HDG
SDUDPHWHU GZ&RGH
GZ6XEFRGH
GZ&RP&KDQQHO
GZ7DUJHW$GGUHVV
GZ7LPH2XW
GZ7[&RE,G
GZ'DWD
Q'DWD
Z'DWD
E\'DWD
E'DWD
GZ&\FOH7LPH
GZ5[&RE,G
E8VH,QGH[
