5 Function blocks
5.69 L_DevLimiterStateDecoder - status signals of the basic function "Limiter"
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

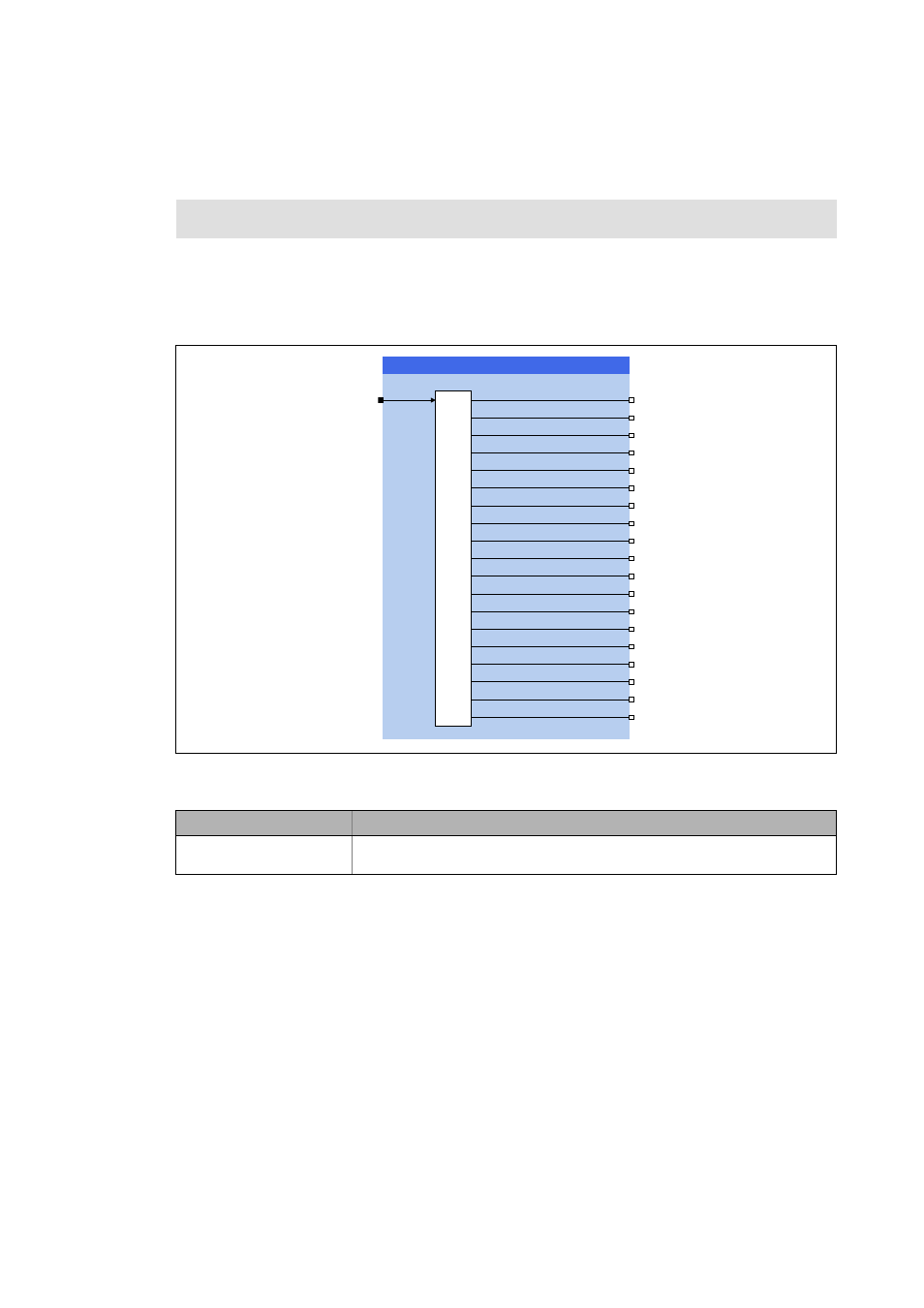

5.69 L_DevLimiterStateDecoder - status signals of the basic function "Limiter"
This FB decodes the status output signal dnState of the SB LS_Limiter into individual boolean status
signals for further use in the FB interconnection.
• The functionality corresponds to a converter "DINTBOOL", but the boolean outputs of this FB
have the same names according to their meaning.
Inputs
Function library: LenzeDevice9400
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dnState
DINT
Input for the bit-coded status signal of the basic function "Limiter".
• Connect this input with the output of the same name of the SB LS_Limiter.
/B'HY/LPLWHU6WDWH'HFRGHU
GQ6WDWH E&LQK)RUFHG
E463)RUFHG
E463)RUFHG
E/LP6SHHG
E/LP6SHHG
E/LP6SHHG
E/LP6SHHG
E/LP1HJ'LU
E/LP3RV'LU
E/LP7LS'LVWDQFH
E/LP6HW3RV
E+:/LPLW3RV
E+:/LPLW1HJ
E/LP6SHHG
/6B/LPLWHUVWDWH
E/LP$FF
E/LP'HF
E6:/LPLW3RV
E6:/LPLW1HJ
E/LP-HUN
