5 Function blocks

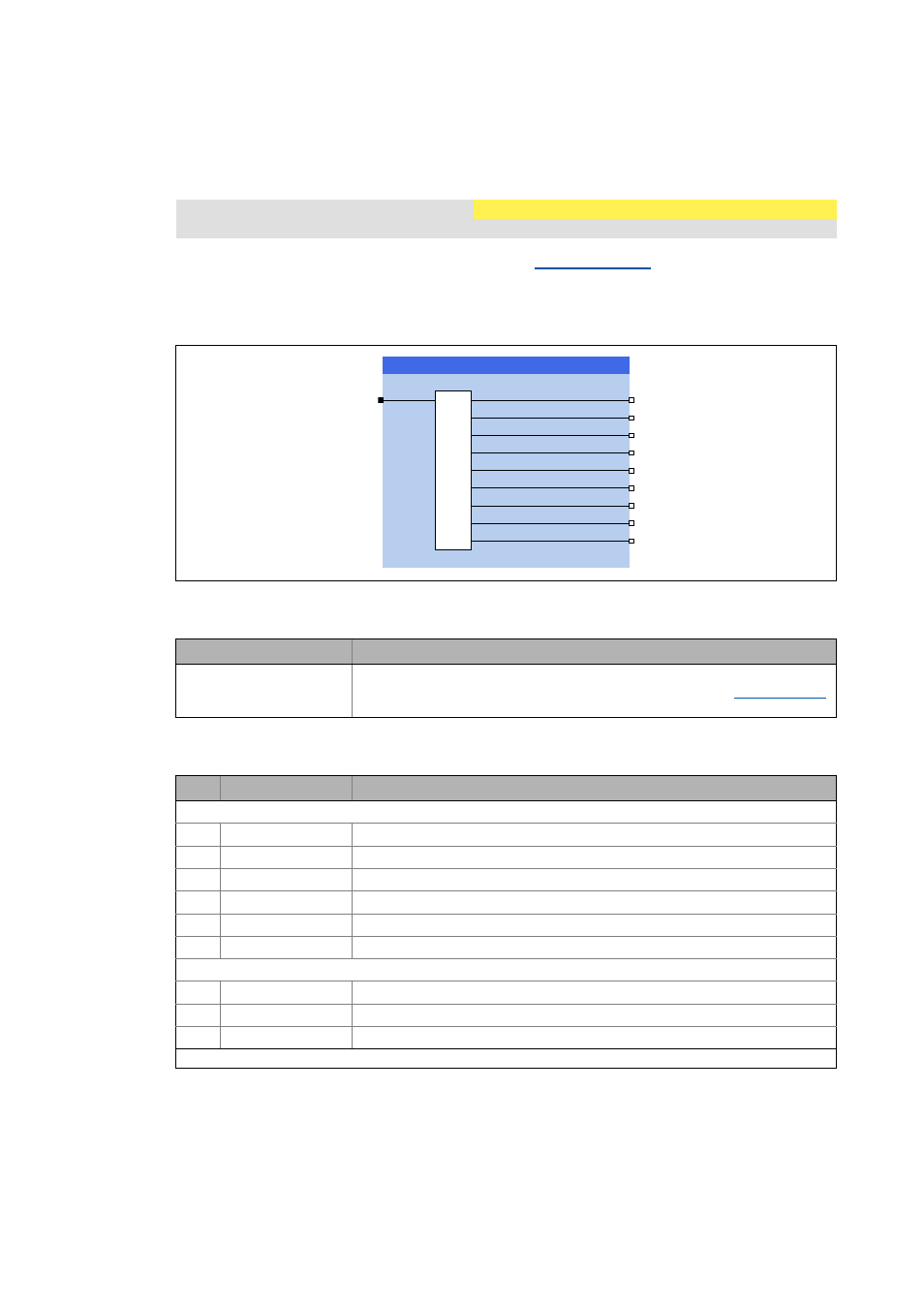

5.115 L_PosSequencerStateDecoder - status signals of the sequence control
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.115 L_PosSequencerStateDecoder - status signals of the sequence control
This FB decodes the status output signal dnState of FB LS_PosSequencer into individual boolean sta-
tus signals for further use in the FB interconnection.
• The functionality corresponds to a converter "DINTBOOL", but the boolean outputs of this FB
have the same names according to their meaning.
Inputs
Outputs
Function library: LenzePositioning FB is available as of library V02.00!
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dnState
DINT
Input for the bit coded status signal of the sequence control.
• Connect this input with the output of the same name of the FB L_PosSequencer .
( 430)
Bit* Identifier Meaning in case of TRUE
Status messages:
16 bReady Positioning program ready to start/program end reached.
17 bRun Positioning program is running.
18 bPause Positioning program is started, pause is active.
19 bBreak Positioning program is stopped.
20 bReset Positioning program is reset.
21 bDone Positioning program is completed.
Error messages:
15 bErrActive Error is active.
22 bWatchDogActive "Watchdog" monitoring function for positioning has been activated.
25 bErrBranch Wrong value at branch input.
* Relating to the input signal dnState.
/B3RV6HTXHQFHU6WDWH'HFRGHU
GQ6WDWH E5HDG\
E5XQ
E3DXVH
E%UHDN
E5HVHW
E(UU$FWLYH
E(UU%UDQFK
6HTXHQFHUVWDWH
E:DWFK'RJ$FWLYH
E'RQH
