5 Function blocks
5.2 L_CamContactor - cam group with switch-on and switch-off dynamisation
138
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

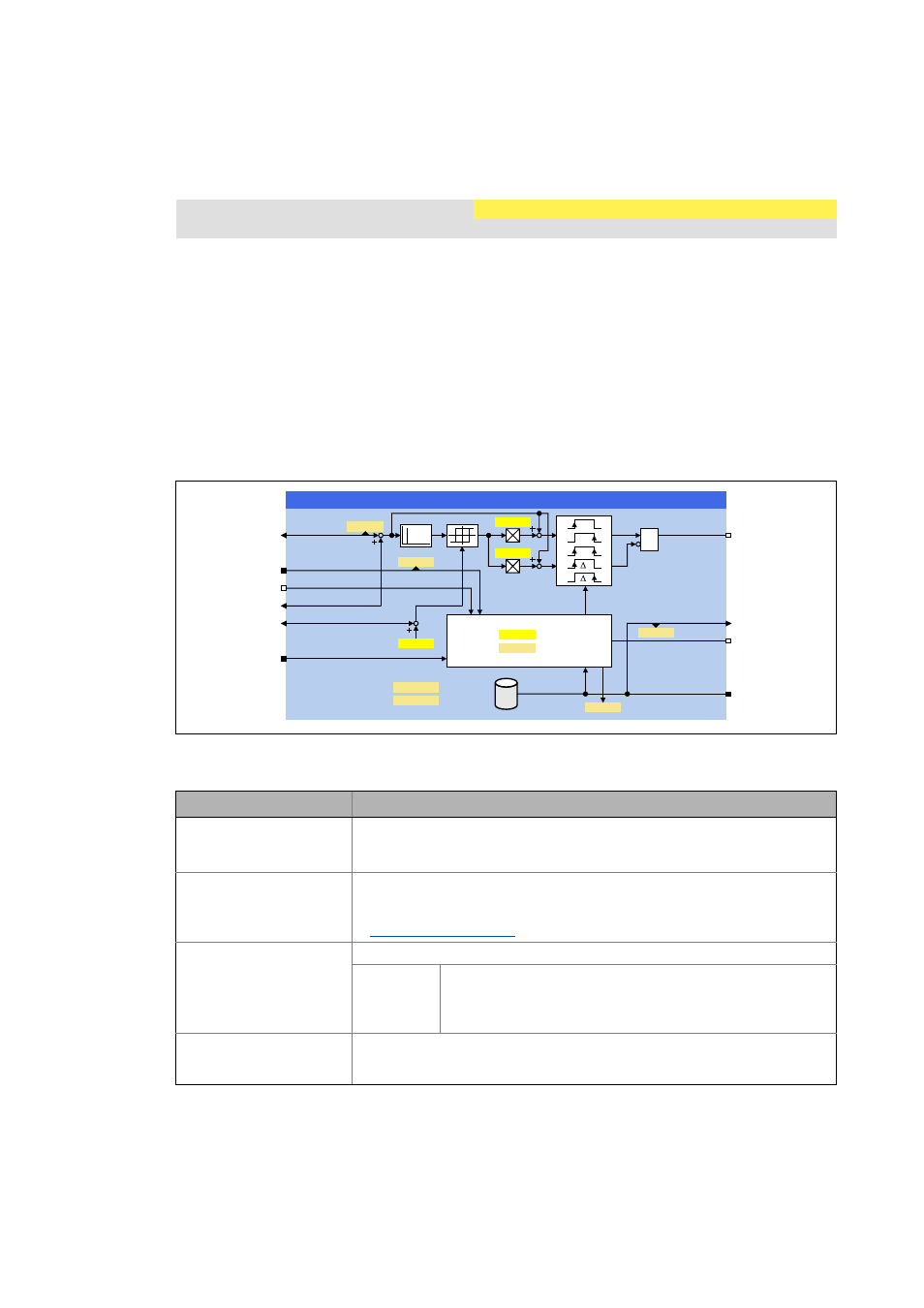

5.2 L_CamContactor - cam group with switch-on and switch-off dynamisation
From the cam data under the current product number (specified by the LS_CamInterface SB), this FB
reads the cam track selected via the input dnTrackNumber and outputs the cam status on the spe-
cified position.
• A cam track can contain up to four cams of the same type (path or time cam); however, the cam
type can be different for each product.
• As of Engineer version 2.9 up to 16 cams per cam track are supported.
• By means of a parameterisable dynamic displacement of the cams, deceleration times of swit-
ching elements connected can be compensated.
• If further cam tracks are to be evaluated, further instances of this FB just have to be added to
the application.
Inputs
Function library: LenzeCam FB permissible for firmware as of V3.0 only!
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dnPosIn_p
DINT
Input position in [increments]
• Position of the x axis or y axis (according to the application).
• C05526 indicates the input position in the real unit of the machine.
dnTrackNumber
DINT
Selection of the cam track of the cam data available in the memory module.
Note: If the ContactorData input is assigned, the contactor data transferred via the
ContactorData input are used.
 Selection of the cam data ( 146)
bReset
BOOL
Reset output signals & operating times
TRUE The outputs bOut and bError are reset to FALSE.
• In the case of time cams, a time that has possibly started is reset.
The "Cam ON" status is only output again if the switch-on condi-
tion has been met again.
dnOffsetPos_p
DINT
From library V01.02.xx.xx
Offset in [inc]
• For position-dependent offset of the cam track.
E2XW GQ3RV,QBS
GQ7UDFN1XPEHU
/B&DP&RQWDFWRU
E(UURU
&
&
&
& 6WDWH
&
W
W
$[LV'DWD &DPGDWD
& $[LVQDPH
& 8QLW
&75/
E5HVHW
&
& &RQWDFWRUW\SH 7UDFNPRGH
GQ&\FOH/HQJWKBS
&
&RQWDFWRU'DWD
GQ2IIVHW3RVBS
GQ+\VWHUHVHBS
&
