5 Function blocks
5.94 L_LdPosCtrlLin - Master value adjustment via position
346
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.94.2 Interconnection examples
5.94.2.1 Printing roller trimming via x offset
In many cases, an angular trimming of the slave drive to the master position is required. Usually, this
angular trimming is executed via an x offset. This x offset virtually trims the master value and thus
aligns the following axis correctly to the process.

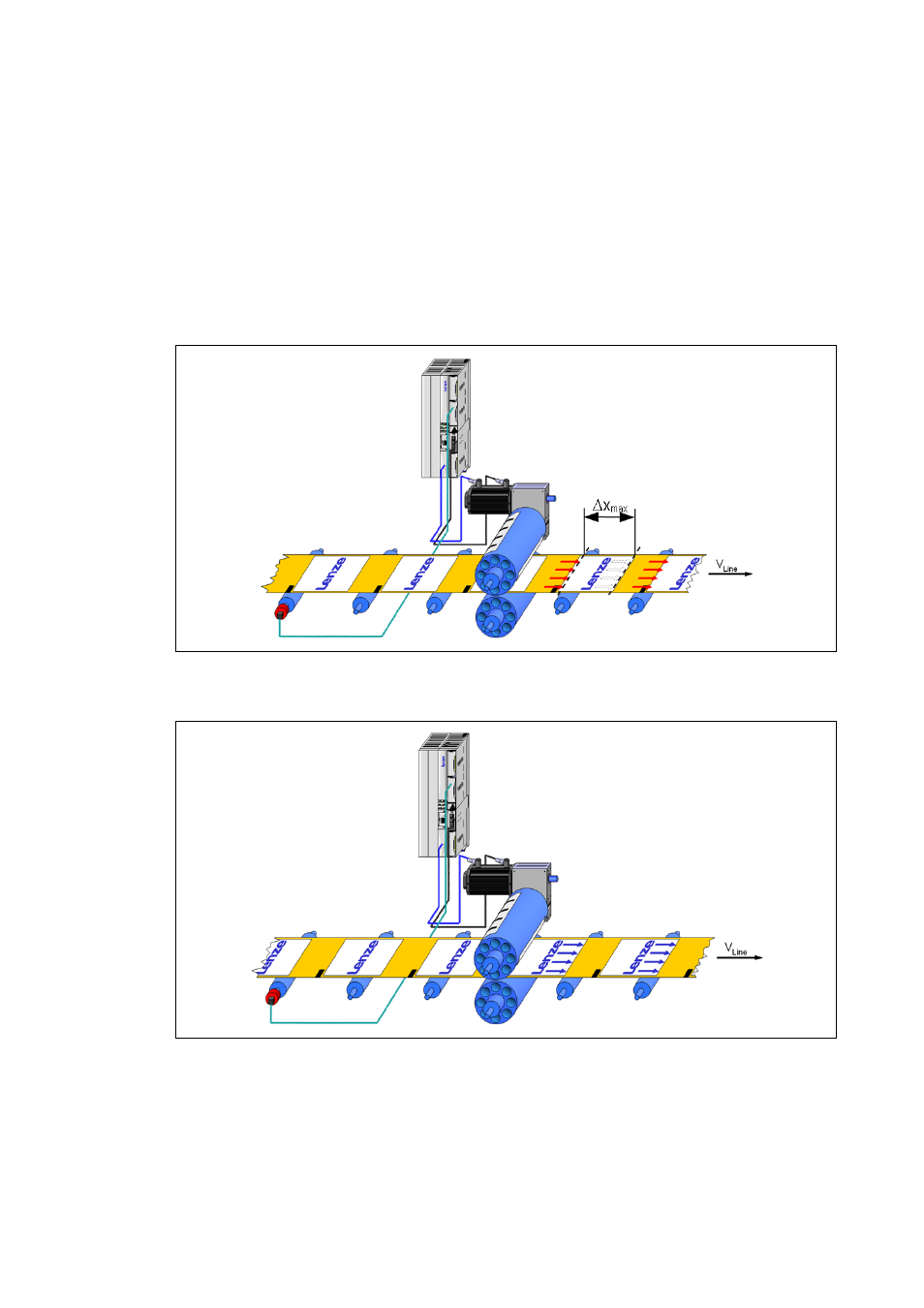

• The following illustration (without x offset) shows the "arrows" print image shifted by Δx
max
compared to the wanted position.
[5-51] Printing roller without angular trimming via x offset
• When x offset is used, the "arrows" print image is on the correct position:
[5-52] Printing roller with angular trimming via x offset
