Page 430: 5function blocks

Function blocks

5.114

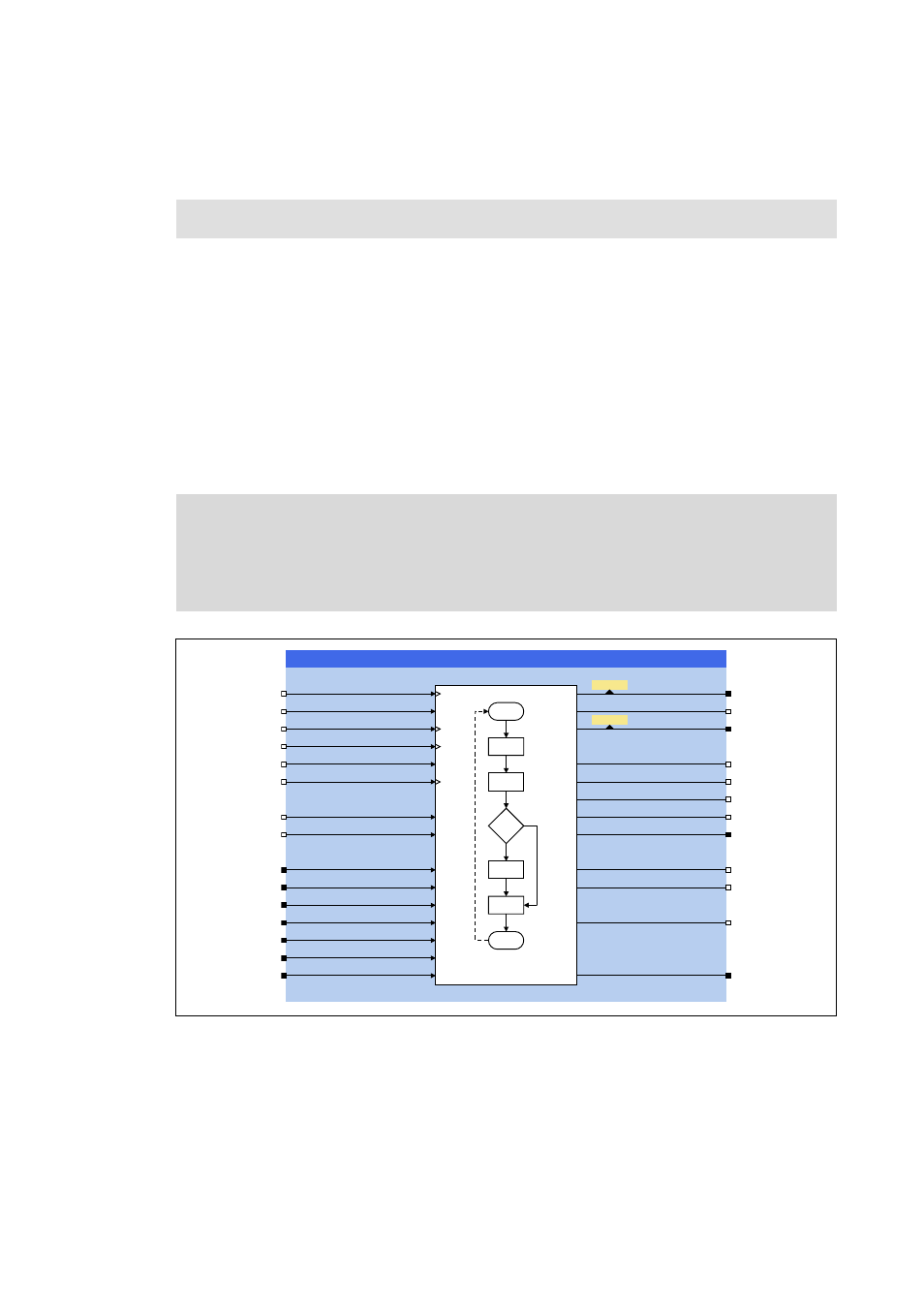

L_PosSequencer - sequence control

430

Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

5.114

L_PosSequencer - sequence control

This FB processes a positioning program based on a sequence table.

• The sequence table is an important part of this FB and is indicated by a code with 100 subcodes.

Each subcode contains a reference to a single program segment, also known as "action".

• Different action types are available which serve to implement, for instance, program branching,

switching operations, waiting times and counters. The actions themselves are also indicated by

codes.

• The following action types are passive: Branching, variable branching, switching, counter set-

ting, counting, waiting, standby, and program end. When these action types are processed,

the deceleration ramp is active and a brake, if available, will be applied.

• The action types positioning and homing are active since these both action types trigger the

execution of the corresponding basic function via control outputs.

Function library:

LenzePositioning

Runtime software licence:



Motion Control HighLevel



Motion Control TopLevel



Note!

For a complete sequence control, the FB L_PosSequencer must be connected to further

blocks, like the FB L_PosPositionerTable (profile data record management) and the

SB LS_Positioner (basic function "positioning").

/B3RV6HTXHQFHU

E6WDUW

E3DXVH

E5HVHW

E%UHDN

E&DQFHO

E3URILOH'RQH

E+RPLQJ'RQH

GZ6WDUW6WHS

GZ%UDQFK

GZ'LJLWDO,QSXWV

GZ%UDQFK

GQ6WDWH

E(QDEOH3RVLWLRQHU

E$FWLYDWH+RPLQJ

E5HVWDUW3URILOH

E3URJUDP%XV\

E(QDEOH)ROORZHU

GZ$FW6WHS

GZ3URILOH1XPEHU

GZ'LJLWDO2XWSXWV

E$ERUW3URILOH

E6WDUW3URILOH

E(QDEOH+RPLQJ

E1H[W6WHS
