5 Function blocks
5.130 L_SdMotorPot - motor potentiometer
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Example: Leading the output value to 0 % at deactivation

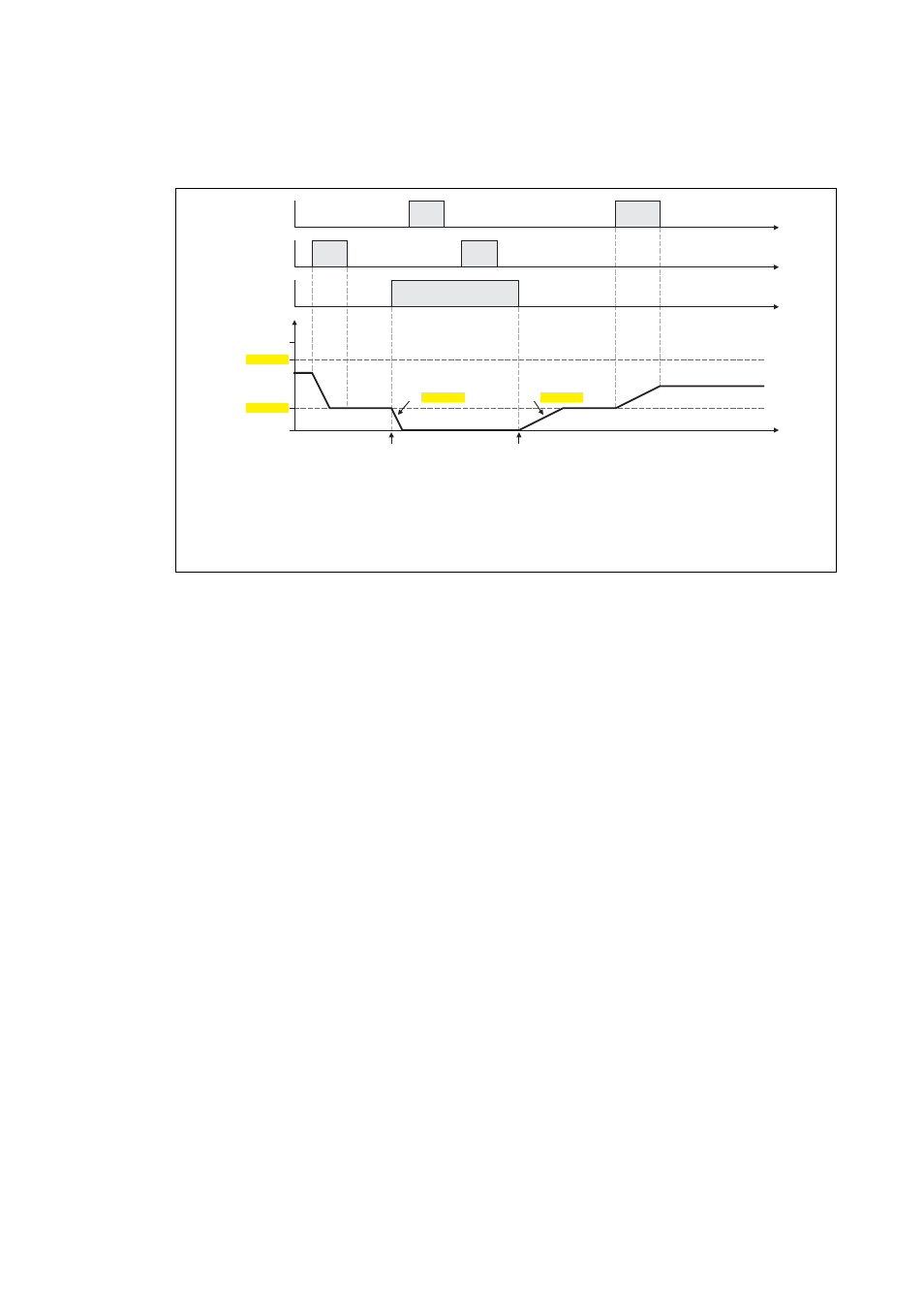

[5-102] Example: signal characteristics at deactivation function C04362 = 1
A. By setting the control input bDisable to TRUE, the motor potentiometer function is deactivated.
• When the deactivation function C04362 = 1 is set, dnOut_n is decreased to 0 % under consi-
deration of the deceleration time.
B. By resetting the control input bDisable to FALSE, the motor potentiometer function is reactiva-
ted.
• As the lower limit value in the example is set greater 0 % and hence dnOut_n is beyond the
limit values, dnOut_n is first lead back to the lower limit value by means of the acceleration
time.
 Motor potentiometer function is deactivated
 Motor potentiometer function is reactivated
 C04360/1: upper limit value
 C04360/2: lower limit value
 C04361/2: deceleration time
 C04361/1: acceleration time
bDisable
dnOut_n
t
t
Œ

bDown
t
bUp
t
+200 %
0 %
C04360/1
C04360/2
C04361/2 C04361/1
Ž 
0 1
