5 Function blocks
5.136 L_SdSetAxisData - machine parameters
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.136.2 Selection and input of machine parameters
The following table lists absolutely necessary machine parameters:

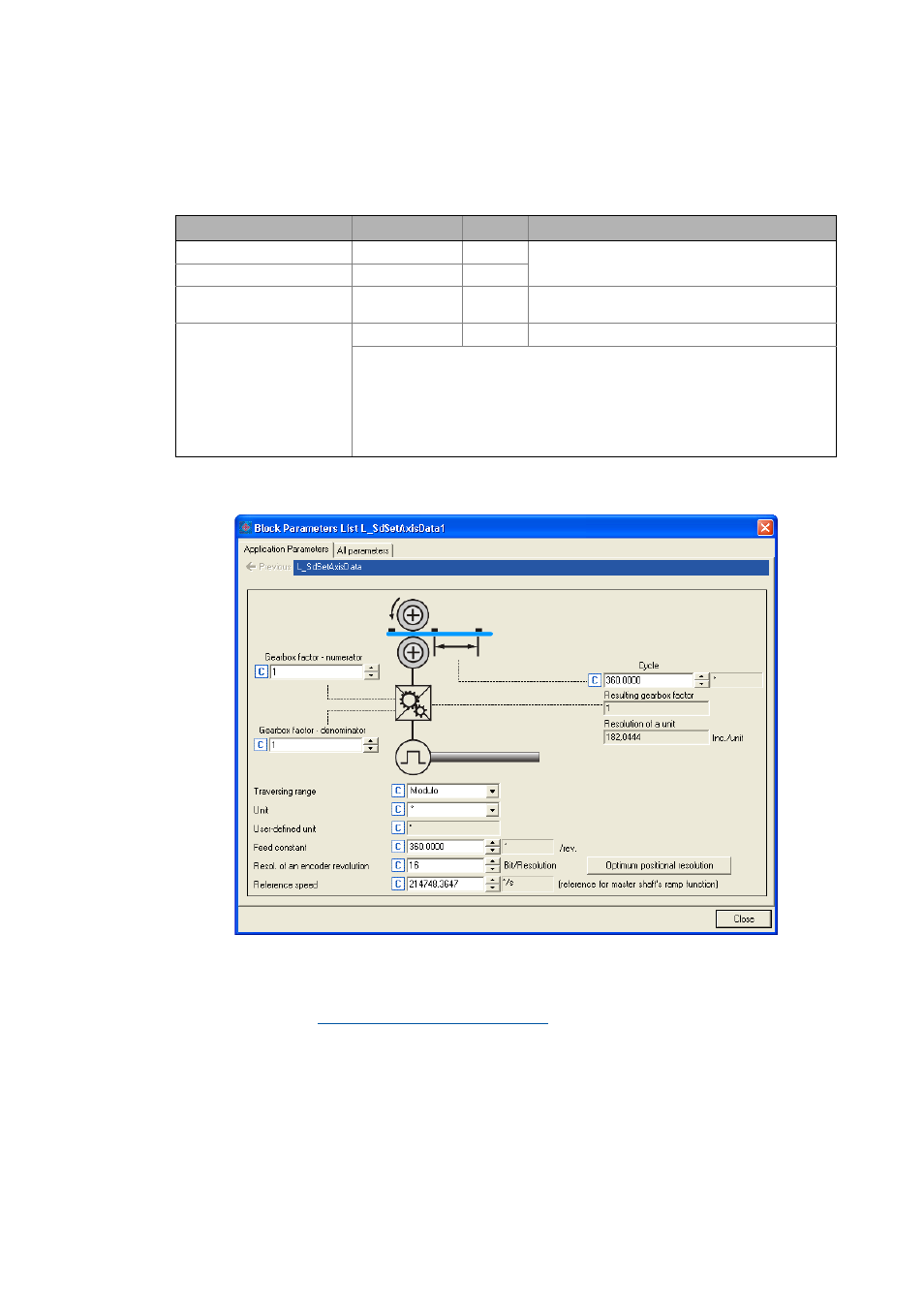

The machine parameters can be easily entered via the parameterisation dialog of the FB
L_SdSetAxisData.

Tip!
The way how to detect the optimum resolution of the position values is described in the
subchapter " Detecting the optimum resolution ". ( 516)
Machine parameters Setting Unit Information
Gearbox ratio - numerator C04240 - Input according to the gearbox nameplate.
Gearbox ratio - denominator C04241 -
Feed constant (F
c
) C04242 Unit Enter the number in [unit] (e.g. [mm]), which is to be
fed when the gearbox output revolves once.
Reference speed (v
max
) C04251 Unit/t This limit applies to the entire machine.
Caution: The limit must be set in a way that it can be reached with max. motor
speed:
V
max
n
max
Feed constant
60
------------------------------------ gearbox (denominator)
gearbox (numerator)
------------------------------------------------------------ ⋅ ⋅ ≤
dwVmax C00011 C04242
60
-------------------- C04240
C04241
-------------------- ⋅ ⋅ ≤
