5 Function blocks

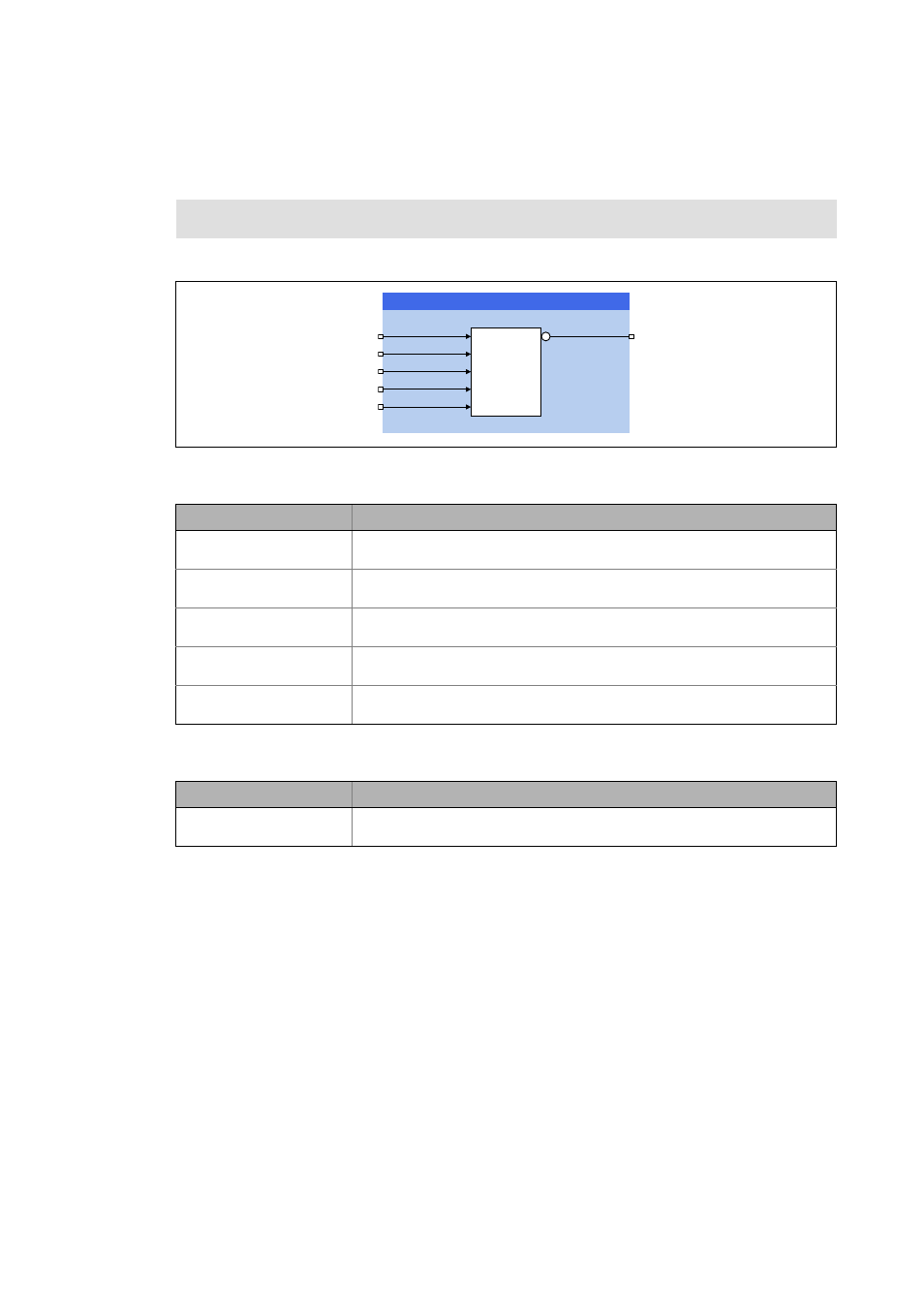

5.148 L_Tb5Nand - NAND with 5 inputs
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.148 L_Tb5Nand - NAND with 5 inputs
This FB carries out a logic NAND operation of binary signals.
Inputs
Outputs

Tip!
If you want to combine less than five signals, set the unused inputs to TRUE or assign seve-
ral inputs to the same signal.
Function library: LenzeToolbox
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
bIn1
BOOL
Input 1
bIn2
BOOL
Input 2
bIn3
BOOL
Input 3
bIn4
BOOL
Input 4
bIn5
BOOL
Input 5
Identifier/data type Value/meaning
bOut
BOOL
Result of the NAND operation
E2XW E,Q
E,Q
E,Q
E,Q
E,Q
/B7E1DQG
