5.90 L_LdLinearCoupling - master value connection
326
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.90.1 Interconnection example

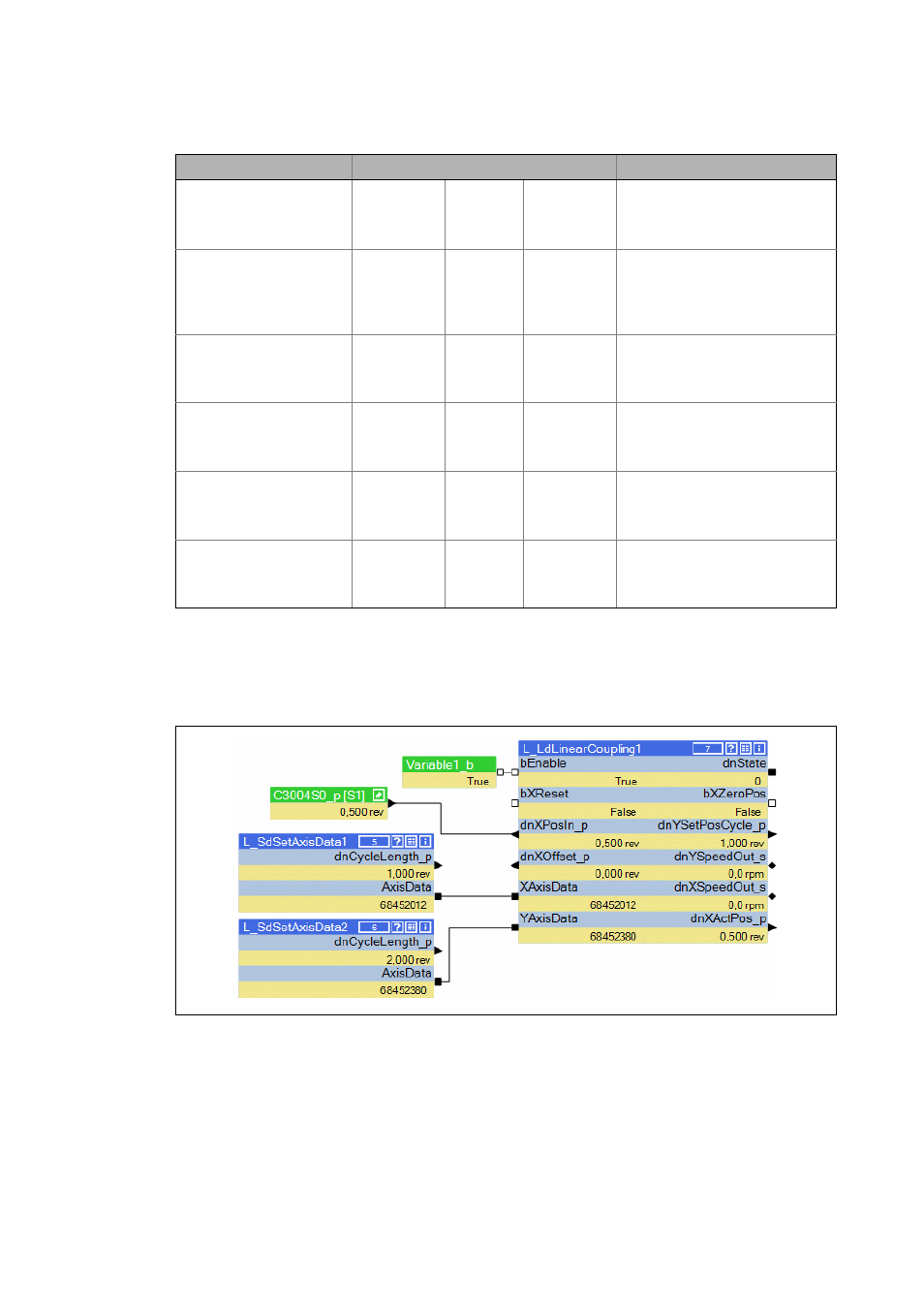

[5-47] Interconnection example
C05183 -214748.3647 Unit/t 214748.3647 Speed X at the output
• Read only
• Calculated from the speed signal
dnXSpeedOut_s.
C05184 -214748.3647 Unit/t 214748.3647 Speed Y at the output
• Read only
• Calculated from the speed signal
dnYSpeedOut
_s.
C05186 -214748.3647 Unit 214748.3647 Position X at the input
• Display of the dnXPosIn_p input
signal in the real unit of the ma-
chine.
C05187 -214748.3647 Unit 214748.3647 Trimming X
• Display of the dnXOffset_p input
signal in the real unit of the ma-
chine.
C05188 -214748.3647 Unit 214748.3647 Position X at the output
• Display of the output signal
dnXActPos_p in the real unit of the
machine.
C05189 -214748.3647 Unit 214748.3647 Position Y at the output
• Display of the output signal
dnYSetPosCycle_p in the real unit
of the machine.
Parameter Possible settings Information
