5 Function blocks
5.130 L_SdMotorPot - motor potentiometer
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.130.3 Signal characteristics

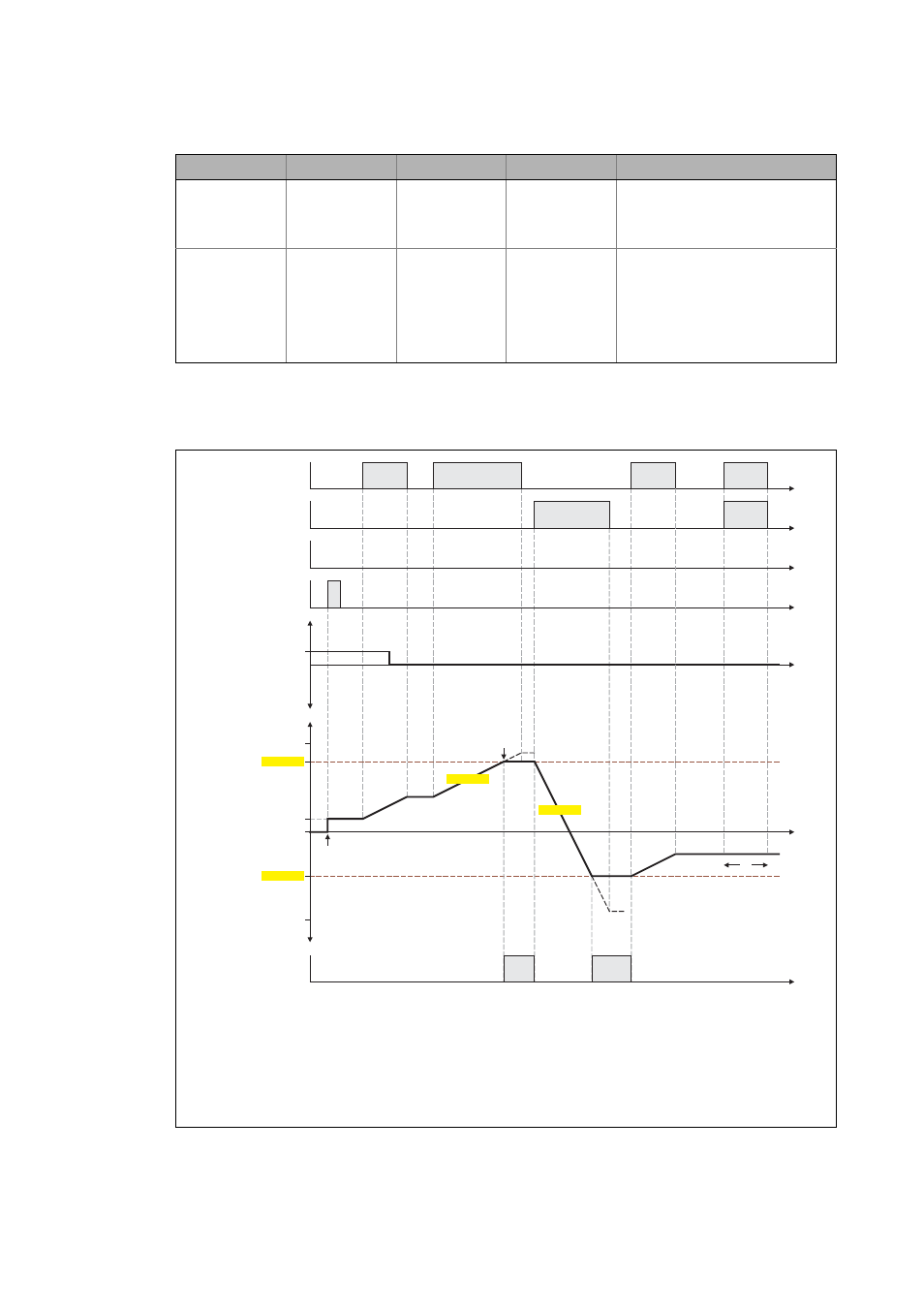

[5-101] Signal characteristics
- - TRUE FALSE Deactivate motor potentiometer
function
dnOut_n behaves according to the
deactivation function set in C04362.
- - - TRUE Load starting value
dnOut_n is set to the value pending
at input dnStartValue_n.
• If the starting value is beyond the
limit values parameterised, the
output value dnOut_n is set to the
corresponding limit value.
bUp bDown bDisable bLoadStartValue Function
 Starting value is loaded
 Output value is limited
 Output value remains unchanged, as bUp and bDown are set to TRUE at the same time.
 C04360/1: upper limit value
 C04360/2: lower limit value
 C04361/1: acceleration time
 C04361/2: deceleration time
bDisable
dnStartValue_n
dnOut_n
t
t
t
Œ

bLoadStartValue
t
bDown
t
bUp
t
+200 %
-200 %
0 %
C04360/1
C04360/2
0 %
+30 %
+30 %
bLimit
t
C04361/1
C04361/2
0
1
Ž 
2
