5 Function blocks
5.210 L_WndTensionCurve - tensile force characteristic
654
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.210.1.2 Characteristic for a linear course of the torque

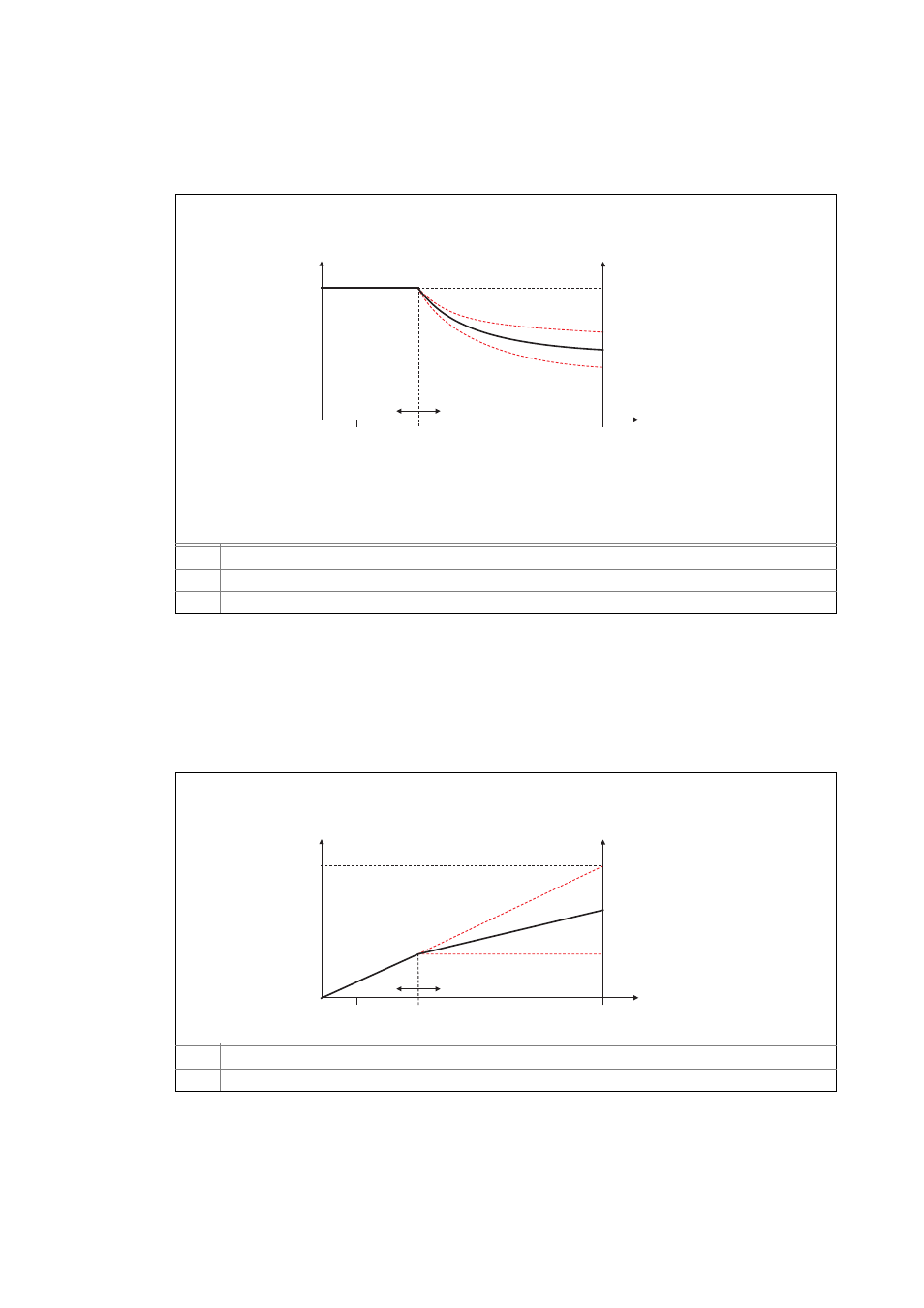

[5-159] Characteristic for a linear course of the torque (dwSelectCurve = 1)
• Via dnD0_n you define the diameter at which the reduction of the tensile force is to start.
• Since this characteristic selection focuses on the linear course of the torque, in this case you de-
fine the steepness of the torque curve via dnCurveCtrl_n:
• At dnCurveCtrl_n = 100 % the tensile force remains unchanged.
• At dnCurveCtrl_n = 0 % the tensile force is reduced to D0/DMax.
Characteristic

Tensile force
 Diameter
Function for D > D0:
D Current diameter (dnDiameter_n)
D0 Starting point for diameter dependency (dnD0_n)
HW Evaluation of tensile force (dnCurveCtrl_n)
Œ

DMin
(DMax)
D0 100 %
100 %
0 %
100 %
dnCurveCtrl_n = 0 %
HW
HW
100 % HW
–
( ) D0 ⋅
D
------------------------------------------------ +
Characteristic

Torque
 Diameter
D Current diameter (dnDiameter_n)
D0 Starting point for diameter dependency (dnD0_n)
Œ

DMin
(DMax)
D0 100 %
100 %
0 %
100 %
dnCurveCtrl_n
0 %
50 %
