5 Function blocks
5.193 L_TbPIController - PI controller with limitation
614
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Parameter
Function
The FB contains the calculation of the system deviation and the PI controller.
• The dynamics of the controller is parameterised according to the gain V
p
(C04090) and the reset
time T
n
(C04091):

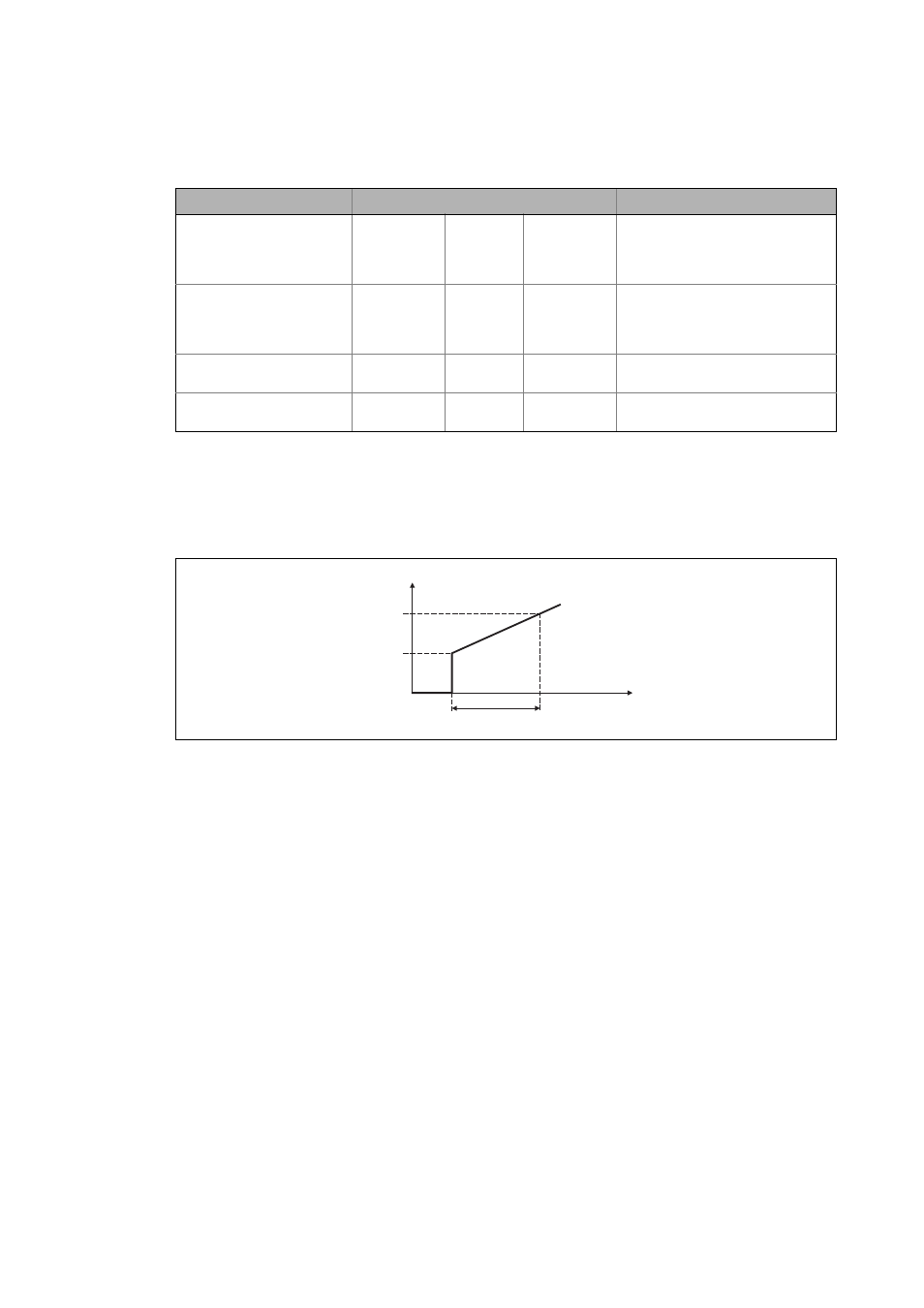

[5-147] Step response of the controller
• By setting bReset to TRUE the controller is reset (P and I component).
• The I component of the controller can be set via the inputs bLoadIntValue and dnIntValue.
• This function is also active when the controller is reset via the input bReset, i.e. the integral
action component is loaded while a zero is output to the output. This provides the opportu-
nity to reset the controller with a signal and simultaneously initialise the integral action com-
ponent for the following enable:
• The correcting variable of the controller is automatically limited to the range ±2 31 -1 (±200 %).
• If a small setting range is required, the positive and negative output limit value can be set in-
dividually via C04095 and C04096.
• When the controller reaches the output limitation, the P component has priority over the I
component.
Parameter Possible settings Information
C04090 0.0000 214748.3647 Controller gain
• Setting 0.0000 resets the PI cont-
roller.
• Initialisation: 1.0000
C04091 0.001 s 1000.000 Controller reset time
• Setting 1000.000 resets the PI
controller.
• Initialisation: 1.000 s
C04095 0.00 % 200.00 Positive output limit value
• Initialisation: 200.00 %
C04096 -200.00 % 0.00 Negative output limit value
• Initialisation: -200.00 %
dnOut
t
P
T
n
2 V
P
V
